gursoy_atun_layout

Synopsis

// Non-named parameter version
template<typename VertexListAndIncidenceGraph,  typename Topology,
	 typename PositionMap, typename VertexIndexMap,
         typename EdgeWeightMap>
void
gursoy_atun_layout(const VertexListAndIncidenceGraph& g,
                   const Topology& space,
		   PositionMap position,
		   int nsteps = num_vertices(g),
		   double diameter_initial = sqrt((double)num_vertices(g)),
		   double diameter_final = 1,
		   double learning_constant_initial = 0.8,
		   double learning_constant_final = 0.2,
		   VertexIndexMap vertex_index_map = get(vertex_index, g),
                   EdgeWeightMap weight = dummy_property_map());

// Named parameter version
template<typename VertexListAndIncidenceGraph, typename Topology,
         typename PositionMap, typename P, typename T, typename R>
void
gursoy_atun_layout(const VertexListAndIncidenceGraph& g,
                   const Topology& space,
                   PositionMap position,
                   const bgl_named_params<P,T,R>& params = all defaults);

Description

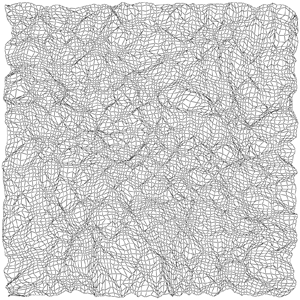

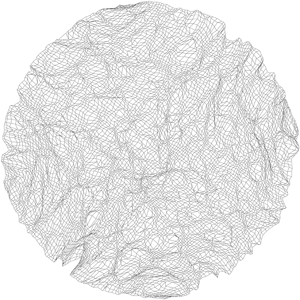

This algorithm [60] performs layout of directed graphs, either weighted or unweighted. This algorithm is very different from the Kamada-Kawai and Fruchterman-Reingold algorithms, because it does not explicitly strive to layout graphs in a visually pleasing manner. Instead, it attempts to distribute the vertices uniformly within a topology (e.g., rectangle, sphere, heart shape), keeping vertices close to their neighbors; various topologies are provided by BGL, and users can also create their own. The algorithm itself is based on Self-Organizing Maps.

Where Defined

Parameters

The graph object on which the algorithm will be applied. The type Graph must be a model of Vertex List Graph and Incidence Graph.

The topology on which the graph will be laid out. The type must model the Topology concept.

The property map that stores the position of each vertex. The type PositionMap must be a model of Lvalue Property Map such that the vertex descriptor type of Graph is convertible to its key type. Its value type must be Topology::point_type.

The number of iterations to perform.
Default: num_vertices(g)

When a vertex is selected to be updated, all vertices that are reachable from that vertex within a certain diameter (in graph terms) will also be updated. This diameter begins at diameter_initial in the first iteration and ends at diameter_final in the last iteration, progressing exponentially. Generally the diameter decreases, in a manner similar to the cooling schedule in Fruchterman-Reingold. The diameter should typically decrease in later iterations, so this value should not be less than diameter_final.
Default: sqrt((double)num_vertices(g))

The final value of the diameter.
Default: 1.0

The learning rate affects how far vertices can moved to rearrange themselves in a given iteration. The learning rate progresses linearly from the initial value to the final value, both of which should be between 0 and 1. The learning rate should typically decrease, so the initial value should not exceed the final value.
Default: 0.8

The final learning rate constant.
Default: 0.2

This maps each vertex to an integer in the range [0, num_vertices(g)). This is only necessary when no displacement map is provided. The type VertexIndexMap must be a model of Readable Property Map. The value type of the map must be an integer type. The vertex descriptor type of the graph needs to be usable as the key type of the map.
Default: get(vertex_index, g) Note: if you use this default, make sure your graph has an internal vertex_index property. For example, adjacency_list with VertexList=listS does not have an internal vertex_index property.

This maps each edge to a weight. The type EdgeWeightMap must be a model of Readable Property Map. The value type of the map must be an floating-point type compatible with double. The edge descriptor type of the graph needs to be usable as the key type of the map. When this map is a dummy_property_map, the algorithm assumes the graph is unweighted.
Default: dummy_property_map()

Named Parameters

Executes the algorithm for n iterations.
Default: num_vertices(g)

Range specifying the parameters (diameter_initial, diameter_final).
Default: std::make_pair(sqrt((double)num_vertices(g)), 1.0)

Range specifying the parameters (learning_constant_initial, learning_constant_final).
Default: std::make_pair(0.8, 0.2)

Equivalent to the non-named weight parameter.
Default: dummy_property_map()

Equivalent to the non-named vertex_index_map parameter.
Default: get(vertex_index, g) Note: if you use this default, make sure your graph has an internal vertex_index property. For example, adjacency_list with VertexList=listS does not have an internal vertex_index property.
