Customizing Charts

Note: This is part of the Charts with Widgets Gallery example.

We begin by creating a simple line series and a chart object.

 auto series = new QLineSeries;
 *series << QPointF(0, 6) << QPointF(9, 4) << QPointF(15, 20) << QPointF(25, 12) << QPointF(29, 26);
 auto chart = new QChart;
 chart->legend()->hide();
 chart->addSeries(series);

First we customize the series and the chart's title and background.

 // Customize series
 QPen pen(QRgb(0xfdb157));
 pen.setWidth(5);
 series->setPen(pen);

 // Customize chart title
 QFont font;
 font.setPixelSize(18);
 chart->setTitleFont(font);
 chart->setTitleBrush(QBrush(Qt::white));
 chart->setTitle("Custom Chart");

 // Customize chart background
 QLinearGradient backgroundGradient;
 backgroundGradient.setStart(QPointF(0, 0));
 backgroundGradient.setFinalStop(QPointF(0, 1));
 backgroundGradient.setColorAt(0.0, QRgb(0xd2d0d1));
 backgroundGradient.setColorAt(1.0, QRgb(0x4c4547));
 backgroundGradient.setCoordinateMode(QGradient::ObjectBoundingMode);
 chart->setBackgroundBrush(backgroundGradient);

 // Customize plot area background
 QLinearGradient plotAreaGradient;
 plotAreaGradient.setStart(QPointF(0, 1));
 plotAreaGradient.setFinalStop(QPointF(1, 0));
 plotAreaGradient.setColorAt(0.0, QRgb(0x555555));
 plotAreaGradient.setColorAt(1.0, QRgb(0x55aa55));
 plotAreaGradient.setCoordinateMode(QGradient::ObjectBoundingMode);
 chart->setPlotAreaBackgroundBrush(plotAreaGradient);
 chart->setPlotAreaBackgroundVisible(true);

Then we customize the axes.

 auto axisX = new QCategoryAxis;
 auto axisY = new QCategoryAxis;

 // Customize axis label font
 QFont labelsFont;
 labelsFont.setPixelSize(12);
 axisX->setLabelsFont(labelsFont);
 axisY->setLabelsFont(labelsFont);

 // Customize axis colors
 QPen axisPen(QRgb(0xd18952));
 axisPen.setWidth(2);
 axisX->setLinePen(axisPen);
 axisY->setLinePen(axisPen);

 // Customize axis label colors
 QBrush axisBrush(Qt::white);
 axisX->setLabelsBrush(axisBrush);
 axisY->setLabelsBrush(axisBrush);

 // Customize grid lines and shades
 axisX->setGridLineVisible(false);
 axisY->setGridLineVisible(false);
 axisY->setShadesPen(Qt::NoPen);
 axisY->setShadesBrush(QBrush(QColor(0x99, 0xcc, 0xcc, 0x55)));
 axisY->setShadesVisible(true);

Then the axis label values and ranges. Once the axes are ready, we set them to be used by the chart.

 axisX->append("low", 10);
 axisX->append("optimal", 20);
 axisX->append("high", 30);
 axisX->setRange(0, 30);

 axisY->append("slow", 10);
 axisY->append("med", 20);
 axisY->append("fast", 30);
 axisY->setRange(0, 30);

 chart->addAxis(axisX, Qt::AlignBottom);
 chart->addAxis(axisY, Qt::AlignLeft);
 series->attachAxis(axisX);
 series->attachAxis(axisY);

Finally, we create a view containing the chart.

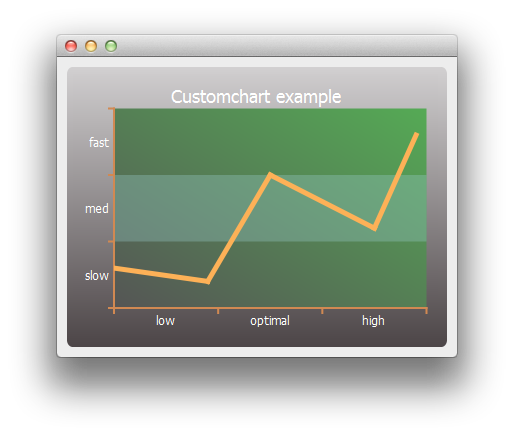

 createDefaultChartView(chart);

Now we are ready to show the chart on a main window.
