Creating a Donut Breakdown Chart

Note: This is part of the Charts with Widgets Gallery example.

Creating Donut Breakdown Charts

Let's start by defining some data for the chart.

 // Graph is based on data of 'Total consumption of energy increased by 10 per cent in 2010'
 // Statistics Finland, 13 December 2011
 // http://www.stat.fi/til/ekul/2010/ekul_2010_2011-12-13_tie_001_en.html

 auto series1 = new QPieSeries;
 series1->setName("Fossil fuels");
 series1->append("Oil", 353295);
 series1->append("Coal", 188500);
 series1->append("Natural gas", 148680);
 series1->append("Peat", 94545);

 auto series2 = new QPieSeries;
 series2->setName("Renewables");
 series2->append("Wood fuels", 319663);
 series2->append("Hydro power", 45875);
 series2->append("Wind power", 1060);

 auto series3 = new QPieSeries;
 series3->setName("Others");
 series3->append("Nuclear energy", 238789);
 series3->append("Import energy", 37802);
 series3->append("Other", 32441);

Then we create a chart where we add the data. Note that this is our own chart derived from QChart.

 auto donutBreakdown = new DonutBreakdownChart;
 donutBreakdown->setAnimationOptions(QChart::AllAnimations);

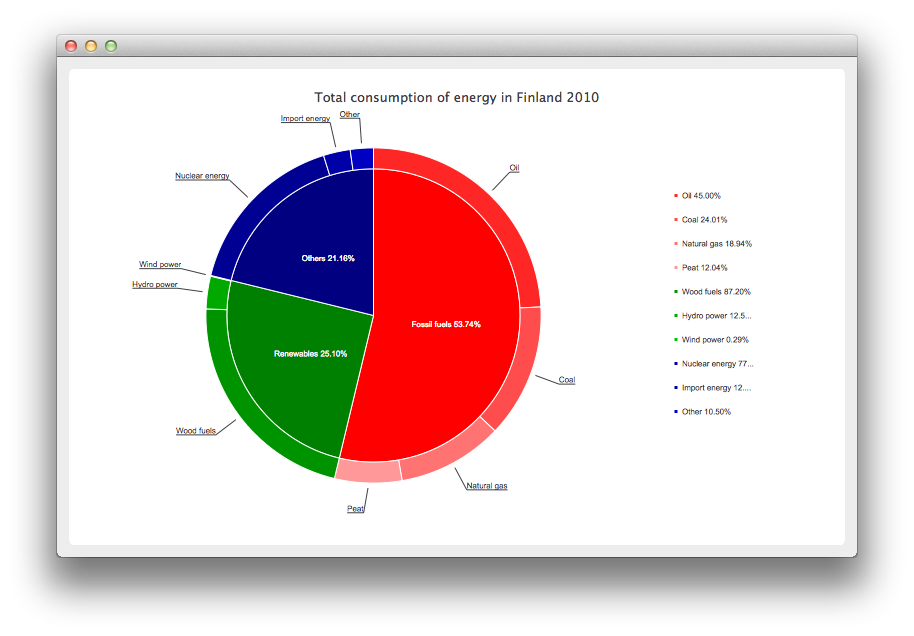

 donutBreakdown->setTitle("Total consumption of energy in Finland 2010");
 donutBreakdown->legend()->setAlignment(Qt::AlignRight);
 donutBreakdown->addBreakdownSeries(series1, Qt::red);
 donutBreakdown->addBreakdownSeries(series2, Qt::darkGreen);
 donutBreakdown->addBreakdownSeries(series3, Qt::darkBlue);

Our own chart works in such a way that we create a main series in the constructor we create a main series, which aggregates the data provided by the breakdown series. This is the piechart in the center.

 DonutBreakdownChart::DonutBreakdownChart(QGraphicsItem *parent, Qt::WindowFlags wFlags)
     : QChart(QChart::ChartTypeCartesian, parent, wFlags)
 {
     // create the series for main center pie
     m_mainSeries = new QPieSeries;
     m_mainSeries->setPieSize(0.7);
     QChart::addSeries(m_mainSeries);
 }

When a breakdown series is added the data is used to create a slice in the main series and the breakdown series itself is used to create a segment of a donut positioned so that it is aligned with the corresponding slice in the main series.

 void DonutBreakdownChart::addBreakdownSeries(QPieSeries *breakdownSeries, QColor color)
 {
     QFont font("Arial", 8);

     // add breakdown series as a slice to center pie
     auto mainSlice = new DonutBreakdownMainSlice(breakdownSeries);
     mainSlice->setName(breakdownSeries->name());
     mainSlice->setValue(breakdownSeries->sum());
     m_mainSeries->append(mainSlice);

     // customize the slice
     mainSlice->setBrush(color);
     mainSlice->setLabelVisible();
     mainSlice->setLabelColor(Qt::white);
     mainSlice->setLabelPosition(QPieSlice::LabelInsideHorizontal);
     mainSlice->setLabelFont(font);

     // position and customize the breakdown series
     breakdownSeries->setPieSize(0.8);
     breakdownSeries->setHoleSize(0.7);
     breakdownSeries->setLabelsVisible();
     const auto slices = breakdownSeries->slices();
     for (QPieSlice *slice : slices) {
         color = color.lighter(115);
         slice->setBrush(color);
         slice->setLabelFont(font);
     }

     // add the series to the chart
     QChart::addSeries(breakdownSeries);

     // recalculate breakdown donut segments
     recalculateAngles();

     // update customize legend markers
     updateLegendMarkers();
 }

Here's how the start and end angles for the donut segments are calculated.

 void DonutBreakdownChart::recalculateAngles()
 {
     qreal angle = 0;
     const auto slices = m_mainSeries->slices();
     for (QPieSlice *slice : slices) {
         QPieSeries *breakdownSeries = qobject_cast<DonutBreakdownMainSlice *>(slice)->breakdownSeries();
         breakdownSeries->setPieStartAngle(angle);
         angle += slice->percentage() * 360.0; // full pie is 360.0
         breakdownSeries->setPieEndAngle(angle);
     }
 }

The legend markers are customized to show the breakdown percentage. The markers for the main level slices are hidden.

 void DonutBreakdownChart::updateLegendMarkers()
 {
     // go through all markers
     const auto allseries = series();
     for (QAbstractSeries *series : allseries) {
         const auto markers = legend()->markers(series);
         for (QLegendMarker *marker : markers) {
             auto pieMarker = qobject_cast<QPieLegendMarker *>(marker);
             if (series == m_mainSeries) {
                 // hide markers from main series
                 pieMarker->setVisible(false);
             } else {
                 // modify markers from breakdown series
                 pieMarker->setLabel(QString("%1 %2%")
                                     .arg(pieMarker->slice()->label())
                                     .arg(pieMarker->slice()->percentage() * 100, 0, 'f', 2));
                 pieMarker->setFont(QFont("Arial", 8));
             }
         }
     }
 }

Instead the main level slices show the percentage on the label.

 DonutBreakdownMainSlice::DonutBreakdownMainSlice(QPieSeries *breakdownSeries, QObject *parent)
     : QPieSlice(parent),
       m_breakdownSeries(breakdownSeries)
 {
     connect(this, &DonutBreakdownMainSlice::percentageChanged,
             this, &DonutBreakdownMainSlice::updateLabel);
 }
     ...
 void DonutBreakdownMainSlice::updateLabel()
 {
     setLabel(QString("%1 %2%").arg(m_name).arg(percentage() * 100, 0, 'f', 2));
 }

Now that we have our chart defined, we can finally create a QChartView and show the chart.

 createDefaultChartView(donutBreakdown);
