Using Polar Charts with QML

Note: This is part of the Charts with QML Gallery example.

We begin with a chart that has a spline series and a scatter series with random data. Both series use the same axes.

 PolarChartView {
     title: "Two Series, Common Axes"
     anchors.fill: parent
     legend.visible: false
     antialiasing: true

     ValueAxis {
         id: axisAngular
         min: 0
         max: 20
         tickCount: 9
     }

     ValueAxis {
         id: axisRadial
         min: -0.5
         max: 1.5
     }

     SplineSeries {
         id: series1
         axisAngular: axisAngular
         axisRadial: axisRadial
         pointsVisible: true
     }

     ScatterSeries {
         id: series2
         axisAngular: axisAngular
         axisRadial: axisRadial
         markerSize: 10
     }

     // Add data dynamically to the series
     Component.onCompleted: {
         for (var i = 0; i <= 20; i++) {
             series1.append(i, Math.random());
             series2.append(i, Math.random());
         }
     }
 }

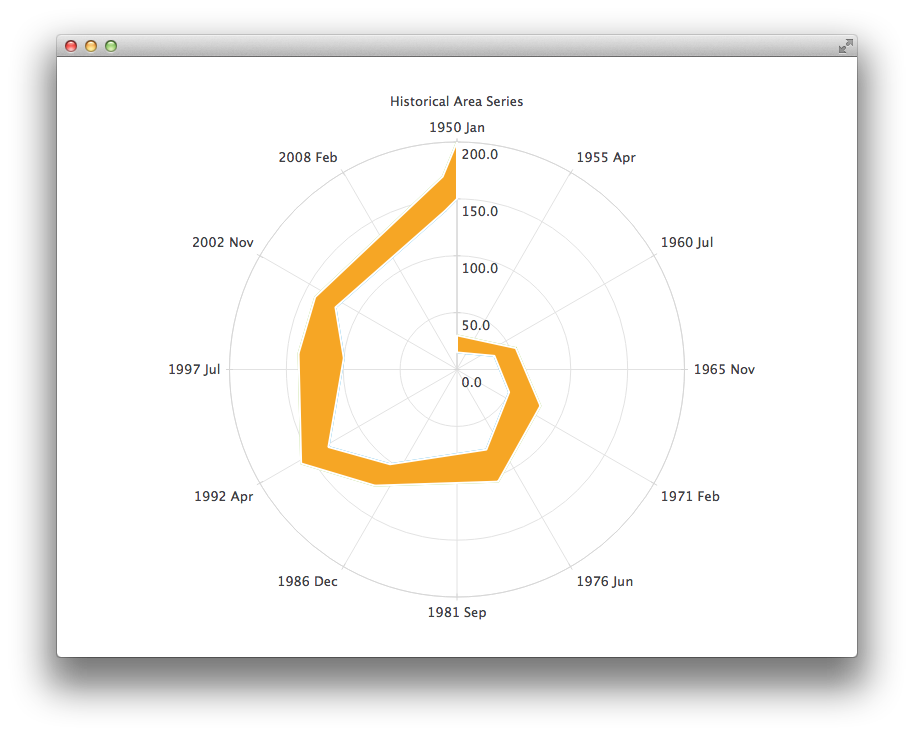

The next chart shows some accurate historical data for which we need to use a DateTimeAxis and a AreaSeries.

 PolarChartView {
     id: root
     title: "Historical Area Chart"
     anchors.fill: parent
     legend.visible: false
     antialiasing: true

     DateTimeAxis {
         id: axis1
         format: "yyyy MMM"
         tickCount: 13
     }
     ValueAxis {
         id: axis2
     }
     LineSeries {
         id: lowerLine
         axisAngular: axis1
         axisRadial: axis2

         // Please note that month in JavaScript months are zero based, so 2 means March
         XYPoint { x: root.toMsecsSinceEpoch(new Date(1950, 0, 1)); y: 15 }
         XYPoint { x: root.toMsecsSinceEpoch(new Date(1962, 4, 1)); y: 35 }
         XYPoint { x: root.toMsecsSinceEpoch(new Date(1970, 0, 1)); y: 50 }
         XYPoint { x: root.toMsecsSinceEpoch(new Date(1978, 2, 1)); y: 75 }
         XYPoint { x: root.toMsecsSinceEpoch(new Date(1987, 11, 1)); y: 102 }
         XYPoint { x: root.toMsecsSinceEpoch(new Date(1992, 1, 1)); y: 132 }
         XYPoint { x: root.toMsecsSinceEpoch(new Date(1998, 7, 1)); y: 100 }
         XYPoint { x: root.toMsecsSinceEpoch(new Date(2002, 4, 1)); y: 120 }
         XYPoint { x: root.toMsecsSinceEpoch(new Date(2012, 8, 1)); y: 140 }
         XYPoint { x: root.toMsecsSinceEpoch(new Date(2013, 5, 1)); y: 150 }
     }
     LineSeries {
         id: upperLine
         axisAngular: axis1
         axisRadial: axis2

         // Please note that month in JavaScript months are zero based, so 2 means March
         XYPoint { x: root.toMsecsSinceEpoch(new Date(1950, 0, 1)); y: 30 }
         XYPoint { x: root.toMsecsSinceEpoch(new Date(1962, 4, 1)); y: 55 }
         XYPoint { x: root.toMsecsSinceEpoch(new Date(1970, 0, 1)); y: 80 }
         XYPoint { x: root.toMsecsSinceEpoch(new Date(1978, 2, 1)); y: 105 }
         XYPoint { x: root.toMsecsSinceEpoch(new Date(1987, 11, 1)); y: 125 }
         XYPoint { x: root.toMsecsSinceEpoch(new Date(1992, 1, 1)); y: 160 }
         XYPoint { x: root.toMsecsSinceEpoch(new Date(1998, 7, 1)); y: 140 }
         XYPoint { x: root.toMsecsSinceEpoch(new Date(2002, 4, 1)); y: 140 }
         XYPoint { x: root.toMsecsSinceEpoch(new Date(2012, 8, 1)); y: 170 }
         XYPoint { x: root.toMsecsSinceEpoch(new Date(2013, 5, 1)); y: 200 }
     }
     AreaSeries {
         axisAngular: axis1
         axisRadial: axis2
         lowerSeries: lowerLine
         upperSeries: upperLine
     }

     // DateTimeAxis is based on QDateTimes so we must convert our JavaScript dates to
     // milliseconds since epoch to make them match the DateTimeAxis values
     function toMsecsSinceEpoch(date) {
         var msecs = date.getTime();
         return msecs;
     }
 }

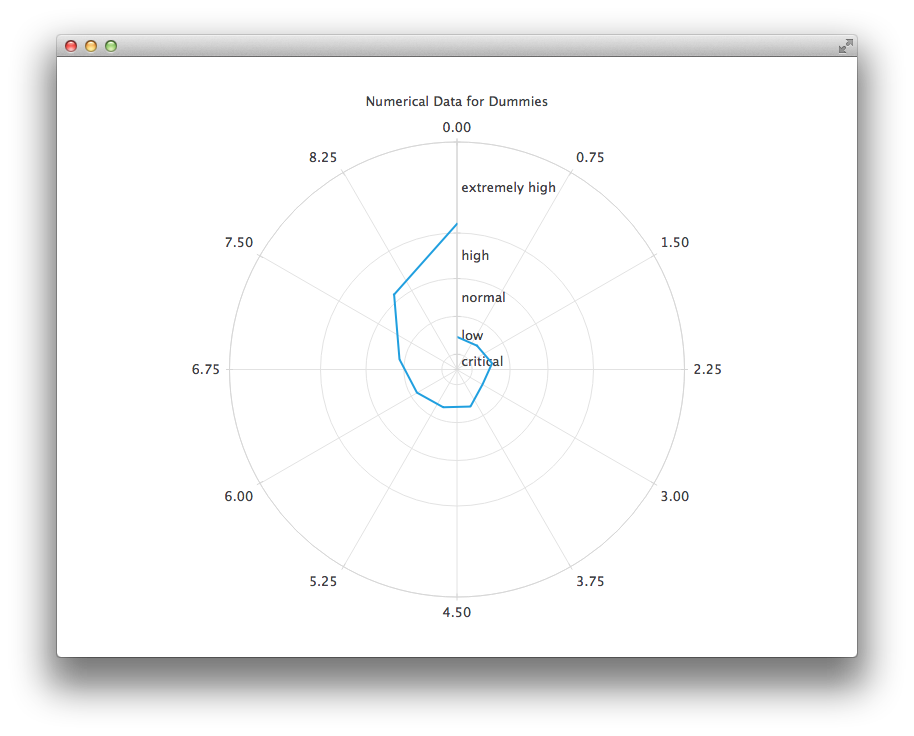

The next chart uses a CategoryAxis to make the data easier to understand.

 PolarChartView {
     title: "Numerical Data for Dummies"
     anchors.fill: parent
     legend.visible: false
     antialiasing: true

     LineSeries {
         axisRadial: CategoryAxis {
             min: 0
             max: 30
             CategoryRange {
                 label: "critical"
                 endValue: 2
             }
             CategoryRange {
                 label: "low"
                 endValue: 7
             }
             CategoryRange {
                 label: "normal"
                 endValue: 12
             }
             CategoryRange {
                 label: "high"
                 endValue: 18
             }
             CategoryRange {
                 label: "extremely high"
                 endValue: 30
             }
         }

         axisAngular: ValueAxis {
             tickCount: 13
         }

         XYPoint { x: 0; y: 4.3 }
         XYPoint { x: 1; y: 4.1 }
         XYPoint { x: 2; y: 4.7 }
         XYPoint { x: 3; y: 3.9 }
         XYPoint { x: 4; y: 5.2 }
         XYPoint { x: 5; y: 5.3 }
         XYPoint { x: 6; y: 6.1 }
         XYPoint { x: 7; y: 7.7 }
         XYPoint { x: 8; y: 12.9 }
         XYPoint { x: 9; y: 19.2 }
     }
 }
