Flashing and Running an Image on the 8155P

Qualcomm Snapdragon 8155P Board

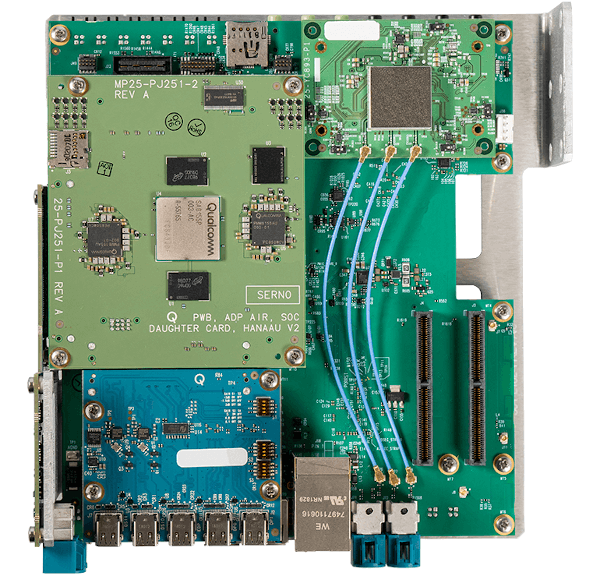

This is a top view of the Qualcomm Snapdragon 8155P board.

"Top view of the Qualcomm Snapdragon 8155P board."

Set up the wiring

Several cables between the PC and the board are needed for flashing and debugging applications on the board:

  • Power connector
  • Micro USB is the FT serial console output
  • Normal USB is the QFIL/Fastboot port (USB-A - USB A/USB C cable)
  • DisplayPort cable is for Graphical output
  • Ethernet port, for loading an application dynamically.

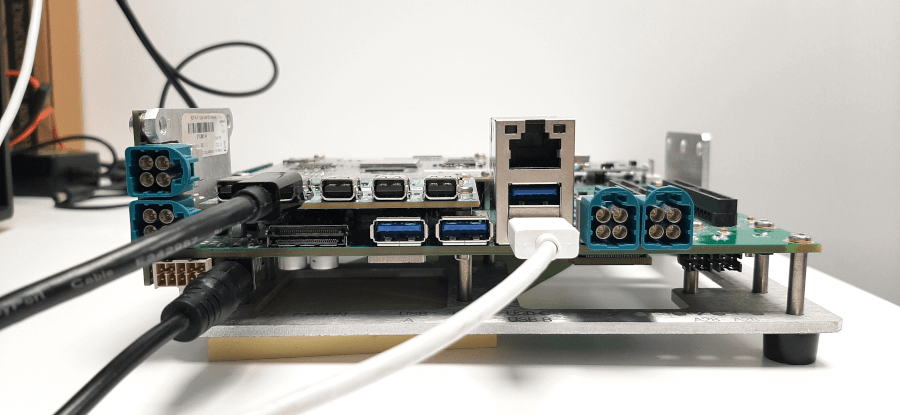

"Front view of the Qualcomm Snapdragon 8155P board."

This is a wiring configuration example: power is ON, male USB-A is connected for flashing images, DisplayPort cable is connected for Graphical output.

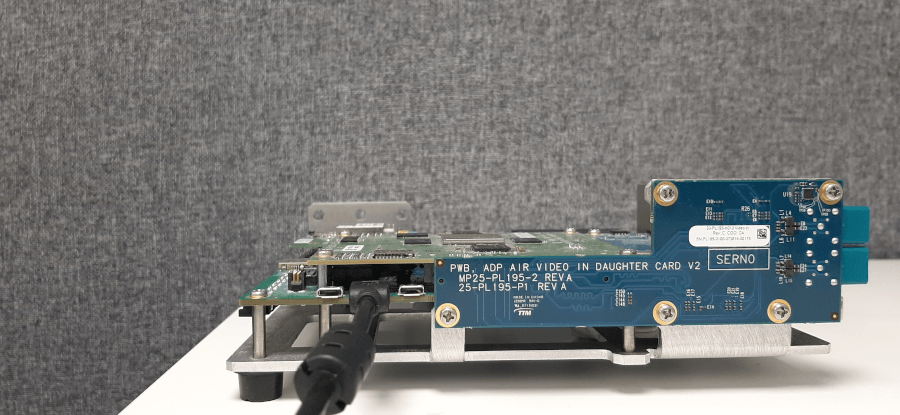

"Side view of the Qualcomm Snapdragon 8155P board."

Micro USB is connected for using the FT serial console.

Switch to Fastboot Mode

To flash images on Qualcomm Snapdragon 8155P board install Fastboot Tool on Host OS. See, Fastboot Tool

Before flashing switch the board to the Fastboot Mode:

  • Open serial connection with the board:
     putty /dev/ttyUSB0 -serial -sercfg 115200,8,1

  • There are 2 options:

    - On the device, hold the volume key and power cycle the device.

    - Or press down arrow on the UART shell and power cycle the device.

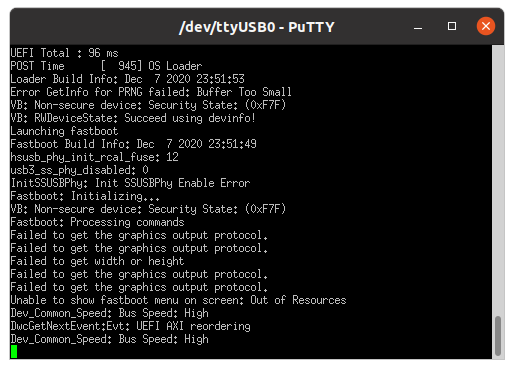

  • If the board switches to Fastboot Mode successfully, it prints following console output:

    "Fastboot terminal."

    Another way to check the board is in Fastboot Mode is to run the command:

     fastboot devices


Flash images

The build script produces set of images for board partitions.

 boot.img, perf_dyn.img, misc_dyn.img, abl.elf, etc

After switching to Fastboot Mode images can be flashed to the board.

  • When setting up for the first time, follow the images flashing procedure from GHS ES7_FinalCopy/ES7_customer_package_readme.docx:
     cd /work/ghs/sa8155/es7/es7_dev_env/hlos_dev_boot/apps/ghs_apps_proc/qc_bsp/out/chk/bin/target
     fastboot flash abl  abl.elf
     fastboot flash boot vmm-adp-gvm-sa8155/boot.img
     fastboot flash perf_dyn_a vmm-adp-gvm-sa8155/perf_dyn.img
     fastboot flash misc_dyn_a  vmm-adp-gvm-sa8155/misc_dyn.img

     cd /work/ghs/sa8155/es7/es7_dev_env/ES7_FinalCopy/Images/sa8155_hyp
     fastboot flash hyp_a hyp.mbn
     fastboot flash tz tz.mbn
     fastboot flash apdp apdp.mbn

     cd /work/ghs/sa8155/es7/es7_dev_env/hlos_dev_boot/apps/ghs_apps_proc/qc_bsp/out/chk/bin/target/fs
     fastboot flash gh_sys sys.img
     fastboot flash gh_persist ghs_persist.img
     fastboot flash gh_test ghs_test.img.sparse

     cd /work/ghs/sa8155/es7/es7_dev_env/hlos_dev_boot/apps/ghs_apps_proc/qc_bsp/prebuilt_NHLOS/adsp/asic_8150
     fastboot flash adsp adsp.img

     cd /work/ghs/sa8155/es7/es7_dev_env/hlos_dev_boot/lagvm/LINUX/android/out/target/product/msmnile_gvmgh
     fastboot flash vendor vendor.img


    Note: ES7_FinalCopy/ES7_customer_package_readme.docx is a part of QC [ES7] Customer package. Contact Qualcomm Support for more information.

  • If this is not the first time flashing, then the monolith part should be flashed:
     cd /work/ghs/sa8155/es7/es7_dev_env/hlos_dev_boot/apps/ghs_apps_proc/qc_bsp/out/chk/bin/target
     fastboot flash boot vmm-adp-gvm-sa8155/boot.img

  • Restart the board.

Run Qt application on the board

  • Open serial console:
     putty /dev/ttyUSB0 -serial -sercfg 115200,8,1

  • Execute the command:
     rt <application name> Initial

  • Run Qt application example:

    "QML application"

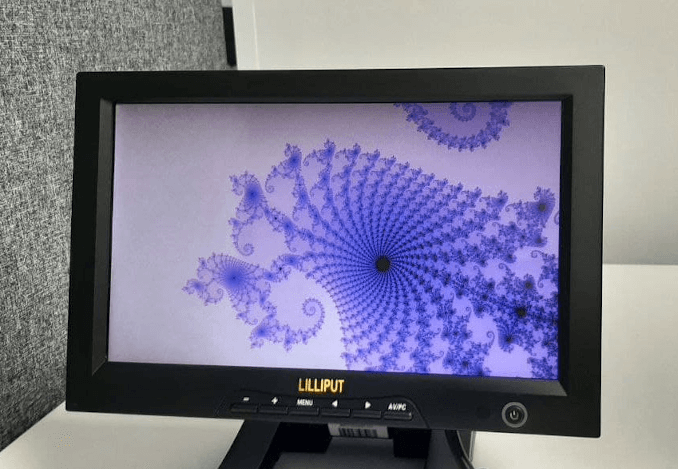

    Qt application is running on Qualcomm Snapdragon 8155P Board and displayed on the connected screen.
