Use Case - Positioners and Layouts In QML

There are several ways to position items in QML.

Below is a brief overview. For more details, see Important Concepts In Qt Quick - Positioning.

Manual Positioning

Items can be placed at specific x,y coordinates on the screen by setting their x,y properties. This will setup their position relative to the top left corner of their parent, according to the visual coordinate system rules.

Combined with using bindings instead of constant values for these properties, relative positioning is also easily accomplished by setting the x and y coordinates to the appropriate bindings.

 import QtQuick

 Item {
     width: 100; height: 100

     Rectangle {
         // Manually positioned at 20,20
         x: 20
         y: 20
         width: 80
         height: 80
         color: "red"
     }
 }

Anchors

The Item type provides the abilitiy to anchor to other Item types. There are seven anchor lines for each item: left, right, vertical center, top, bottom, baseline and horizontal center. The three vertical anchor lines can be anchored to any of the three vertical anchor lines of another item, and the four horizontal anchor lines can be anchored to the horizontal anchor lines of another item.

For full details, see Positioning with Anchors and the documentation of the anchors property.

 import QtQuick

 Item {
     width: 200; height: 200

     Rectangle {
         // Anchored to 20px off the top right corner of the parent
         anchors.right: parent.right
         anchors.top: parent.top
         anchors.margins: 20 // Sets all margins at once

         width: 80
         height: 80
         color: "orange"
     }

     Rectangle {
         // Anchored to 20px off the top center corner of the parent.
         // Notice the different group property syntax for 'anchors' compared to
         // the previous Rectangle. Both are valid.
         anchors { horizontalCenter: parent.horizontalCenter; top: parent.top; topMargin: 20 }

         width: 80
         height: 80
         color: "green"
     }
 }

Positioners

For the common case of wanting to position a set of types in a regular pattern, Qt Quick provides some positioner types. Items placed in a positioner are automatically positioned in some way; for example, a Row positions items to be horizontally adjacent (forming a row).

For full details see Item Positioners.

 import QtQuick

 Item {
     width: 300; height: 100

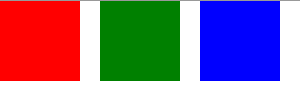

     Row { // The "Row" type lays out its child items in a horizontal line
         spacing: 20 // Places 20px of space between items

         Rectangle { width: 80; height: 80; color: "red" }
         Rectangle { width: 80; height: 80; color: "green" }
         Rectangle { width: 80; height: 80; color: "blue" }
     }
 }

Layout Types

Layout types function in a similar way as positioners but allow further refinement or restrictions to the layout. Specifically, the layout types allow you to:

• set the alignment of text and other items
• resize and fill the allotted application areas automatically
• set size constraints such as minimum or maximum dimensions
• set the spacing between items within the layout

 GroupBox {
     id: gridBox
     title: "Grid layout"
     Layout.fillWidth: true

     GridLayout {
         id: gridLayout
         rows: 3
         flow: GridLayout.TopToBottom
         anchors.fill: parent
         Label { text: "Line 1" }
         Label { text: "Line 2" }
         Label { text: "Line 3" }

         TextField { }
         TextField { }
         TextField { }

         TextArea {
             text: "This widget spans over three rows in the GridLayout.\n"
                   + "All items in the GridLayout are implicitly positioned from top to bottom."
             Layout.rowSpan: 3
             Layout.fillHeight: true
             Layout.fillWidth: true
         }
     }
 }

The snippet above comes from the Basic Layouts example. The snippet shows the simplicity of adding various fields and items in a layout. The GridLayout can be resized and its format is customizable through various properties.

For more information about the layout types, visit:

• Qt Quick Layouts Overview
• Basic Layouts example
