Qt Graphs Integration with Qt Quick 3D

As Qt Graphs for 3D is based on Qt Quick 3D, it is possible to integrate Qt Quick 3D scenes into the graphs.

Scene Environment

Adjusting a Qt Quick 3D scene environment in a graph requires defining either SceneEnvironment or ExtendedSceneEnvironment in the environment property of the graph as follows:

 environment: ExtendedSceneEnvironment {
     aoEnabled: true
     aoDither: true
     ditheringEnabled: true
     lightProbe: Texture {
         textureData: ProceduralSkyTextureData {
             groundBottomColor: "black"
             skyTopColor: "white"
         }
     }
     backgroundMode: SceneEnvironment.SkyBox
     lensFlareEnabled: true
     lensFlareGhostCount: 10
     lensFlareApplyStarburstTexture: true
     lensFlareBloomBias: 0.4
 }

Non-supported Features

Overriding anti-aliasing mode or scene clear color do not work, which means that setting value for SceneEnvironment.antialiasingMode and SceneEnvironment.clearColor does nothing. However, if the backgroundMode is not SceneEnvironment.Color, background will be affected by the settings.

Scene Integration

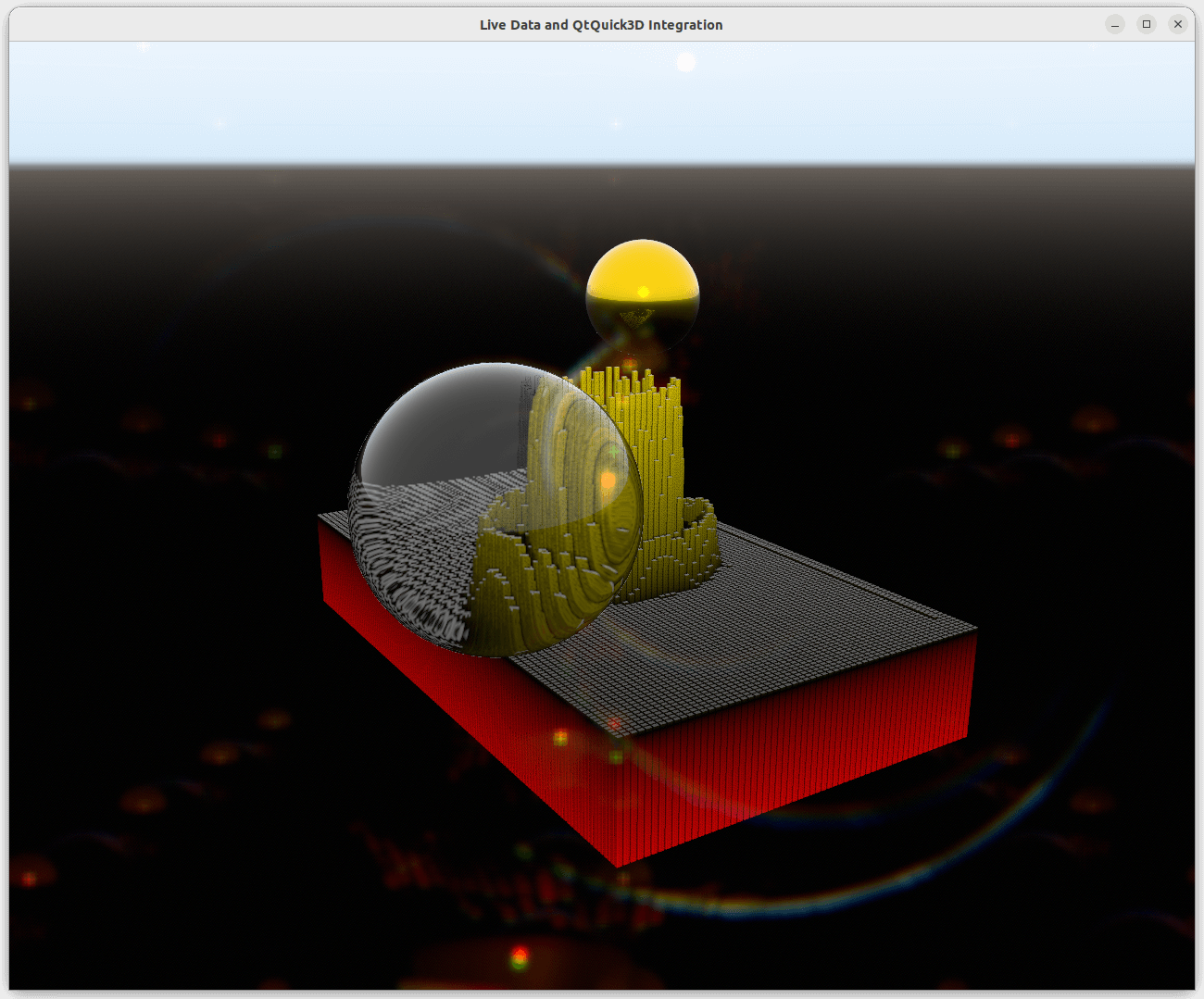

Integrating a Qt Quick 3D scene into a graph requires setting a Node into the importScene property of the graph as follows:

 importScene: Node {
     Model {
         scale: Qt.vector3d(0.01, 0.01, 0.01)
         source: "#Sphere"
         x: 2.5
         z: 2
         y: 1
         castsReflections: false
         receivesReflections: true
         materials: [
             PrincipledMaterial {
                 baseColor: "gold"
                 metalness: 1.0
                 roughness: 0.1
             }
         ]
         ReflectionProbe {
             boxSize: Qt.vector3d(6, 3, 5)
             boxOffset: Qt.vector3d(-1.5, -1, -1.5)
             parallaxCorrection: true
             quality: ReflectionProbe.High
         }
     }
     Model {
         scale: Qt.vector3d(0.01, 0.01, 0.01)
         source: "#Sphere"
         x: -2.5
         z: -2
         y: 1
         castsReflections: false
         receivesReflections: true
         materials: [
             PrincipledMaterial {
                 baseColor: "white"
                 metalness: 0.0
                 roughness: 0.0
                 transmissionFactor: 1.0
                 thicknessFactor: 50
             }
         ]
     }
 }
