Annotated URL

The Annotated URL example uses Qt NFC to display the contents of specifically formatted NFC Data Exchange Format (NDEF) messages read from an NFC Tag. The NDEF message should contain a URI record, an optional image/* MIME record, and one or more localized Text records.

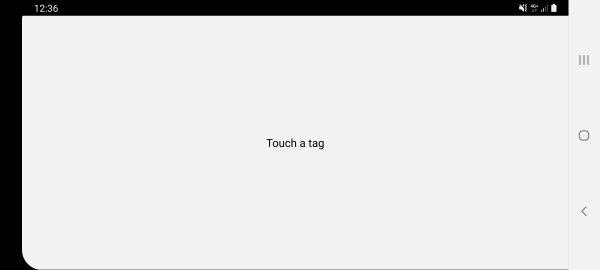

This is the initial state of the example:

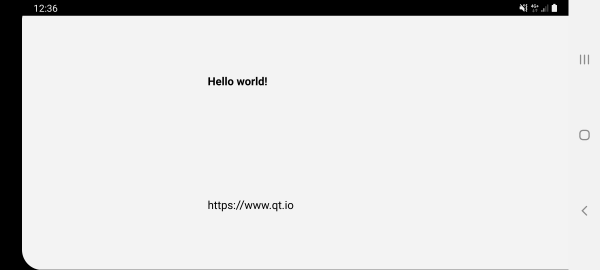

If a tag is touched, its NDEF content will be shown. Here is the UI for a tag that contains a text record and URI record:

When the screen is tapped, the URL will be opened in the browser.

AnnotatedUrl Class Definition

The AnnotatedUrl class wraps QNearFieldManager, the class providing the NFC Tag detection functionality. NDEF messages are read by QNearFieldManager and forwarded to a handler contained in the AnnotatedUrl class. After parsing the NDEF message the class emits the annotatedUrl() signal. The UI reacts to the signal displaying the contents of the NDEF message.

 class AnnotatedUrl : public QObject
 {
     Q_OBJECT

 public:
     explicit AnnotatedUrl(QObject *parent = 0);
     ~AnnotatedUrl();

     void startDetection();

 signals:
     void annotatedUrl(const QUrl &url, const QString &title, const QPixmap &pixmap);
     void nfcStateChanged(bool enabled);
     void tagError(const QString &error);

 public slots:
     void targetDetected(QNearFieldTarget *target);
     void targetLost(QNearFieldTarget *target);
     void handleMessage(const QNdefMessage &message, QNearFieldTarget *target);
     void handlePolledNdefMessage(QNdefMessage message);
     void handleAdapterStateChange(QNearFieldManager::AdapterState state);

 private:
     QNearFieldManager *manager;
     QNdefFilter messageFilter;
 };

 int main(int argc, char *argv[])
 {
     QApplication a(argc, argv);
     MainWindow mainWindow;
     AnnotatedUrl annotatedUrl;

     QObject::connect(&annotatedUrl, &AnnotatedUrl::annotatedUrl,
                      &mainWindow, &MainWindow::displayAnnotatedUrl);
     QObject::connect(&annotatedUrl, &AnnotatedUrl::nfcStateChanged,
                      &mainWindow, &MainWindow::nfcStateChanged);
     QObject::connect(&annotatedUrl, &AnnotatedUrl::tagError,
                      &mainWindow, &MainWindow::showTagError);

     annotatedUrl.startDetection();
     mainWindow.show();

     return a.exec();
 }

Message Filtering

As it is mentioned above, the application supports the NDEF messages of a specific format. A correct message should contain the following fields:

• At least one NDEF Text record, which will be used as a header.
• Exactly one NDEF URI record.
• An optional MIME record with an icon.

The order of the records is not strictly specified.

An instance of QNdefFilter is used to validate the NDEF message. The filter is populated as follows:

     messageFilter.setOrderMatch(false);
     messageFilter.appendRecord<QNdefNfcTextRecord>(1, 100);
     messageFilter.appendRecord<QNdefNfcUriRecord>(1, 1);
     messageFilter.appendRecord(QNdefRecord::Mime, "", 0, 1);

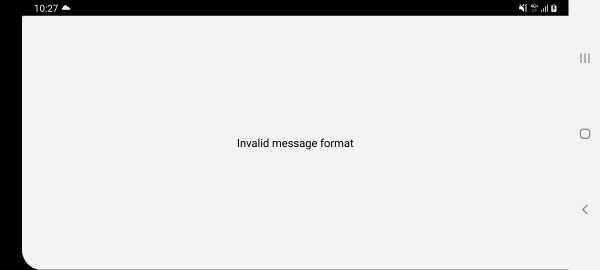

If the incoming message does not match the filter, an error message is shown:

AnnotatedUrl Handler Implementation

NFC messages read by the QNearFieldManager are forwarded to AnnotatedUrl::handleMessage.

 void AnnotatedUrl::handleMessage(const QNdefMessage &message, QNearFieldTarget *target)
 {

At first the messages are validated using the QNdefFilter::match() method:

     if (!messageFilter.match(message)) {
         emit tagError("Invalid message format");
         return;
     }

If the messages have the correct format, the parsing continues.

Because NFC messages are composed of several NDEF records, looping through all of the records allows the extraction of the 3 parameters to be displayed in the UI: the Uri, the Title and the Pixmap:

     for (const QNdefRecord &record : message) {
         if (record.isRecordType<QNdefNfcTextRecord>()) {
             QNdefNfcTextRecord textRecord(record);

             title = textRecord.text();
             QLocale locale(textRecord.locale());
         } else if (record.isRecordType<QNdefNfcUriRecord>()) {
             QNdefNfcUriRecord uriRecord(record);

             url = uriRecord.uri();
         } else if (record.typeNameFormat() == QNdefRecord::Mime &&
                    record.type().startsWith("image/")) {
             pixmap = QPixmap::fromImage(QImage::fromData(record.payload()));
         }

Finally after having extracted the parameters of the NFC message the corresponding signal is emitted so that the UI can handle it.

     }

     emit annotatedUrl(url, title, pixmap);
 }

Adapter State Handling

On Android the adapter state changes can be detected by connecting to the QNearFieldManager::adapterStateChanged() signal. This allows stopping the detection when the NFC adapter is disabled, and restarting it when the adapter is enabled again. This approach is implemented in the AnnotatedUrl::handleAdapterStateChange slot.

 void AnnotatedUrl::handleAdapterStateChange(QNearFieldManager::AdapterState state)
 {
     if (state == QNearFieldManager::AdapterState::Online) {
         startDetection();
     } else if (state == QNearFieldManager::AdapterState::Offline) {
         manager->stopTargetDetection();
         emit nfcStateChanged(false);
     }
 }

Automatic Application Startup

Android supports automatic application startup when the NDEF tag is touched. See Qt NFC on Android for the required changes to the Android manifest file.

Introduction of a custom AndroidManifest.xml requires special steps on the build system side.

Building with qmake

When using qmake, the following needs to be added to the .pro file:

 android {
     ANDROID_PACKAGE_SOURCE_DIR = $$PWD/android

     DISTFILES += \
         android/AndroidManifest.xml
 }

Building with CMake

When using CMake, the following needs to be added to the CMakeLists.txt:

 if(ANDROID)
     set_property(TARGET annotatedurl
         APPEND PROPERTY QT_ANDROID_PACKAGE_SOURCE_DIR
         ${CMAKE_CURRENT_SOURCE_DIR}/android
     )
 endif()

Running the Example

To run the example from Qt Creator, open the Welcome mode and select the example from Examples. For more information, visit Building and Running an Example.
