Qt Quick Examples - Views
This is a collection of QML model-view examples.
Views is a collection of small QML examples relating to model and view functionality. They demonstrate how to show data from a model using the Qt Quick view types. For more information, visit the Models and Views in Qt Quick page.
Running the Example
To run the example from Qt Creator, open the Welcome mode and select the example from Examples. For more information, visit Building and Running an Example.
Using GridView and PathView
GridView and PathView demonstrate usage of these types to display views.
GridView {
anchors.fill: parent
cellWidth: 100
cellHeight: 100
focus: true
model: appModel
highlight: Rectangle {
width: 80
height: 80
color: "lightsteelblue"
}
delegate: Item {
required property string icon
required property string name
required property int index
width: 100
height: 100
Image {
id: myIcon
y: 20
anchors.horizontalCenter: parent.horizontalCenter
source: parent.icon
}
Text {
anchors {
top: myIcon.bottom
horizontalCenter: parent.horizontalCenter
}
text: parent.name
}
MouseArea {
anchors.fill: parent
onClicked: parent.GridView.view.currentIndex = parent.index
}
}
}

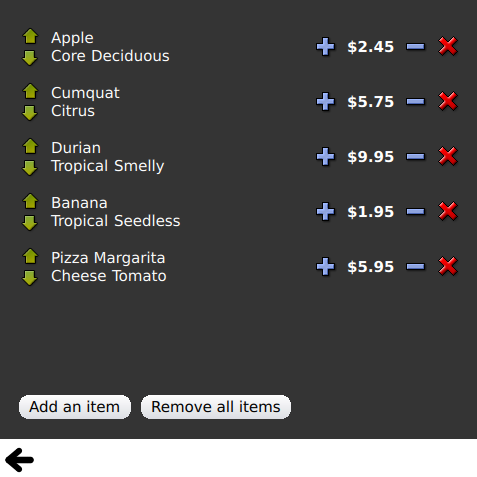

Using Dynamic List
Dynamic List demonstrates animation of runtime additions and removals to a ListView.
The ListView.onAdd signal handler runs an animation when new items are added to the view, and the ListView.onRemove another when they are removed.
Item {
SequentialAnimation {
id: addAnimation
PropertyAction {
target: delegateItem
property: "height"
value: 0
}
NumberAnimation {
target: delegateItem
property: "height"
to: 80
duration: 250
easing.type: Easing.InOutQuad
}
}
ListView.onAdd: addAnimation.start()
SequentialAnimation {
id: removeAnimation
PropertyAction {
target: delegateItem
property: "ListView.delayRemove"
value: true
}
NumberAnimation {
target: delegateItem
property: "height"
to: 0
duration: 250
easing.type: Easing.InOutQuad
}
// Make sure delayRemove is set back to false so that the item can be destroyed
PropertyAction {
target: delegateItem
property: "ListView.delayRemove"
value: false
}
}
ListView.onRemove: removeAnimation.start()
}
Expanding Delegates
Expanding Delegates demonstrates delegates that expand when activated.
It has a complex delegate the size and appearance of which can change, displacing other items in the view.
Item {
id: recipe
required property string title
required property string picture
required property string ingredients
required property string method
// Create a property to contain the visibility of the details.
// We can bind multiple element's opacity to this one property,
// rather than having a "PropertyChanges" line for each element we
// want to fade.
property real detailsOpacity : 0
MouseArea {
anchors.fill: parent
onClicked: recipe.state = 'Details';
}
// Lay out the page: picture, title and ingredients at the top, and method at the
// bottom. Note that elements that should not be visible in the list
// mode have their opacity set to recipe.detailsOpacity.
Row {
id: topLayout
x: 10
y: 10
height: recipeImage.height
width: parent.width
spacing: 10
Image {
id: recipeImage
width: 50
height: 50
source: recipe.picture
}
Item {
id: details
x: 10
width: parent.width - 20
anchors {
top: topLayout.bottom
topMargin: 10
bottom: parent.bottom
bottomMargin: 10
}
opacity: recipe.detailsOpacity
}
// A button to close the detailed view, i.e. set the state back to default ('').
TextButton {
y: 10
anchors {
right: background.right
rightMargin: 10
}
opacity: recipe.detailsOpacity
text: qsTr("Close")
onClicked: recipe.state = '';
}
states: State {
name: "Details"
PropertyChanges {
background.color: "white"
recipeImage {
// Make picture bigger
width: 130
height: 130
}
recipe {
// Make details visible
detailsOpacity: 1
x: 0
// Fill the entire list area with the detailed view
height: listView.height
}
}
// Move the list so that this item is at the top.
PropertyChanges {
recipe.ListView.view.contentY: recipe.y
explicit: true;
}
// Disallow flicking while we're in detailed view
PropertyChanges {
recipe.ListView.view.interactive: false
}
}
transitions: Transition {
// Make the state changes smooth
ParallelAnimation {
ColorAnimation {
property: "color"
duration: 500
}
NumberAnimation {
duration: 300
properties: "detailsOpacity,x,contentY,height,width"
}
}
}
}
Using Highlight
Highlight demonstrates adding a custom highlight to a ListView.
// Define a highlight with customized movement between items.
component HighlightBar : Rectangle {
width: 200
height: 50
color: "#FFFF88"
y: ListView.view.currentItem.y
Behavior on y {
SpringAnimation {
spring: 2
damping: 0.1
}
}
}
ListView {
id: listView
width: 200
height: parent.height
x: 30
model: PetsModel { }
delegate: PetDelegate { }
focus: true
// Set the highlight delegate. Note we must also set highlightFollowsCurrentItem
// to false so the highlight delegate can control how the highlight is moved.
highlight: HighlightBar { }
highlightFollowsCurrentItem: false
}
Using Highlight Ranges
Highlight Ranges shows the three different highlight range modes of ListView.
Rectangle { id: root property int current: 0 property bool increasing: true // Example index automation for convenience, disabled on click or tap SequentialAnimation { id: anim loops: -1 running: true ScriptAction { script: if (root.increasing) { root.current++; if (root.current >= aModel.count -1) { root.current = aModel.count - 1; root.increasing = !root.increasing; } } else { root.current--; if (root.current <= 0) { root.current = 0; root.increasing = !root.increasing; } } } PauseAnimation { duration: 500 } } ListView { id: list1 height: 50 width: parent.width model: PetsModel { id: aModel } delegate: petDelegate orientation: ListView.Horizontal highlight: Rectangle { color: "lightsteelblue" } currentIndex: root.current onCurrentIndexChanged: root.current = currentIndex focus: true } ListView { id: list2 y: 160 height: 50 width: parent.width model: PetsModel { } delegate: petDelegate orientation: ListView.Horizontal highlight: Rectangle { color: "yellow" } currentIndex: root.current preferredHighlightBegin: 80 preferredHighlightEnd: 220 highlightRangeMode: ListView.ApplyRange } ListView { id: list3 y: 320 height: 50 width: parent.width model: PetsModel {} delegate: petDelegate orientation: ListView.Horizontal highlight: Rectangle { color: "yellow" } currentIndex: root.current onCurrentIndexChanged: root.current = currentIndex preferredHighlightBegin: 125 preferredHighlightEnd: 125 highlightRangeMode: ListView.StrictlyEnforceRange } }
Using Sections
Sections demonstrates the various section headers and footers available to ListView.
// The delegate for each section header
Component {
id: sectionHeading
Rectangle {
width: ListView.view.width
height: childrenRect.height
color: "lightsteelblue"
required property string section
Text {
text: parent.section
font.bold: true
font.pixelSize: 20
}
}
}
ListView {
id: view
anchors.top: parent.top
anchors.bottom: buttonBar.top
width: parent.width
model: animalsModel
delegate: Text {
required property string name
text: name
font.pixelSize: 18
}
section.property: "size"
section.criteria: ViewSection.FullString
section.delegate: sectionHeading
}
Using Packages
Packages uses the Package type to transition delegates between two views.
It has a Package object which defines delegate items for each view and an item that can be transferred between delegates.
Package { id: delegate required property int upTo required property int index required property string display Text { id: listDelegate width: parent.width height: 25 text: 'Empty' Package.name: 'list' } Text { id: gridDelegate width: parent.width / 2 height: 50 text: 'Empty' Package.name: 'grid' } Rectangle { id: wrapper width: parent?.width ?? 0 height: 25 color: 'lightsteelblue' Text { text: delegate.display anchors.centerIn: parent } state: delegate.upTo > delegate.index ? 'inGrid' : 'inList' states: [ State { name: 'inList' ParentChange { target: wrapper parent: listDelegate } }, State { name: 'inGrid' ParentChange { target: wrapper parent: gridDelegate x: 0 y: 0 width: gridDelegate.width height: gridDelegate.height } } ] transitions: [ Transition { ParentAnimation { NumberAnimation { properties: 'x,y,width,height' duration: 300 } } } ] } }
A DelegateModel allows the individual views to access their specific items from the shared package delegate.
DelegateModel { id: visualModel delegate: Delegate { upTo: root.upTo } model: myModel } ListView { id: lv height: parent.height / 2 width: parent.width model: visualModel.parts.list } GridView { y: parent.height / 2 height: parent.height / 2 width: parent.width cellWidth: width / 2 cellHeight: 50 model: visualModel.parts.grid }
Draggable Selections demonstrates the use of Package to group together multiple selected delegates for drag-and-drop within an item view.
Package {
id: packageRoot
required property var modelData
MouseArea {
id: visibleContainer
Package.name: "visible"
width: 64
height: 64
enabled: packageRoot.DelegateModel.inSelected
drag.target: draggable
Item {
id: draggable
Drag.active: visibleContainer.drag.active
Using ObjectModel
ObjectModel uses an ObjectModel for the model instead of a ListModel.
ObjectModel {
id: itemModel
Rectangle {
width: view.width
height: view.height
color: "#FFFEF0"
Text {
anchors.centerIn: parent
text: qsTr("Page 1")
font.bold: true
}
Component.onDestruction: if (root.printDestruction) print("destroyed 1")
}
Rectangle {
width: view.width
height: view.height
color: "#F0FFF7"
Text {
anchors.centerIn: parent
text: qsTr("Page 2")
font.bold: true
}
Component.onDestruction: if (root.printDestruction) print("destroyed 2")
}
Rectangle {
width: view.width
height: view.height
color: "#F4F0FF"
Text {
anchors.centerIn: parent
text: qsTr("Page 3")
font.bold: true
}
Component.onDestruction: if (root.printDestruction) print("destroyed 3")
}
}
ListView {
id: view
anchors {
fill: parent
bottomMargin: 30
}
model: itemModel
preferredHighlightBegin: 0
preferredHighlightEnd: 0
highlightRangeMode: ListView.StrictlyEnforceRange
orientation: ListView.Horizontal
snapMode: ListView.SnapOneItem
flickDeceleration: 2000
cacheBuffer: 200
}
Using Display Margins
Display Margins uses delegates to display items and implements a simple header and footer components.
