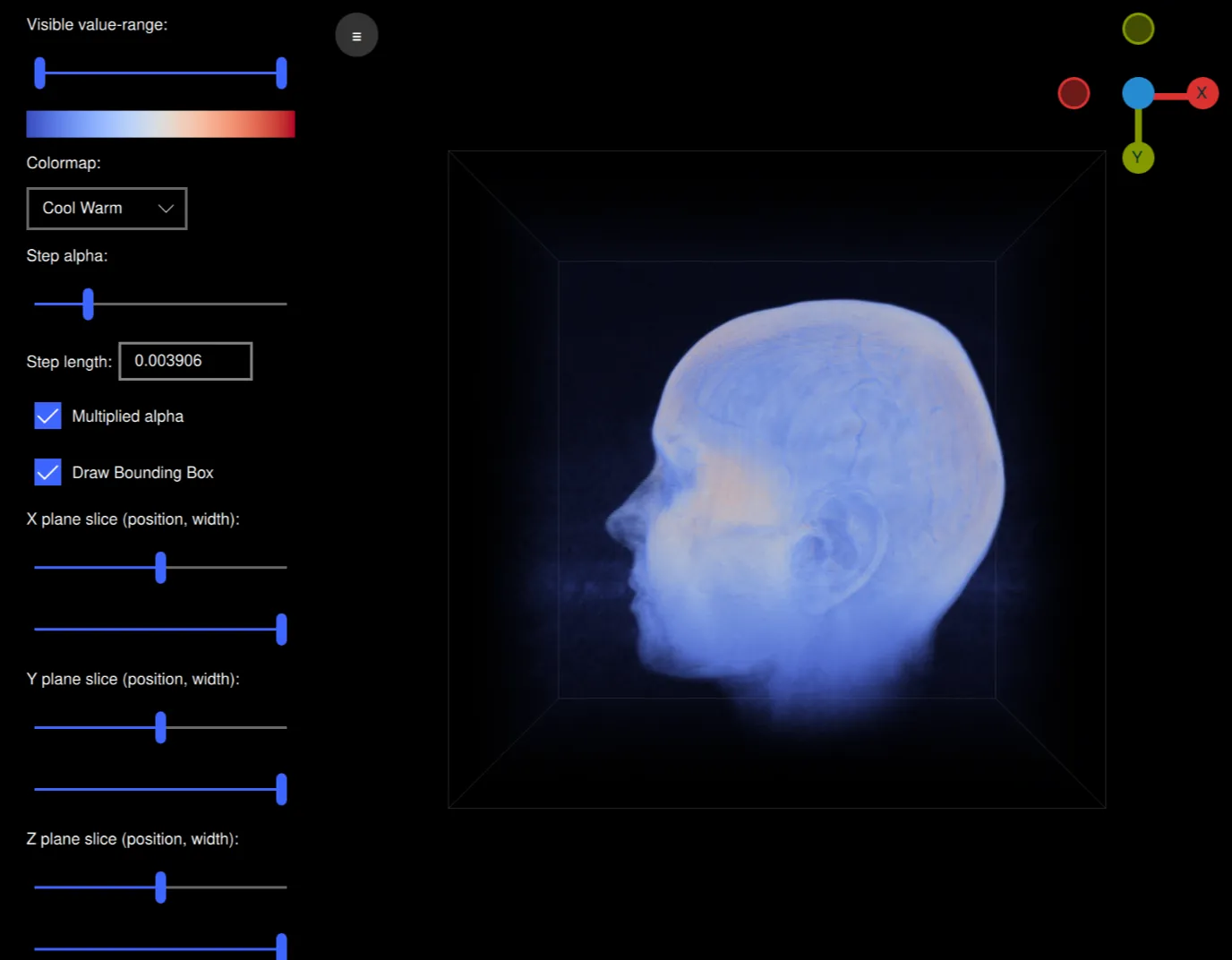

Qt Quick 3D - Volumetric Rendering Example

Demonstrates how to do volumetric rendering in Qt Quick 3D.

Introduction

This example demonstrates how to do volumetric rendering using a custom shader and a 3D volume texture with a technique called Volume ray casting. This example is an application that can read raw volume files and render them while being able to interactively modify various rendering settings such as the colormap, alpha and slice planes used. It is designed to work well with the volumes hosted at https://klacansky.com/open-scivis-datasets/ and automatically set the correct dimensions and scaling.

Implementation

The application is using QML and is a ApplicationWindow with a View3D containing the volume and a ScrollView containing the settings. To render our volume we create a scene in our View3D object with just a cube model in the middle.

 Model {
     id: cubeModel
     source: "#Cube"
     visible: true
     materials: CustomMaterial {
         shadingMode: CustomMaterial.Unshaded
         vertexShader: "alpha_blending.vert"
         fragmentShader: "alpha_blending.frag"

         property TextureInput volume: TextureInput {
             texture: Texture {
                 textureData: VolumeTextureData {
                     id: volumeTextureData
                     source: "file:///default_colormap"
                     dataType: dataTypeComboBox.currentText ? dataTypeComboBox.currentText : "uint8"
                     width: parseInt(dataWidth.text)
                     height: parseInt(dataHeight.text)
                     depth: parseInt(dataDepth.text)
                 }
                 minFilter: Texture.Nearest
                 mipFilter: Texture.None
                 magFilter: Texture.Nearest
                 tilingModeHorizontal: Texture.ClampToEdge
                 tilingModeVertical: Texture.ClampToEdge
                 //tilingModeDepth: Texture.ClampToEdge // Qt 6.7
             }
         }

         property TextureInput colormap: TextureInput {
             enabled: true
             texture: Texture {
                 id: colormapTexture
                 tilingModeHorizontal: Texture.ClampToEdge
                 source: getColormapSource(colormapCombo.currentIndex)
             }
         }
         property real stepLength: Math.max(0.0001, parseFloat(
                                                stepLengthText.text,
                                                1 / cubeModel.maxSide))
         property real minSide: 1 / cubeModel.minSide
         property real stepAlpha: stepAlphaSlider.value
         property bool multipliedAlpha: multipliedAlphaBox.checked

         property real tMin: tSlider.first.value
         property real tMax: tSlider.second.value
         property vector3d sliceMin: sliceSliderMin(
                                         xSliceSlider.value,
                                         xSliceWidthSlider.value,
                                         ySliceSlider.value,
                                         ySliceWidthSlider.value,
                                         zSliceSlider.value,
                                         zSliceWidthSlider.value)
         property vector3d sliceMax: sliceSliderMax(
                                         xSliceSlider.value,
                                         xSliceWidthSlider.value,
                                         ySliceSlider.value,
                                         ySliceWidthSlider.value,
                                         zSliceSlider.value,
                                         zSliceWidthSlider.value)

         sourceBlend: CustomMaterial.SrcAlpha
         destinationBlend: CustomMaterial.OneMinusSrcAlpha
     }
     property real maxSide: Math.max(parseInt(dataWidth.text),
                                     parseInt(dataHeight.text),
                                     parseInt(dataDepth.text))
     property real minSide: Math.min(parseInt(dataWidth.text),
                                     parseInt(dataHeight.text),
                                     parseInt(dataDepth.text))
     scale: Qt.vector3d(parseFloat(scaleWidth.text),
                        parseFloat(scaleHeight.text),
                        parseFloat(scaleDepth.text))

     Model {
         visible: drawBoundingBox.checked
         geometry: LineBoxGeometry {}
         materials: DefaultMaterial {
             diffuseColor: "#323232"
             lighting: DefaultMaterial.NoLighting
         }
         receivesShadows: false
         castsShadows: false
     }

     Model {
         visible: drawBoundingBox.checked
         geometry: LineBoxGeometry {}
         materials: DefaultMaterial {
             diffuseColor: "#323232"
             lighting: DefaultMaterial.NoLighting
         }
         receivesShadows: false
         castsShadows: false
         position: sliceBoxPosition(xSliceSlider.value,
                                    ySliceSlider.value,
                                    zSliceSlider.value,
                                    xSliceWidthSlider.value,
                                    ySliceWidthSlider.value,
                                    zSliceWidthSlider.value)
         scale: Qt.vector3d(xSliceWidthSlider.value,
                            ySliceWidthSlider.value,
                            zSliceWidthSlider.value)
     }
 }

This cube is using a custom shader with a 3D texture for the volume and an image texture for the colormap. There are also various properties for the transfer function, slice planes etc. The volume texture's textureData is a custom QML type called VolumeTextureData and is defined in volumetexturedata.cpp and volumetexturedata.h.

 property TextureInput volume: TextureInput {
     texture: Texture {
         textureData: VolumeTextureData {
             id: volumeTextureData
             source: "file:///default_colormap"
             dataType: dataTypeComboBox.currentText ? dataTypeComboBox.currentText : "uint8"
             width: parseInt(dataWidth.text)
             height: parseInt(dataHeight.text)
             depth: parseInt(dataDepth.text)
         }
         minFilter: Texture.Nearest
         mipFilter: Texture.None
         magFilter: Texture.Nearest
         tilingModeHorizontal: Texture.ClampToEdge
         tilingModeVertical: Texture.ClampToEdge
         //tilingModeDepth: Texture.ClampToEdge // Qt 6.7
     }
 }

It contains the options source, dataType, width, height and depth that define how the raw volume file should be interpreted. VolumeTextureData also contains the function loadAsync for asynchronously loading a volume. It will send either a loadSucceeded or a loadFailed signal.

This cube model also contains two models containing a LineBoxGeometry. These are boxes showing the bounding box of the volume and the slice planes.

 Model {
     visible: drawBoundingBox.checked
     geometry: LineBoxGeometry {}
     materials: DefaultMaterial {
         diffuseColor: "#323232"
         lighting: DefaultMaterial.NoLighting
     }
     receivesShadows: false
     castsShadows: false
 }

 Model {
     visible: drawBoundingBox.checked
     geometry: LineBoxGeometry {}
     materials: DefaultMaterial {
         diffuseColor: "#323232"
         lighting: DefaultMaterial.NoLighting
     }
     receivesShadows: false
     castsShadows: false
     position: sliceBoxPosition(xSliceSlider.value,
                                ySliceSlider.value,
                                zSliceSlider.value,
                                xSliceWidthSlider.value,
                                ySliceWidthSlider.value,
                                zSliceWidthSlider.value)
     scale: Qt.vector3d(xSliceWidthSlider.value,
                        ySliceWidthSlider.value,
                        zSliceWidthSlider.value)
 }

Let's have a look at the shaders. The vertex shader is very simple and will, aside from the MVP projection of the position, calculate the direction of the ray from the camera to the model in model space:

 void MAIN()
 {
     POSITION = MODELVIEWPROJECTION_MATRIX * vec4(VERTEX, 1.0);
     ray_direction_model = VERTEX - (inverse(MODEL_MATRIX) * vec4(CAMERA_POSITION, 1.0)).xyz;
 }

The fragment shader will start with calculating where our ray-marching ray will start in model space taking into account the slice planes. The while loop will step along the ray, sampling the voxels at equal distance adding the color and opactiy for the voxel's value in the colormap.

 void MAIN()
 {
     FRAGCOLOR = vec4(0);

     // The camera position (eye) in model space
     const vec3 ray_origin_model = (inverse(MODEL_MATRIX) * vec4(CAMERA_POSITION, 1)).xyz;

     // Get the ray intersection with the sliced box
     float t_0, t_1;
     const vec3 top_sliced = vec3(100)*sliceMax - vec3(50);
     const vec3 bottom_sliced = vec3(100)*sliceMin - vec3(50);
     if (!ray_box_intersection(ray_origin_model, ray_direction_model, bottom_sliced, top_sliced, t_0, t_1))
         return; // No ray intersection with sliced box, nothing to render

     // Get the start/end points of the ray in original box
     const vec3 top = vec3(50, 50, 50);
     const vec3 bottom = vec3(-50, -50, -50);
     const vec3 ray_start = (ray_origin_model + ray_direction_model * t_0 - bottom) / (top - bottom);
     const vec3 ray_stop =  (ray_origin_model + ray_direction_model * t_1 - bottom) / (top - bottom);

     vec3 ray = ray_stop - ray_start;
     float ray_length = length(ray);
     vec3 step_vector = stepLength * ray / ray_length;

     vec3 position = ray_start;

     // Ray march until reaching the end of the volume, or color saturation
     while (ray_length > 0) {
         ray_length -= stepLength;
         position += step_vector;

         float val = textureLod(volume, position, 0).r;
         if (val == 0 || val < tMin || val > tMax)
             continue;

         const float alpha = multipliedAlpha ? val * stepAlpha : stepAlpha;
         vec4 val_color = vec4(textureLod(colormap, vec2(val, 0.5), 0).rgb, alpha);
         // Opacity correction
         val_color.a = 1.0 - pow(max(0.0, 1.0 - val_color.a), 1.0);
         FRAGCOLOR.rgb += (1.0 - FRAGCOLOR.a) * val_color.a * val_color.rgb;
         FRAGCOLOR.a += (1.0 - FRAGCOLOR.a) * val_color.a;
         if (FRAGCOLOR.a >= 0.95)
             break;
     }
 }

To control the volume model we add a custom Item called ArcballController that implements an arcball controller so we can freely rotate the model. The DragHandler will send commands to the ArcballController when we click and move the mouse. The WheelHandler adds zooming to the camera.

 ArcballController {
     id: arcballController
     controlledObject: cubeModel

     function jumpToAxis(axis) {
         cameraRotation.from = arcballController.controlledObject.rotation
         cameraRotation.to = originGizmo.quaternionForAxis(
                     axis, arcballController.controlledObject.rotation)
         cameraRotation.duration = 200
         cameraRotation.start()
     }

     function jumpToRotation(qRotation) {
         cameraRotation.from = arcballController.controlledObject.rotation
         cameraRotation.to = qRotation
         cameraRotation.duration = 100
         cameraRotation.start()
     }

     QuaternionAnimation {
         id: cameraRotation
         target: arcballController.controlledObject
         property: "rotation"
         type: QuaternionAnimation.Slerp
         running: false
         loops: 1
     }
 }

 DragHandler {
     id: dragHandler
     target: null
     acceptedModifiers: Qt.NoModifier
     onCentroidChanged: {
         arcballController.mouseMoved(toNDC(centroid.position.x,
                                            centroid.position.y))
     }

     onActiveChanged: {
         if (active) {
             view.forceActiveFocus()
             arcballController.mousePressed(toNDC(centroid.position.x,
                                                  centroid.position.y))
         } else
             arcballController.mouseReleased(toNDC(centroid.position.x,
                                                   centroid.position.y))
     }

     function toNDC(x, y) {
         return Qt.vector2d((2.0 * x / width) - 1.0,
                            1.0 - (2.0 * y / height))
     }
 }

 WheelHandler {
     id: wheelHandler
     orientation: Qt.Vertical
     target: null
     acceptedDevices: PointerDevice.Mouse | PointerDevice.TouchPad
     onWheel: event => {
                  let delta = -event.angleDelta.y * 0.01
                  cameraNode.z += cameraNode.z * 0.1 * delta
              }
 }

We have another custom Item called OriginGizmo that is a small gizmo to show the orientation of the rotated model.

 OriginGizmo {
     id: originGizmo
     anchors.top: parent.top
     anchors.right: parent.right
     anchors.margins: 10
     width: 120
     height: 120
     targetNode: cubeModel

     onAxisClicked: axis => {
                        arcballController.jumpToAxis(axis)
                    }
 }

To control all the settings we have ScrollView to the left with a bunch of ui elements:

 ScrollView {
     id: settingsPane
     height: parent.height
     property bool hidden: false

     function toggleHide() {
         if (settingsPane.hidden) {
             settingsPaneAnimation.from = settingsPane.x
             settingsPaneAnimation.to = 0
         } else {
             settingsPaneAnimation.from = settingsPane.x
             settingsPaneAnimation.to = -settingsPane.width
         }
         settingsPane.hidden = !settingsPane.hidden
         settingsPaneAnimation.running = true
     }

     NumberAnimation on x {
         id: settingsPaneAnimation
         running: false
         from: width
         to: width
         duration: 100
     }

     Column {
         topPadding: 10
         bottomPadding: 10
         leftPadding: 20
         rightPadding: 20

         spacing: 10

         Label {
             text: qsTr("Visible value-range:")
         }

         RangeSlider {
             id: tSlider
             from: 0
             to: 1
             first.value: 0
             second.value: 1
         }

         Image {
             width: tSlider.width
             height: 20
             source: getColormapSource(colormapCombo.currentIndex)
         }

         Label {
             text: qsTr("Colormap:")
         }

         ComboBox {
             id: colormapCombo
             model: [qsTr("Cool Warm"), qsTr("Plasma"), qsTr("Viridis"), qsTr("Rainbow"), qsTr("Gnuplot")]
         }

         Label {
             text: qsTr("Step alpha:")
         }

         Slider {
             id: stepAlphaSlider
             from: 0
             value: 0.2
             to: 1
         }

         Grid {
             horizontalItemAlignment: Grid.AlignHCenter
             verticalItemAlignment: Grid.AlignVCenter
             spacing: 5
             Label {
                 text: qsTr("Step length:")
             }

             TextField {
                 id: stepLengthText
                 text: "0.00391" // ~1/256
                 width: 100
             }
         }

         CheckBox {
             id: multipliedAlphaBox
             text: qsTr("Multiplied alpha")
             checked: true
         }

         CheckBox {
             id: drawBoundingBox
             text: qsTr("Draw Bounding Box")
             checked: true
         }

         CheckBox {
             id: autoRotateCheckbox
             text: qsTr("Auto-rotate model")
             checked: false
         }

         // X plane
         Label {
             text: qsTr("X plane slice (position, width):")
         }

         Slider {
             id: xSliceSlider
             from: 0
             to: 1
             value: 0.5
         }

         Slider {
             id: xSliceWidthSlider
             from: 0
             value: 1
             to: 1
         }

         // Y plane
         Label {
             text: qsTr("Y plane slice (position, width):")
         }

         Slider {
             id: ySliceSlider
             from: 0
             to: 1
             value: 0.5
         }

         Slider {
             id: ySliceWidthSlider
             from: 0
             value: 1
             to: 1
         }

         // Z plane
         Label {
             text: qsTr("Z plane slice (position, width):")
         }

         Slider {
             id: zSliceSlider
             from: 0
             to: 1
             value: 0.5
         }

         Slider {
             id: zSliceWidthSlider
             from: 0
             value: 1
             to: 1
         }

         // Dimensions
         Label {
             text: qsTr("Dimensions (width, height, depth):")
         }

         Row {
             spacing: 5
             TextField {
                 id: dataWidth
                 text: "256"
                 validator: IntValidator {
                     bottom: 1
                     top: 2048
                 }
             }
             TextField {
                 id: dataHeight
                 text: "256"
                 validator: IntValidator {
                     bottom: 1
                     top: 2048
                 }
             }
             TextField {
                 id: dataDepth
                 text: "256"
                 validator: IntValidator {
                     bottom: 1
                     top: 2048
                 }
             }
         }

         Label {
             text: qsTr("Scale (x, y, z):")
         }

         Row {
             spacing: 5
             TextField {
                 id: scaleWidth
                 text: "1"
                 validator: DoubleValidator {
                     bottom: 0.001
                     top: 1000
                     decimals: 4
                 }
             }
             TextField {
                 id: scaleHeight
                 text: "1"
                 validator: DoubleValidator {
                     bottom: 0.001
                     top: 1000
                     decimals: 4
                 }
             }
             TextField {
                 id: scaleDepth
                 text: "1"
                 validator: DoubleValidator {
                     bottom: 0.001
                     top: 1000
                     decimals: 4
                 }
             }
         }

         Label {
             text: qsTr("Data type:")
         }

         ComboBox {
             id: dataTypeComboBox
             model: ["uint8", "uint16", "int16", "float32", "float64"]
         }

         Label {
             text: qsTr("Load Built-in Volume:")
         }

         Row {
             spacing: 5

             Button {
                 text: qsTr("Helix")
                 onClicked: {
                     volumeTextureData.loadAsync("file:///default_helix",
                                                 256, 256, 256, "uint8")
                     spinner.running = true
                 }
             }

             Button {
                 text: qsTr("Box")
                 onClicked: {
                     volumeTextureData.loadAsync("file:///default_box", 256,
                                                 256, 256, "uint8")
                     spinner.running = true
                 }
             }

             Button {
                 text: qsTr("Colormap")
                 onClicked: {
                     volumeTextureData.loadAsync("file:///default_colormap",
                                                 256, 256, 256, "uint8")
                     spinner.running = true
                 }
             }
         }

         Button {
             text: qsTr("Load Volume...")
             onClicked: fileDialog.open()
         }
     }
 }

With all these parts working together the application is able to render and interactively control our volumes. Note that the size of the volumes that this example can render as well as the performance will be limited by your specific GPU.

Files:

Images:

© 2024 The Qt Company Ltd. Documentation contributions included herein are the copyrights of their respective owners.
The documentation provided herein is licensed under the terms of the GNU Free Documentation License version 1.3 as published by the Free Software Foundation.
Qt and respective logos are trademarks of The Qt Company Ltd. in Finland and/or other countries worldwide. All other trademarks are property of their respective owners.
