Example 1: Direct Connection using a Static Source

1. Create a source object

   To create this Source object, first we create the definition file, simpleswitch.rep. This file describes the properties and methods for the object and is input to the Qt Remote Objects Compiler repc. This file only defines interfaces that are necessary to expose to the Replicas.

   simpleswitch.rep

    class SimpleSwitch
    {
        PROP(bool currState=false);
        SLOT(server_slot(bool clientState));
    };


   In simpleswitch.rep,

   • currState holds the current state of the switch.
   • server_slot() allows us to interact with the source - it will be connected to the echoSwitchState(bool newstate) signal.

   For repc to process this file, add the following line to your cmake file:

    qt6_add_repc_sources(directconnectserver
        simpleswitch.rep
    )


   If you're using qmake:

    REPC_SOURCE = simpleswitch.rep


   These instructions are only relevant for the Qt Remote Object module, so you need to add it to your project as well. If you're using CMake, add:

    find_package(Qt6 REQUIRED COMPONENTS RemoteObjects)
    target_link_libraries(directconnectserver PRIVATE Qt6::RemoteObjects)


   If you're using qmake:

    QT       += remoteobjects


   repc creates the rep_SimpleSwitch_source.h header in the build directory that you specify. For more information, see Source.

   repc creates three helper classes for use with QtRO. For this example, we use the basic: SimpleSwitchSimpleSource. It's an abstract class, defined in rep_SimpleSwitch_source.h. We derive from it to define our SimpleSwitch implementation class as shown below:

   simpleswitch.h

    #ifndef SIMPLESWITCH_H
    #define SIMPLESWITCH_H

    #include "rep_simpleswitch_source.h"

    class SimpleSwitch : public SimpleSwitchSimpleSource
    {
        Q_OBJECT
    public:
        SimpleSwitch(QObject *parent = nullptr);
        ~SimpleSwitch();
        void server_slot(bool clientState) override;
    public Q_SLOTS:
        void timeout_slot();
    private:
        QTimer *stateChangeTimer;
    };

    #endif


   In simpleswitch.h,

   • stateChangeTimer is a QTimer that is used to toggle the state of our SimpleSwitch.
   • timeout_slot() is connected to stateChangeTimer's timeout() signal.
   • server_slot() – which is called automatically on the source whenever any replica calls their version of the slot – outputs the received value.
   • currStateChanged(bool), defined in the repc-generated rep_SimpleSwitch_source.h, is emitted whenever currState toggles. In this example, we ignore the signal on the source side, and handle it later on the replica side.

   The definition of our SwitchState class is shown below:

   simpleswitch.cpp

    #include "simpleswitch.h"

    // constructor
    SimpleSwitch::SimpleSwitch(QObject *parent) : SimpleSwitchSimpleSource(parent)
    {
        stateChangeTimer = new QTimer(this); // Initialize timer
        QObject::connect(stateChangeTimer, &QTimer::timeout, this, &SimpleSwitch::timeout_slot); // connect timeout() signal from stateChangeTimer to timeout_slot() of simpleSwitch
        stateChangeTimer->start(2000); // Start timer and set timout to 2 seconds
        qDebug() << "Source Node Started";
    }

    //destructor
    SimpleSwitch::~SimpleSwitch()
    {
        stateChangeTimer->stop();
    }

    void SimpleSwitch::server_slot(bool clientState)
    {
        qDebug() << "Replica state is " << clientState; // print switch state echoed back by client
    }

    void SimpleSwitch::timeout_slot()
    {
        // slot called on timer timeout
        if (currState()) // check if current state is true, currState() is defined in repc generated rep_simpleswitch_source.h
            setCurrState(false); // set state to false
        else
            setCurrState(true); // set state to true
        qDebug() << "Source State is "<<currState();

    }


2. Create a registry

   Because this example uses a direct connection between nodes, we can omit this step.

3. Create a host node

   The host node is created as shown below:

    QRemoteObjectHost srcNode(QUrl(QStringLiteral("local:replica")));


4. Host source object and remoting

   The following statements instantiate the Source object and pass it on to the host to enable "remoting", which is the process of making an object visible to the QtRO network:

    SimpleSwitch srcSwitch; // create simple switch
    srcNode.enableRemoting(&srcSwitch); // enable remoting


   The contents of main.cpp file that implements the steps described above are as follows:

   main.cpp

    #include <QCoreApplication>
    #include "simpleswitch.h"

    int main(int argc, char *argv[])
    {
        QCoreApplication a(argc, argv);

        SimpleSwitch srcSwitch; // create simple switch

        // Create host node without Registry:
        QRemoteObjectHost srcNode(QUrl(QStringLiteral("local:replica")));
        srcNode.enableRemoting(&srcSwitch); // enable remoting/sharing

        return a.exec();
    }

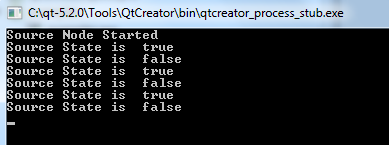

   Compile and run this source-side project. The output, without any replicas created, should look as shown below with the switch state toggling between true and false every two seconds.



The subsequent steps are for creating the replica side of the network, which in this example gets the state of switch from the Source and echoes it back.

Replica Code

1. Use repc to add a replica to your project

   We use the same API definition file as we did on the source side, SimpleSwitch.rep, to create a Replica header file using the repc. If you're using cmake, include the following line in your client side cmake file, specifying a .rep file input:

    qt6_add_repc_replicas(directconnectclient
        simpleswitch.rep
    )


   If you're using qmake, add the following line to your client side .pro file:

    REPC_REPLICA = simpleswitch.rep


   The repc tool generates a rep_SimpleSwitch_replica.h file in the build directory. For more information, see Replica.

2. Create a node to connect with the source's host node

   The following code instantiates the second node on the network and connects it with the source host node:

    QRemoteObjectNode repNode; // create remote object node
    repNode.connectToNode(QUrl(QStringLiteral("local:replica"))); // connect with remote host node


3. Call the node's acquire() to create a pointer to a replica

   First, we instantiate a replica:

    QSharedPointer<SimpleSwitchReplica> ptr;
    ptr.reset(repNode.acquire<SimpleSwitchReplica>()); // acquire replica of source from host node


   Note: acquire() returns a pointer to the replica, but doesn't manage its lifetime. This example shows the recommended process of wrapping the returned pointer in a QSharedPointer or QScopedPointer to ensure that the pointer is always deleted properly.

   main.cpp implements the steps described above and instantiates our object:

   main.cpp

    #include <QCoreApplication>
    #include "client.h"

    int main(int argc, char *argv[])
    {
        QCoreApplication a(argc, argv);

        QSharedPointer<SimpleSwitchReplica> ptr; // shared pointer to hold source replica

        QRemoteObjectNode repNode; // create remote object node
        repNode.connectToNode(QUrl(QStringLiteral("local:replica"))); // connect with remote host node

        ptr.reset(repNode.acquire<SimpleSwitchReplica>()); // acquire replica of source from host node

        Client rswitch(ptr); // create client switch object and pass reference of replica to it

        return a.exec();
    }


   The complete declaration and definition for the Client class is as follows:

   client.h

    #ifndef _CLIENT_H
    #define _CLIENT_H

    #include <QObject>
    #include <QSharedPointer>

    #include "rep_simpleswitch_replica.h"

    class Client : public QObject
    {
        Q_OBJECT
    public:
        Client(QSharedPointer<SimpleSwitchReplica> ptr);
        ~Client() override = default;
        void initConnections();// Function to connect signals and slots of source and client

    Q_SIGNALS:
        void echoSwitchState(bool switchState);// this signal is connected with server_slot(..) on the source object and echoes back switch state received from source

    public Q_SLOTS:
        void recSwitchState_slot(bool); // slot to receive source state
    private:
        bool clientSwitchState; // holds received server switch state
        QSharedPointer<SimpleSwitchReplica> reptr;// holds reference to replica

     };

    #endif


   client.cpp

    #include "client.h"

    // constructor
    Client::Client(QSharedPointer<SimpleSwitchReplica> ptr) :
        QObject(nullptr),reptr(ptr)
    {
        // Connect signal for replica initialized with initialization slot.
        initConnections();
        // We can connect to SimpleSwitchReplica Signals/Slots
        // directly because our Replica was generated by repc.
    }

    void Client::initConnections()
    {
        // initialize connections between signals and slots

        // connect source replica signal currStateChanged() with client's recSwitchState() slot to receive source's current state
        QObject::connect(reptr.data(), &SimpleSwitchReplica::currStateChanged, this, &Client::recSwitchState_slot);
        // connect client's echoSwitchState(..) signal with replica's server_slot(..) to echo back received state
        QObject::connect(this, &Client::echoSwitchState, reptr.data(), &SimpleSwitchReplica::server_slot);
    }

    void Client::recSwitchState_slot(bool value)
    {
        qDebug() << "Received source state "<< value << reptr.data()->currState();
        clientSwitchState = reptr.data()->currState();
        Q_EMIT echoSwitchState(clientSwitchState); // Emit signal to echo received state back to server
    }

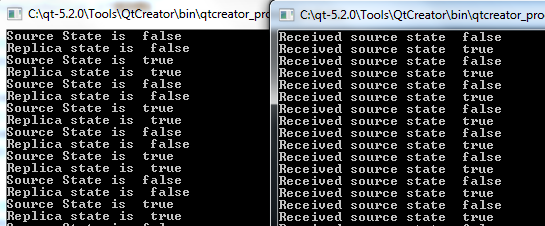

   Compiling and running this example together with the source-side example generates the following output:
