QLineF Class
The QLineF class provides a two-dimensional vector using floating point precision. More...
| Header: | #include <QLineF> |
| CMake: | find_package(Qt6 REQUIRED COMPONENTS Core) target_link_libraries(mytarget PRIVATE Qt6::Core) |
| qmake: | QT += core |
- List of all members, including inherited members
- Deprecated members
- QLineF is part of Painting Classes.
Public Types
| enum | IntersectionType { NoIntersection, UnboundedIntersection, BoundedIntersection } |
Public Functions
| QLineF() | |
| QLineF(const QPointF &p1, const QPointF &p2) | |
| QLineF(qreal x1, qreal y1, qreal x2, qreal y2) | |
| QLineF(const QLine &line) | |
| QPointF | p1() const |
| QPointF | p2() const |
| qreal | x1() const |
| qreal | x2() const |
| qreal | y1() const |
| qreal | y2() const |
| qreal | angle() const |
| qreal | angleTo(const QLineF &line) const |
| QPointF | center() const |
| qreal | dx() const |
| qreal | dy() const |
| QLineF::IntersectionType | intersects(const QLineF &line, QPointF *intersectionPoint = nullptr) const |
| bool | isNull() const |
| qreal | length() const |
| QLineF | normalVector() const |
| QPointF | pointAt(qreal t) const |
| void | setP1(const QPointF &p1) |
| void | setP2(const QPointF &p2) |
| void | setAngle(qreal angle) |
| void | setLength(qreal length) |
| void | setLine(qreal x1, qreal y1, qreal x2, qreal y2) |
| void | setPoints(const QPointF &p1, const QPointF &p2) |
| QLine | toLine() const |
| void | translate(const QPointF &offset) |
| void | translate(qreal dx, qreal dy) |
| QLineF | translated(const QPointF &offset) const |
| QLineF | translated(qreal dx, qreal dy) const |
| QLineF | unitVector() const |
| bool | operator!=(const QLineF &line) const |
| bool | operator==(const QLineF &line) const |
Static Public Members
| QLineF | fromPolar(qreal length, qreal angle) |
Related Non-Members
| QDataStream & | operator<<(QDataStream &stream, const QLineF &line) |
| QDataStream & | operator>>(QDataStream &stream, QLineF &line) |
Detailed Description
A QLineF describes a finite length line (or line segment) on a two-dimensional surface. QLineF defines the start and end points of the line using floating point accuracy for coordinates. Use the toLine() function to retrieve an integer-based copy of this line.
 |  |

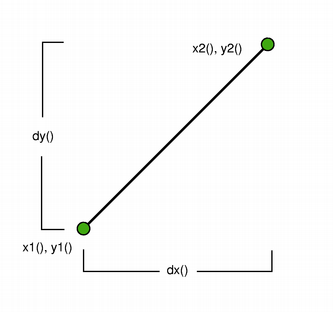

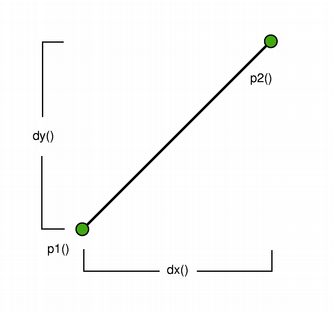

The positions of the line's start and end points can be retrieved using the p1(), x1(), y1(), p2(), x2(), and y2() functions. The dx() and dy() functions return the horizontal and vertical components of the line, respectively.
The line's length can be retrieved using the length() function, and altered using the setLength() function. Similarly, angle() and setAngle() are respectively used for retrieving and altering the angle of the line. Use the isNull() function to determine whether the QLineF represents a valid line or a null line.
The intersects() function determines the IntersectionType for this line and a given line, while the angleTo() function returns the angle between the lines. In addition, the unitVector() function returns a line that has the same starting point as this line, but with a length of only 1, while the normalVector() function returns a line that is perpendicular to this line with the same starting point and length.
Finally, the line can be translated a given offset using the translate() function, and can be traversed using the pointAt() function.
Constraints
QLine is limited to the minimum and maximum values for the int type. Operations on a QLine that could potentially result in values outside this range will result in undefined behavior.
See also QLine, QPolygonF, and QRectF.
Member Type Documentation
enum QLineF::IntersectionType
Describes the intersection between two lines.
 |  |
| QLineF::UnboundedIntersection | QLineF::BoundedIntersection |
| Constant | Value | Description |
|---|---|---|
QLineF::NoIntersection | 0 | Indicates that the lines do not intersect; i.e. they are parallel. |

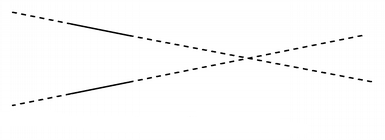

QLineF::UnboundedIntersection | 2 | The two lines intersect, but not within the range defined by their lengths. This will be the case if the lines are not parallel. intersect() will also return this value if the intersect point is within the start and end point of only one of the lines. |

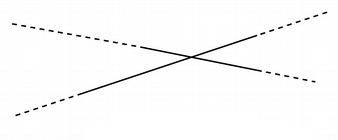

QLineF::BoundedIntersection | 1 | The two lines intersect with each other within the start and end points of each line. |
See also intersects().
Member Function Documentation
[constexpr] QLineF::QLineF()
Constructs a null line.
[constexpr] QLineF::QLineF(const QPointF &p1, const QPointF &p2)
Constructs a line object that represents the line between p1 and p2.
[constexpr] QLineF::QLineF(qreal x1, qreal y1, qreal x2, qreal y2)
Constructs a line object that represents the line between (x1, y1) and (x2, y2).
[constexpr] QLineF::QLineF(const QLine &line)
Construct a QLineF object from the given integer-based line.
See also toLine() and QLine::toLineF().
[constexpr] QPointF QLineF::p1() const
Returns the line's start point.
See also setP1(), x1(), y1(), and p2().
[constexpr] QPointF QLineF::p2() const
Returns the line's end point.
See also setP2(), x2(), y2(), and p1().
[constexpr] qreal QLineF::x1() const
Returns the x-coordinate of the line's start point.
See also p1().
[constexpr] qreal QLineF::x2() const
Returns the x-coordinate of the line's end point.
See also p2().
[constexpr] qreal QLineF::y1() const
Returns the y-coordinate of the line's start point.
See also p1().
[constexpr] qreal QLineF::y2() const
Returns the y-coordinate of the line's end point.
See also p2().
qreal QLineF::angle() const
Returns the angle of the line in degrees.
The return value will be in the range of values from 0.0 up to but not including 360.0. The angles are measured counter-clockwise from a point on the x-axis to the right of the origin (x > 0).
See also setAngle().
qreal QLineF::angleTo(const QLineF &line) const
Returns the angle (in degrees) from this line to the given line, taking the direction of the lines into account. If the lines do not intersect within their range, it is the intersection point of the extended lines that serves as origin (see QLineF::UnboundedIntersection).
The returned value represents the number of degrees you need to add to this line to make it have the same angle as the given line, going counter-clockwise.
See also intersects().
[constexpr] QPointF QLineF::center() const
Returns the center point of this line. This is equivalent to 0.5 * p1() + 0.5 * p2().
[constexpr] qreal QLineF::dx() const
Returns the horizontal component of the line's vector.
[constexpr] qreal QLineF::dy() const
Returns the vertical component of the line's vector.
[static] QLineF QLineF::fromPolar(qreal length, qreal angle)
Returns a QLineF with the given length and angle.
The first point of the line will be on the origin.
Positive values for the angles mean counter-clockwise while negative values mean the clockwise direction. Zero degrees is at the 3 o'clock position.
QLineF::IntersectionType QLineF::intersects(const QLineF &line, QPointF *intersectionPoint = nullptr) const
Returns a value indicating whether or not this line intersects with the given line.
The actual intersection point is extracted to intersectionPoint (if the pointer is valid). If the lines are parallel, the intersection point is undefined.
[constexpr] bool QLineF::isNull() const
Returns true if the line does not have distinct start and end points; otherwise returns false. The start and end points are considered distinct if qFuzzyCompare() can distinguish them in at least one coordinate.
Note: Due to the use of fuzzy comparison, isNull() may return true for lines whose length() is not zero.
See also qFuzzyCompare() and length().
qreal QLineF::length() const
Returns the length of the line.
See also setLength() and isNull().

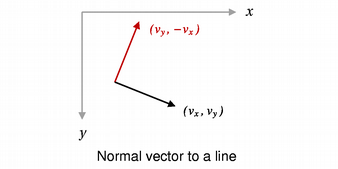

[constexpr] QLineF QLineF::normalVector() const
Returns a line that is perpendicular to this line with the same starting point and length.
See also unitVector().
[constexpr] QPointF QLineF::pointAt(qreal t) const
Returns the point at the position specified by finite parameter t. The function returns the line's start point if t = 0, and its end point if t = 1.
void QLineF::setP1(const QPointF &p1)
Sets the starting point of this line to p1.
void QLineF::setP2(const QPointF &p2)
Sets the end point of this line to p2.
void QLineF::setAngle(qreal angle)
Sets the angle of the line to the given angle (in degrees). This will change the position of the second point of the line such that the line has the given angle.
Positive values for the angles mean counter-clockwise while negative values mean the clockwise direction. Zero degrees is at the 3 o'clock position.
See also angle().
void QLineF::setLength(qreal length)
Sets the length of the line to the given finite length. QLineF will move the end point - p2() - of the line to give the line its new length, unless length() was previously zero, in which case no scaling is attempted.
See also length() and unitVector().
void QLineF::setLine(qreal x1, qreal y1, qreal x2, qreal y2)
Sets this line to the start in x1, y1 and end in x2, y2.
See also setP1(), setP2(), p1(), and p2().
void QLineF::setPoints(const QPointF &p1, const QPointF &p2)
Sets the start point of this line to p1 and the end point of this line to p2.
See also setP1(), setP2(), p1(), and p2().
[constexpr] QLine QLineF::toLine() const
Returns an integer-based copy of this line.
Note that the returned line's start and end points are rounded to the nearest integer.
See also QLineF() and QLine::toLineF().
void QLineF::translate(const QPointF &offset)
Translates this line by the given offset.
void QLineF::translate(qreal dx, qreal dy)
This is an overloaded function.
Translates this line the distance specified by dx and dy.
[constexpr] QLineF QLineF::translated(const QPointF &offset) const
Returns this line translated by the given offset.
[constexpr] QLineF QLineF::translated(qreal dx, qreal dy) const
This is an overloaded function.
Returns this line translated the distance specified by dx and dy.
QLineF QLineF::unitVector() const
Returns the unit vector for this line, i.e a line starting at the same point as this line with a length of 1.0, provided the line is non-null.
See also normalVector() and setLength().
[constexpr] bool QLineF::operator!=(const QLineF &line) const
Returns true if the given line is not the same as this line.
A line is different from another line if their start or end points differ, or the internal order of the points is different.
[constexpr] bool QLineF::operator==(const QLineF &line) const
Returns true if the given line is the same as this line.
A line is identical to another line if the start and end points are identical, and the internal order of the points is the same.
Related Non-Members
QDataStream &operator<<(QDataStream &stream, const QLineF &line)
Writes the given line to the given stream and returns a reference to the stream.
See also Serializing Qt Data Types.
QDataStream &operator>>(QDataStream &stream, QLineF &line)
Reads a line from the given stream into the given line and returns a reference to the stream.
See also Serializing Qt Data Types.
