Use Case - Visual Elements In QML

The Rectangle Type

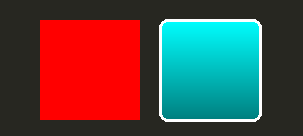

For the most basic of visuals, Qt Quick provides a Rectangle type to draw rectangles. These rectangles can be colored with a color or a vertical gradient. The Rectangle type can also draw borders on the rectangle.

For drawing custom shapes beyond rectangles, see the Canvas type or display a pre-rendered image using the Image type.

 import QtQuick

 Item {

     width: 320
     height: 480

     Rectangle {
         color: "#272822"
         width: 320
         height: 480
     }

     // This element displays a rectangle with a gradient and a border
     Rectangle {
         x: 160
         y: 20
         width: 100
         height: 100
         radius: 8 // This gives rounded corners to the Rectangle
         gradient: Gradient { // This sets a vertical gradient fill
             GradientStop { position: 0.0; color: "aqua" }
             GradientStop { position: 1.0; color: "teal" }
         }
         border { width: 3; color: "white" } // This sets a 3px wide black border to be drawn
     }

     // This rectangle is a plain color with no border
     Rectangle {
         x: 40
         y: 20
         width: 100
         height: 100
         color: "red"
     }
 }

The Image Type

Qt Quick provides an Image type which may be used to display images. The Image type has a source property whose value can be a remote or local URL, or the URL of an image file embedded in a compiled resource file.

 // This element displays an image. Because the source is online, it may take some time to fetch
 Image {
     x: 40
     y: 20
     width: 61
     height: 73
     source: "http://codereview.qt-project.org/static/logo_qt.png"
 }

For more complex images there are other types similar to Image. BorderImage draws an image with grid scaling, suitable for images used as borders. AnimatedImage plays animated .gif and .mng images. AnimatedSprite and SpriteSequence play animations comprised of multiple frames stored adjacently in a non animated image format.

For displaying video files and camera data, see the Qt Multimedia module.

Shared Visual Properties

All visual items provided by Qt Quick are based on the Item type, which provides a common set of attributes for visual items, including opacity and transform attributes.

Opacity and Visibility

The QML object types provided by Qt Quick have built-in support for opacity. Opacity can be animated to allow smooth transitions to or from a transparent state. Visibility can also be managed with the visible property more efficiently, but at the cost of not being able to animate it.

 import QtQuick

 Item {

     width: 320
     height: 480

     Rectangle {
         color: "#272822"
         width: 320
         height: 480
     }

     Item {
         x: 20
         y: 270
         width: 200
         height: 200
         MouseArea {
             anchors.fill: parent
             onClicked: topRect.visible = !topRect.visible
         }
         Rectangle {
             x: 20
             y: 20
             width: 100
             height: 100
             color: "red"
         }
         Rectangle {
             id: topRect
             opacity: 0.5

             x: 100
             y: 100
             width: 100
             height: 100
             color: "blue"
         }
     }
 }

Transforms

Qt Quick types have built-in support for transformations. If you wish to have your visual content rotated or scaled, you can set the Item::rotation or Item::scale property. These can also be animated.

 import QtQuick

 Item {

     width: 320
     height: 480

     Rectangle {
         color: "#272822"
         width: 320
         height: 480
     }

     Rectangle {
         rotation: 45 // This rotates the Rectangle by 45 degrees
         x: 20
         y: 160
         width: 100
         height: 100
         color: "blue"
     }
     Rectangle {
         scale: 0.8 // This scales the Rectangle down to 80% size
         x: 160
         y: 160
         width: 100
         height: 100
         color: "green"
     }
 }

For more complex transformations, see the Item::transform property.
