OpacityMask QML Type

Masks the source item with another item. More...

Import Statement:	import Qt5Compat.GraphicalEffects
Since:	QtGraphicalEffects 1.0
Inherits:	Item

List of all members, including inherited members

Properties

cached : bool
invert : bool
maskSource : variant
source : variant

Detailed Description

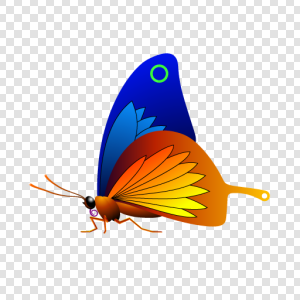

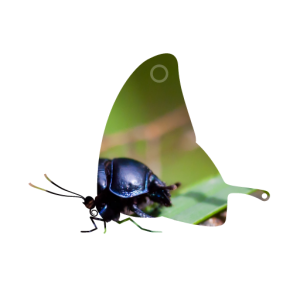

Source	MaskSource	Effect applied

Example

The following example shows how to apply the effect.

 import QtQuick
 import Qt5Compat.GraphicalEffects

 Item {
     width: 300
     height: 300

     Image {
         id: bug
         source: "images/bug.jpg"
         sourceSize: Qt.size(parent.width, parent.height)
         smooth: true
         visible: false
     }

     Image {
         id: mask
         source: "images/butterfly.png"
         sourceSize: Qt.size(parent.width, parent.height)
         smooth: true
         visible: false
     }

     OpacityMask {
         anchors.fill: bug
         source: bug
         maskSource: mask
     }
 }

Property Documentation

cached : bool

This property allows the effect output pixels to be cached in order to improve the rendering performance.

Every time the source or effect properties are changed, the pixels in the cache must be updated. Memory consumption is increased, because an extra buffer of memory is required for storing the effect output.

It is recommended to disable the cache when the source or the effect properties are animated.

By default, the property is set to false.

Note: It is not supported to let the effect include itself, for instance by setting maskSource to the effect's parent.

invert : bool

This property controls how the alpha values of the sourceMask will behave.

If this property is false, the resulting opacity is the source alpha multiplied with the mask alpha, As * Am.

If this property is true, the resulting opacity is the source alpha multiplied with the inverse of the mask alpha, As * (1 - Am).

The default is false.

maskSource : variant

This property defines the item that is going to be used as the mask. The mask item gets rendered into an intermediate pixel buffer and the alpha values from the result are used to determine the source item's pixels visibility in the display.

Original	Mask	Effect applied

source : variant

This property defines the source item that is going to be masked.

Note: It is not supported to let the effect include itself, for instance by setting source to the effect's parent.
