QML Video Recorder

Recording audio and video using Qt Quick.

QML Recorder demonstrates a simple application that can record audio and video separate or together, using a microphone, a camera, or with screen capturing.

Running the Example

To run the example from Qt Creator, open the Welcome mode and select the example from Examples. For more information, visit Building and Running an Example.

Overview

At its core, this is a QML application, see Getting Started Programming with Qt Quick. This documentation is focused on how this example uses the Qt Multimedia QML Types.

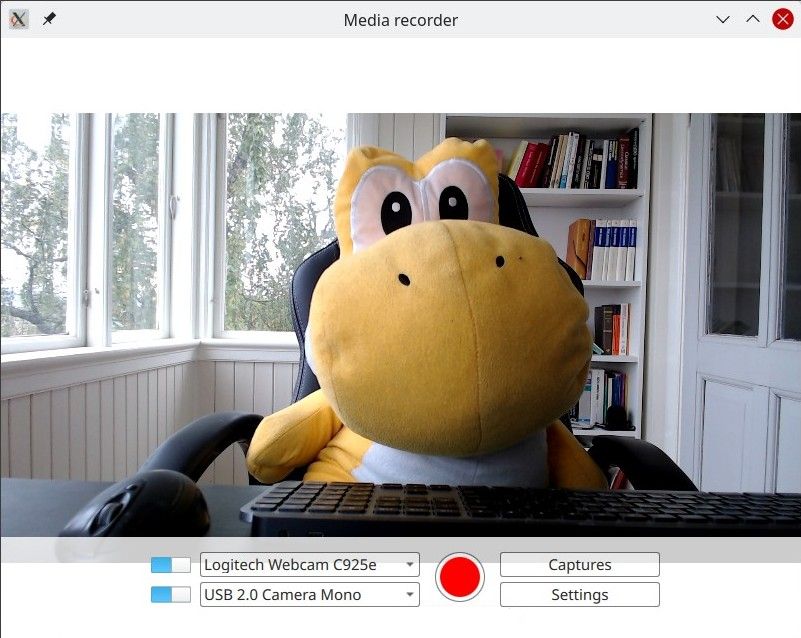

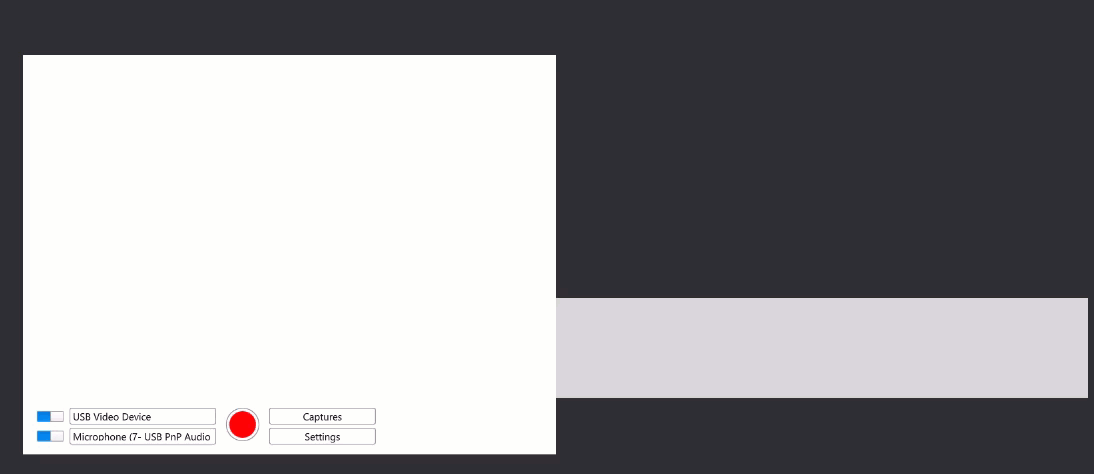

"Animation cycling through qml objects declared in main.qml"

The example uses the QML Camera and AudioInput types connected to a CaptureSession. A MediaRecorder object is then used to record the captured audio and video.

In addition to QtMultimedia, features of Qt Quick Windows, Controls, and Layouts are used to implement the graphic user interface and functionality. Playback won't be covered here, for that see the QML Media Player Example.

The example demonstrates the following:

  • Input devices can be selected.
  • An input type switched off.
  • Settings for capturing such as quality, codec choice, file format, and assigning metadata.
  • Captured files are stored and can be played back.

Recording

The application implements recording.

captureSession

In main.qml, captureSession is declared like so:

     CaptureSession {
         id: captureSession
         recorder: recorder
         audioInput: controls.audioInput
         camera: controls.camera
         screenCapture: controls.screenCapture
         windowCapture: controls.windowCapture
         videoOutput: videoOutput
     }
recorder

In main.qml, the MediaRecorder recorder handles recording media as well as capturing a thumbnail for the file and appending it to a ListModel, mediaList.

     MediaRecorder {
         id: recorder
         onRecorderStateChanged:
             (state) => {
                 if (state === MediaRecorder.StoppedState) {
                     root.contentOrientation = Qt.PrimaryOrientation
                     mediaList.append()
                 } else if (state === MediaRecorder.RecordingState && captureSession.camera) {
                     // lock orientation while recording and create a preview image
                     root.contentOrientation = root.screen.orientation;
                     videoOutput.grabToImage(function(res) { mediaList.mediaThumbnail = res.url })
                 }
             }
         onActualLocationChanged: (url) => { mediaList.mediaUrl = url }
         onErrorOccurred: { recorderErrorText.text = recorder.errorString; recorderError.open(); }
     }

mediaList is declared in the Frame mediaListFrame

     Frame {
         id: mediaListFrame
         height: 150
         width: parent.width
         anchors.bottom: controlsFrame.top
         x: controls.capturesVisible ? 0 : parent.width
         background: Rectangle {
             anchors.fill: parent
             color: palette.base
             opacity: 0.8
         }

         Behavior on x { NumberAnimation { duration: 200 } }

         MediaList {
             id: mediaList
             anchors.fill: parent
             playback: playback
controls

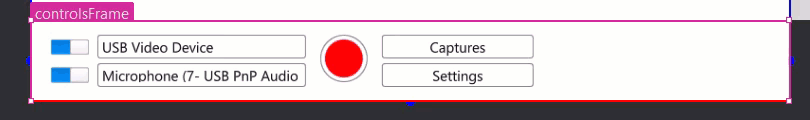

These are defined in Controls.qml and declared in main.qml.

Its root is a Row that contains the Columns inputControls, recordButton, optionButtons, each defined in their own .qml files.

Selecting a video source

Defined in VideoSourceSelect.qml, VideoSourceSlect is comprised of a Switch and a ComboBox and enables the user to select from available cameras.

 Row {
     id: root
     height: Style.height
     property Camera selectedCamera: cameraAvailable ? camera : null
     property ScreenCapture selectedScreenCapture: screenAvailable ? screenCapture : null
     property WindowCapture selectedWindowCapture: windowAvailable ? windowCapture : null

     property bool sourceAvailable: typeof comboBox.currentValue !== 'undefined' &&
                                    comboBox.currentValue.type !== 'toggler' &&
                                    videoSourceSwitch.checked

     property bool cameraAvailable: sourceAvailable && comboBox.currentValue.type === 'camera'
     property bool screenAvailable: sourceAvailable && comboBox.currentValue.type === 'screen'
     property bool windowAvailable: sourceAvailable && comboBox.currentValue.type === 'window'

     Component.onCompleted: {
         videoSourceModel.populate()

         for (var i = 0; i < videoSourceModel.count; i++) {
             if (videoSourceModel.get(i).value.type !== 'toggler') {
                 comboBox.currentIndex = i
                 break
             }
         }
     }

     Camera {
         id: camera
         active: cameraAvailable
     }

     ScreenCapture {
         id: screenCapture
         active: screenAvailable
     }

     WindowCapture {
         id: windowCapture
         active: windowAvailable
     }

     MediaDevices { id: mediaDevices
         onVideoInputsChanged: {

             videoSourceModel.populate()

             for (var i = 0; i < videoSourceModel.count; i++) {
                 if (videoSourceModel.get(i).value.type !== 'toggler') {
                     comboBox.currentIndex = i
                     break
                 }
             }
         }
     }

     Switch {
         id: videoSourceSwitch
         anchors.verticalCenter: parent.verticalCenter
         checked: true
     }

     ListModel {
         id: videoSourceModel
         property var enabledSources: {
             'camera': true,
             'screen': true,
             'window': false
         }

         function toggleEnabledSource(type) {
             enabledSources[type] = !enabledSources[type]
             populate()
         }

         function appendItem(text, value) {
             append({ text: text, value: value})
         }

         function appendToggler(name, sourceType) {
             appendItem((enabledSources[sourceType] ? "- Hide " : "+ Show ") + name,
                        { type: 'toggler', 'sourceType': sourceType })
         }

         function populate() {
             clear()

             appendToggler('Cameras', 'camera')
             if (enabledSources['camera'])
                 for (var camera of mediaDevices.videoInputs)
                     appendItem(camera.description, { type: 'camera', camera: camera })

             appendToggler('Screens', 'screen')
             if (enabledSources['screen'])
                 for (var screen of Application.screens)
                     appendItem(screen.name, { type: 'screen', screen: screen })

             appendToggler('Windows', 'window')
             if (enabledSources['window'])
                 for (var window of windowCapture.capturableWindows())
                     appendItem(window.description, { type: 'window', window: window })
         }
     }

comboBox, declared in the above snippet, assigns the current video source.

     ComboBox {
         id: comboBox
         width: Style.widthLong
         height: Style.height
         background: StyleRectangle { anchors.fill: parent }
         model: videoSourceModel
         displayText: typeof currentValue === 'undefined' ||
                      currentValue.type === 'toggler' ? "Unavailable" : currentText
         font.pointSize: Style.fontSize
         textRole: "text"
         valueRole: "value"
         onCurrentValueChanged: {
             if (typeof currentValue === 'undefined')
                 return
             if (currentValue.type === 'screen')
                 screenCapture.screen = currentValue.screen
             else if (currentValue.type === 'camera')
                 camera.cameraDevice = currentValue.camera
Selecting an audio input

Implemented in the same way as Selecting a video source and defined in AudioInputSelect.qml like so:

 Row {
     id: root
     height: Style.height
     property AudioInput selected: available ? audioInput : null
     property bool available: (typeof comboBox.currentValue !== 'undefined') && audioSwitch.checked

     Component.onCompleted: {
         audioInputModel.populate()
         comboBox.currentIndex = 0
     }

     MediaDevices { id: mediaDevices }

     AudioInput { id: audioInput; muted: !audioSwitch.checked }

     Switch {
         id: audioSwitch;
         height: Style.height;
         checked: true
     }

     ListModel {
         id: audioInputModel
         property var audioInputs: mediaDevices.audioInputs

         function populate() {
             audioInputModel.clear()

             for (var audioDevice of audioInputs)
                 audioInputModel.append({ text: audioDevice.description, value:
                                         { type: 'audioDevice', audioDevice: audioDevice } })
         }
     }
     ComboBox {
         id: comboBox
         width: Style.widthLong
         height: Style.height
         background: StyleRectangle { anchors.fill: parent }
         model: audioInputModel
         textRole: "text"
         font.pointSize: Style.fontSize
         displayText: typeof currentValue === 'undefined' ? "unavailable" : currentText
         valueRole: "value"

Example project @ code.qt.io
