DistortionRipple QML Type
A ripple distortion effect. More...
Import Statement: | import QtQuick3D.Effects 6.7 |
Status: | Deprecated since 6.5 |
This type is deprecated since QtQuick3D.Effects 6.5. We strongly advise against using it in new code.
Properties
- center : vector2d
- distortionHeight : real
- distortionPhase : real
- distortionWidth : real
- radius : real
Detailed Description
Use ExtendedSceneEnvironment, MultiEffect, or user-defined effects via the Effect type instead.
Warning: All pre-made standalone effects in QtQuick3D.Effects are considered deprecated starting with Qt 6.5. Applications are advised to use ExtendedSceneEnvironment or MultiEffect instead, when applicable, or alternatively provide their own custom post-processing effect via the Effect type.

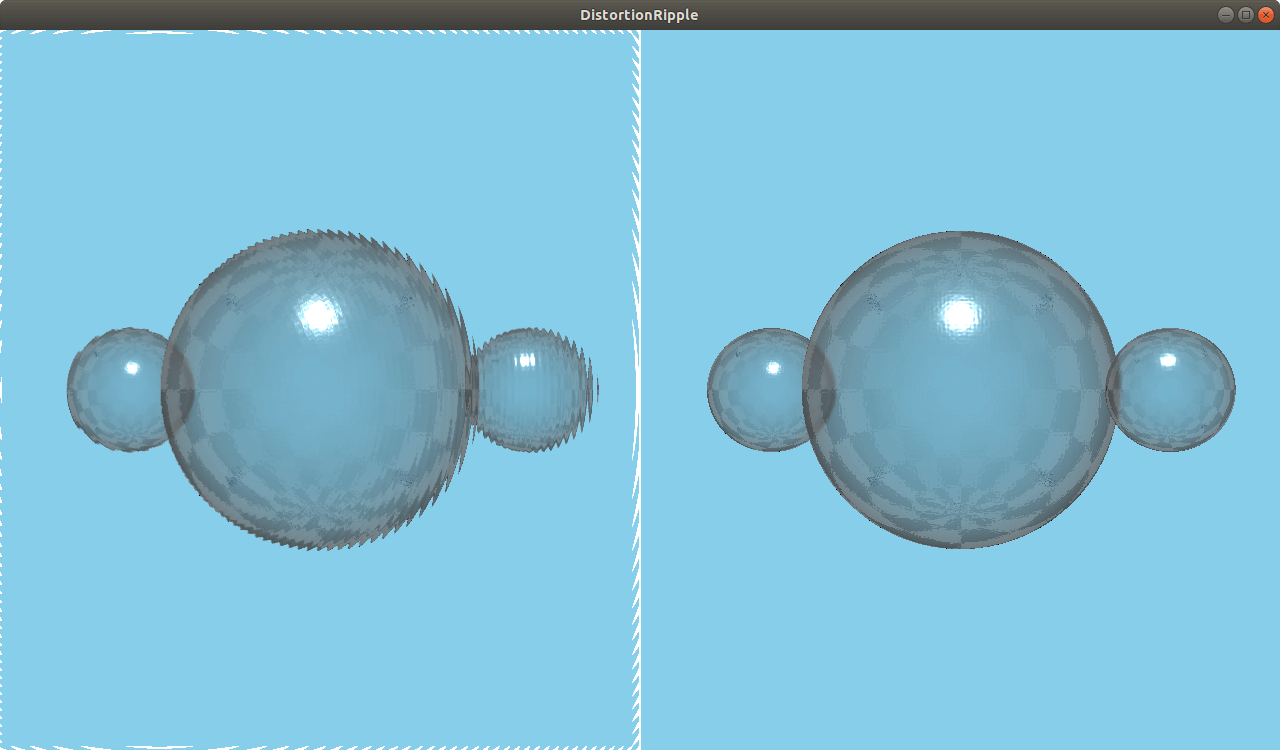

The DistortionRipple effect adds a wavelike distortion of circular ripples around a center point.
Property Documentation
center : vector2d |
The center point of the distortion. The default is Qt.vector2d(0.5, 0.5)
, the center of the scene.
distortionHeight : real |
The distortion amount. Sensible values are in the range [0...100]
. The default value is 10
.
distortionPhase : real |
The offset of each wave. Animate this property to see the waves move. Sensible values are in the range [0...360]
. The default value is 0
.
distortionWidth : real |
The width of a ripple. Sensible values are in the range [2...100]
. The default value is 10
.
radius : real |
How far the ripples extend from the center point. Sensible values are in the range [0...100]
. The default value is 100
.
