DistortionSphere QML Type

A sphere distortion effect. More...

Import Statement: import QtQuick3D.Effects 6.7
Status: Deprecated since 6.5

This type is deprecated since QtQuick3D.Effects 6.5. We strongly advise against using it in new code.

Properties

Detailed Description

Use ExtendedSceneEnvironment, MultiEffect, or user-defined effects via the Effect type instead.

Warning: All pre-made standalone effects in QtQuick3D.Effects are considered deprecated starting with Qt 6.5. Applications are advised to use ExtendedSceneEnvironment or MultiEffect instead, when applicable, or alternatively provide their own custom post-processing effect via the Effect type.

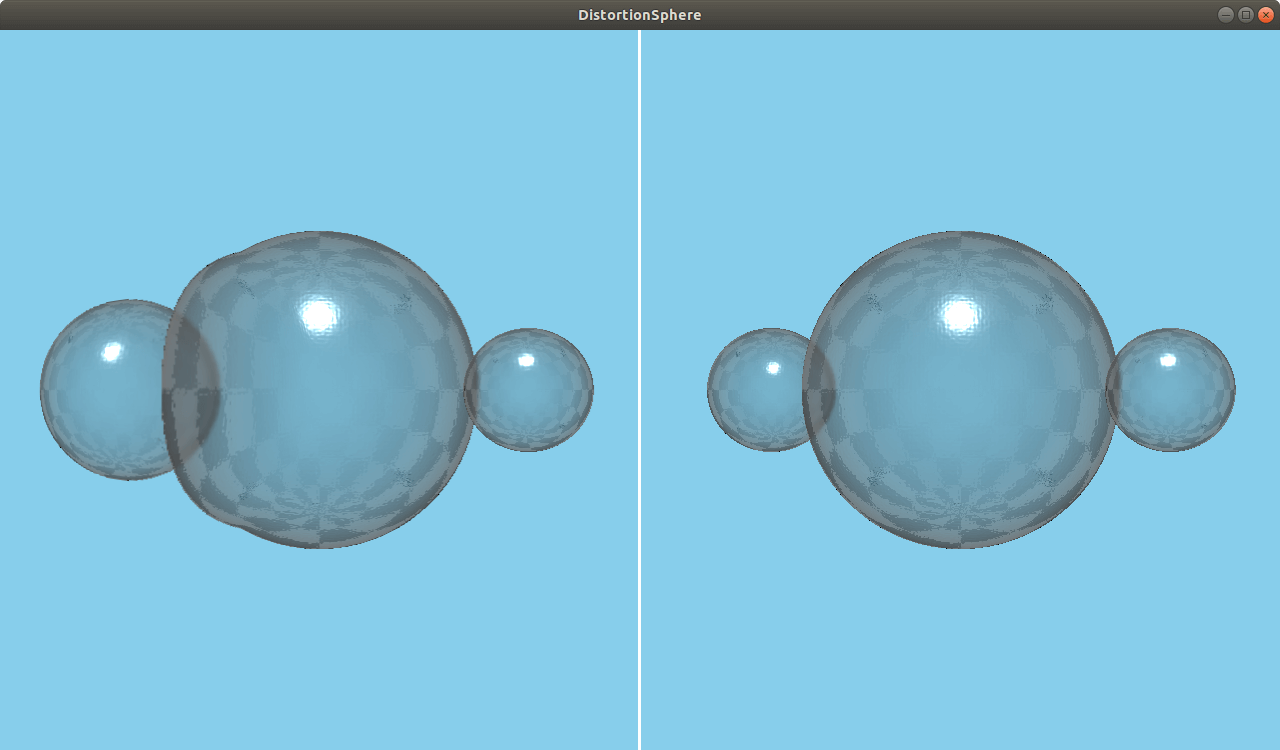

The DistortionSphere effect creates a 3D effect of wrapping the scene around a spherical shape.

Property Documentation

center : vector2d

The center point of the distortion. The default is Qt.vector2d(0.5, 0.5), the center of the scene.


distortionHeight : real

The distortion amount. The range is [-1...1], where positive values distort towards the camera, and negative values distort away from the camera. The default value is 0.5.


radius : real

How far the distortion extends from the center point. The range is [0...1]. The default value is 0.25.
