DistortionSpiral QML Type
A spiral distortion effect. More...
Import Statement: | import QtQuick3D.Effects 6.7 |
Status: | Deprecated since 6.5 |
This type is deprecated since QtQuick3D.Effects 6.5. We strongly advise against using it in new code.
Properties
- center : vector2d
- distortionStrength : real
- radius : real
Detailed Description
Use ExtendedSceneEnvironment, MultiEffect, or user-defined effects via the Effect type instead.
Warning: All pre-made standalone effects in QtQuick3D.Effects are considered deprecated starting with Qt 6.5. Applications are advised to use ExtendedSceneEnvironment or MultiEffect instead, when applicable, or alternatively provide their own custom post-processing effect via the Effect type.

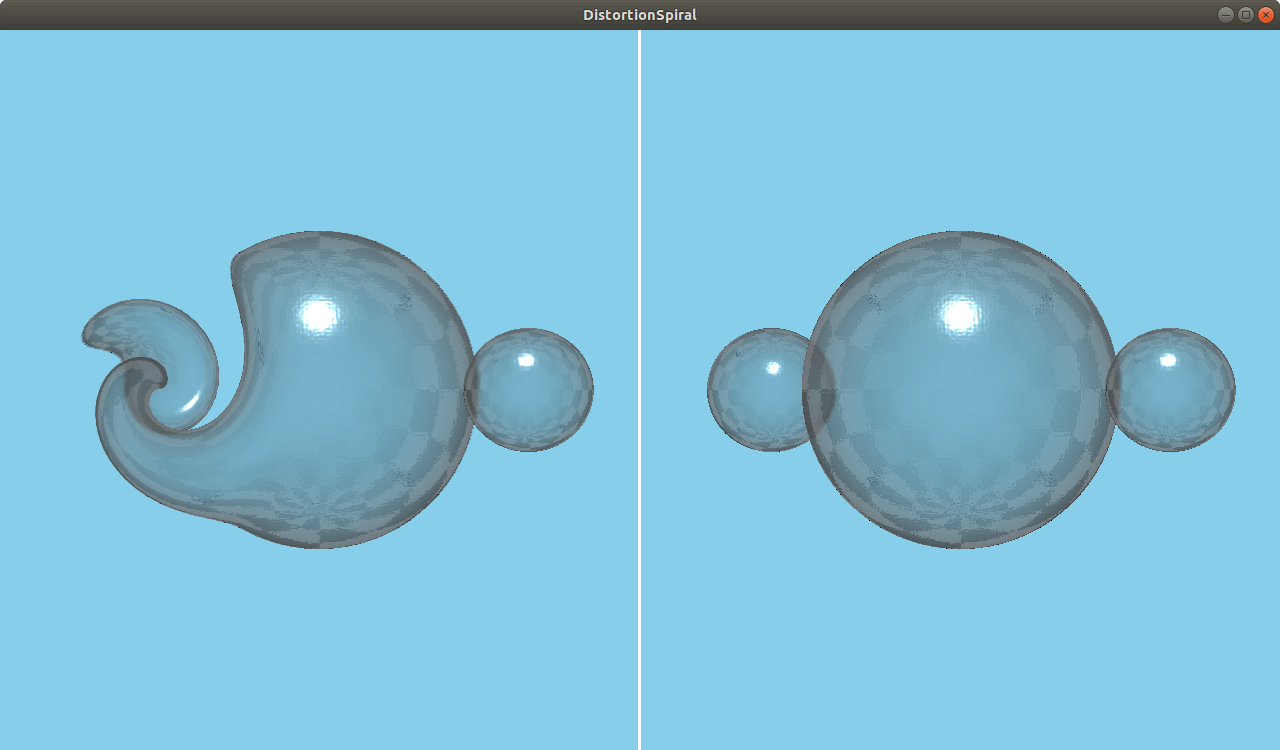

The DistortionSpiral effect creates a twirl-shaped distortion.
Property Documentation
center : vector2d |
The center point of the distortion. The default is Qt.vector2d(0.5, 0.5)
, the center of the scene.
distortionStrength : real |
The distortion amount. The range is [-10...10]
. The default value is 1.0
.
radius : real |
How far the distortion extends from the center point. The range is [0...1]
. The default value is 0.25
.
