Emboss QML Type

An emboss effect. More...

Import Statement: import QtQuick3D.Effects 6.7
Status: Deprecated since 6.5

This type is deprecated since QtQuick3D.Effects 6.5. We strongly advise against using it in new code.

Properties

Detailed Description

Use ExtendedSceneEnvironment, MultiEffect, or user-defined effects via the Effect type instead.

Warning: All pre-made standalone effects in QtQuick3D.Effects are considered deprecated starting with Qt 6.5. Applications are advised to use ExtendedSceneEnvironment or MultiEffect instead, when applicable, or alternatively provide their own custom post-processing effect via the Effect type.

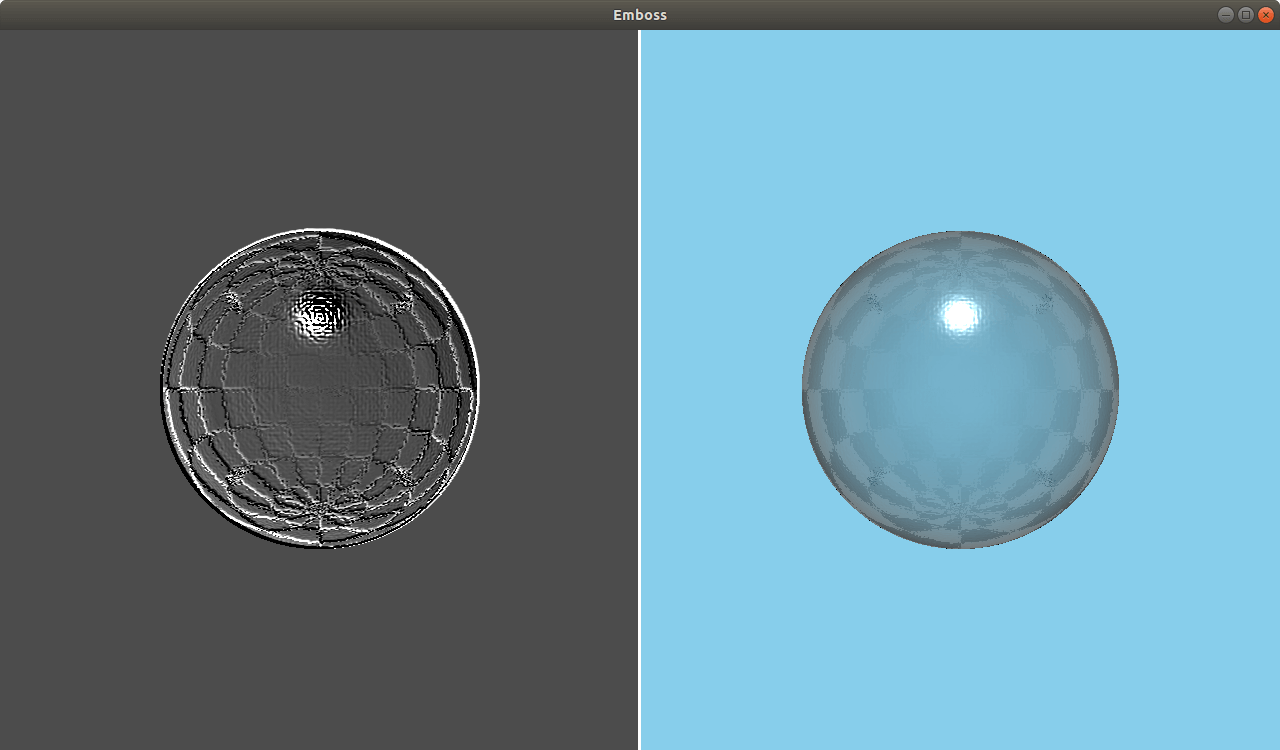

The Emboss effect replaces each pixel either by a highlight or a shadow, depending on light/dark boundaries on the scene. Low contrast areas are replaced by a gray background. The embossed result represents the rate of color change at each location.

Property Documentation

amount : real

The strength of the emboss effect. Sensible values are in the range [0...0.01]. The default value is 0.003.
