AxisHelper QML Type

Visual helper for showing the 3 axes and a grid in a 3D scene. More...

• List of all members, including inherited members

Properties

• enableAxisLines : bool
• enableXYGrid : bool
• enableXZGrid : bool
• enableYZGrid : bool
• gridColor : color
• gridOpacity : real

Detailed Description

The X axis is red, the Y axis is green, and the Z axis is blue.

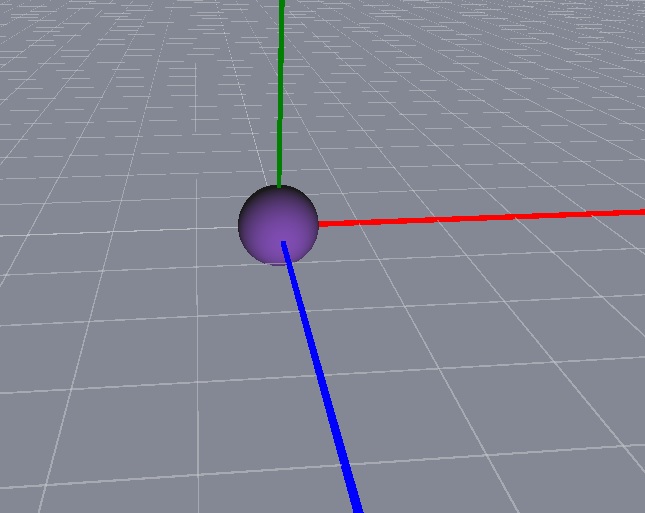

The example scene here has a Sphere at position (0, 0, 0) and an AxisHelper object. With the WasdController helper one can conveniently navigate the scene.

 View3D {
     anchors.fill: parent
     camera: camera

     PerspectiveCamera {
         id: camera
         position: Qt.vector3d(0, 0, 600)
     }

     DirectionalLight {
         position: Qt.vector3d(-500, 500, -100)
         color: Qt.rgba(0.4, 0.2, 0.6, 1.0)
         ambientColor: Qt.rgba(0.1, 0.1, 0.1, 1.0)
     }

     Model {
         source: "#Sphere"
         materials: [ DefaultMaterial { } ]
     }

     AxisHelper {
     }
 }

 WasdController {
     controlledObject: camera
 }

Property Documentation
