Qt Quick 3D - Simple Skinning Example

Generally most skin animations will be designed by modeling tools, and Quick3D also supports glTF formats through the Balsam importer and Qt Design Studio. This example shows how each property is used for the skin animation in Quick3D.

Make a skinning geometry.

To use custom geometry data, we will define a geometry having positions, joints, weights, and indexes.

 Q_OBJECT
 QML_NAMED_ELEMENT(SkinGeometry)
 Q_PROPERTY(QList<QVector3D> positions READ positions WRITE setPositions NOTIFY positionsChanged)
 Q_PROPERTY(QList<qint32> joints READ joints WRITE setJoints NOTIFY jointsChanged)
 Q_PROPERTY(QList<float> weights READ weights WRITE setWeights NOTIFY weightsChanged)
 Q_PROPERTY(QList<quint32> indexes READ indexes WRITE setIndexes NOTIFY indexesChanged)

Each position is a vertex position and each vertex has 4 joints' indexes and corresponding weights.

Set up skinned data in QML

Position data and indexes

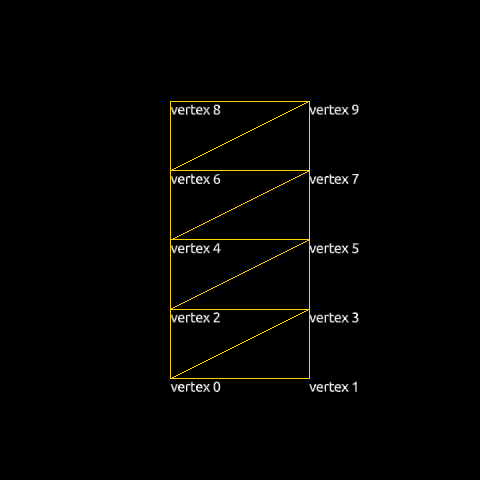

We will draw 8 triangles with 10 vertexes. The table below shows the QML code and a visualization of the vertexes.

 positions: [
     Qt.vector3d(0.0, 0.0, 0.0), // vertex 0
     Qt.vector3d(1.0, 0.0, 0.0), // vertex 1
     Qt.vector3d(0.0, 0.5, 0.0), // vertex 2
     Qt.vector3d(1.0, 0.5, 0.0), // vertex 3
     Qt.vector3d(0.0, 1.0, 0.0), // vertex 4
     Qt.vector3d(1.0, 1.0, 0.0), // vertex 5
     Qt.vector3d(0.0, 1.5, 0.0), // vertex 6
     Qt.vector3d(1.0, 1.5, 0.0), // vertex 7
     Qt.vector3d(0.0, 2.0, 0.0), // vertex 8
     Qt.vector3d(1.0, 2.0, 0.0)  // vertex 9
 ]
 indexes: [
     0, 1, 3, // triangle 0
     0, 3, 2, // triangle 1
     2, 3, 5, // triangle 2
     2, 5, 4, // triangle 3
     4, 5, 7, // triangle 4
     4, 7, 6, // triangle 5
     6, 7, 9, // triangle 6
     6, 9, 8  // triangle 7
 ]

Joints and weights data

Every vertex needs to specify the indexes of the joints that should have an influence on it during the skinning process. For each vertex we store these indexes as 4D vectors (Qt limits the number of joints that may influence a vertex to 4). Our geometry will have just two joint nodes (0 and 1), but since we use 4D vectors we set the remaining two joint indexes and their weights to 0.

 joints: [
     0, 1, 0, 0, // vertex 0
     0, 1, 0, 0, // vertex 1
     0, 1, 0, 0, // vertex 2
     0, 1, 0, 0, // vertex 3
     0, 1, 0, 0, // vertex 4
     0, 1, 0, 0, // vertex 5
     0, 1, 0, 0, // vertex 6
     0, 1, 0, 0, // vertex 7
     0, 1, 0, 0, // vertex 8
     0, 1, 0, 0  // vertex 9
 ]

Corresponding weight values are as below.

 weights: [
     1.00, 0.00, 0.0, 0.0, // vertex 0
     1.00, 0.00, 0.0, 0.0, // vertex 1
     0.75, 0.25, 0.0, 0.0, // vertex 2
     0.75, 0.25, 0.0, 0.0, // vertex 3
     0.50, 0.50, 0.0, 0.0, // vertex 4
     0.50, 0.50, 0.0, 0.0, // vertex 5
     0.25, 0.75, 0.0, 0.0, // vertex 6
     0.25, 0.75, 0.0, 0.0, // vertex 7
     0.00, 1.00, 0.0, 0.0, // vertex 8
     0.00, 1.00, 0.0, 0.0  // vertex 9
 ]

Skeleton and Joint hierarchy

For skinning, we add a skeleton property to the Model:

 skeleton: qmlskeleton
 Skeleton {
     id: qmlskeleton
     Joint {
         id: joint0
         index: 0
         skeletonRoot: qmlskeleton
         Joint {
             id: joint1
             index: 1
             skeletonRoot: qmlskeleton
             eulerRotation.z: 45
         }
     }
 }

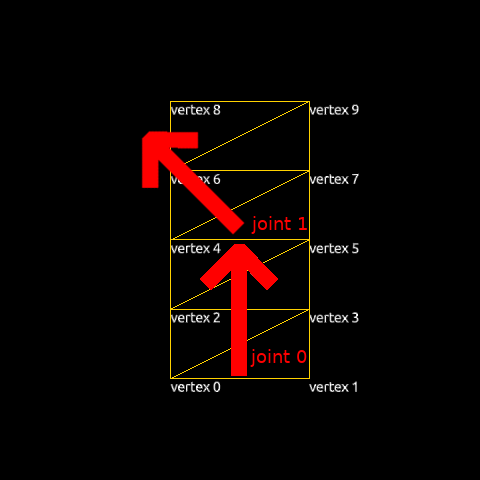

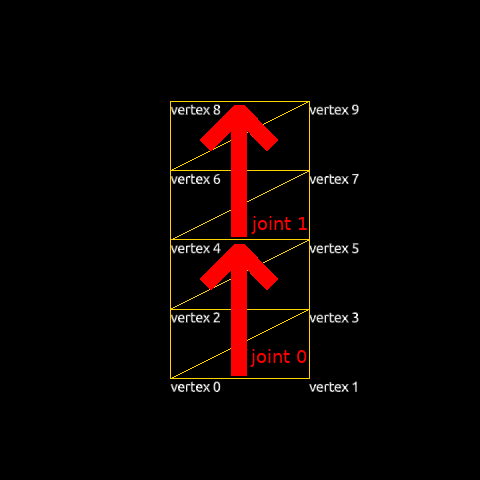

The two Joints are connected in a Skeleton. We will rotate joint1 45 degrees around the z-axis. The images below show how the joints are placed in the geometry and how the initial skeleton is oriented.

Placing models using inverseBindPoses

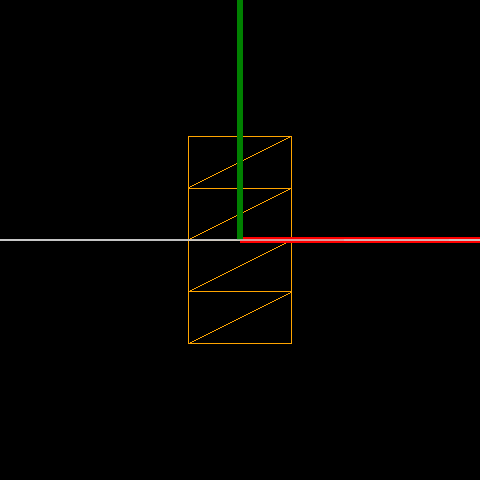

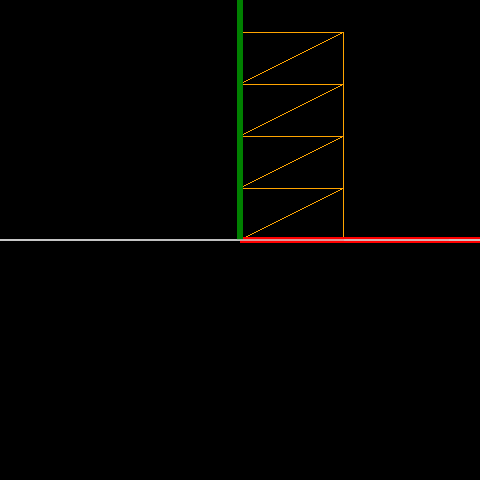

Once a model has a valid skeleton, it is necessary to define the initial pose of the skeleton. This defines the baseline for the skeletal animation: moving a joint from its initial position causes the model's vertexes to move according to the joints and weights tables. The geometry of each node is specified in a peculiar way: Model.inverseBindPoses is set to the inverse of the matrix that would transform the joint to its initial position. In order to move it to the center, we will simply set the same transform for both joints: a matrix that translates -0.5 along the x-axis and -1.0 along the y-axis.

 inverseBindPoses: [
     Qt.matrix4x4(1, 0, 0, -0.5,
                  0, 1, 0, -1,
                  0, 0, 1, 0,
                  0, 0, 0, 1),
     Qt.matrix4x4(1, 0, 0, -0.5,
                  0, 1, 0, -1,
                  0, 0, 1, 0,
                  0, 0, 0, 1)
 ]

Animate with Joint nodes

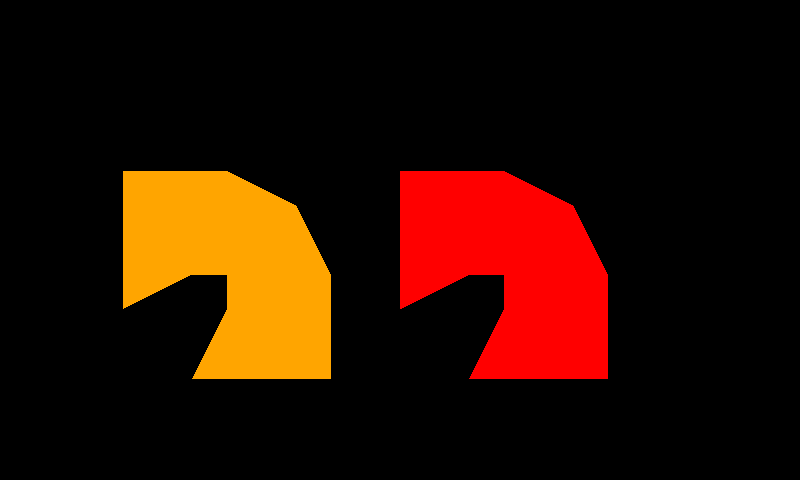

Now that we have prepared a skinned object, we can animate it by changing the Joints' properties, specifically eulerRotation.

 Timeline {
     id: timeline0
     startFrame: 0
     endFrame: 1000
     currentFrame: 0
     enabled: true
     animations: [
         TimelineAnimation {
             duration: 5000
             from: 0
             to: 1000
             running: true
         }
     ]

     KeyframeGroup {
         target: joint1
         property: "eulerRotation.z"

         Keyframe {
             frame: 0
             value: 0
         }
         Keyframe {
             frame: 250
             value: 90
         }
         Keyframe {
             frame: 750
             value: -90
         }
         Keyframe {
             frame: 1000
             value: 0
         }
     }
 }

A more complete approach to skinning

Skeleton is a resource but it's hierarchy and position is used for the Model's transformation.

Instead of a Skeleton node, we can use the resource type Skin. Since the Skin type is not a spatial node in the scene, its position will not affect the model. A minimal working Skin node will normally consist of a node list, joints and an optional inverse bind matrices, inverseBindPoses.

Using the Skin item the previous example can be written like this:

 skin: Skin {
     id: skin0
     joints: [
         joint0,
         joint1
     ]
     inverseBindPoses: [
         Qt.matrix4x4(1, 0, 0, -0.5,
                      0, 1, 0, -1,
                      0, 0, 1, 0,
                      0, 0, 0, 1),
         Qt.matrix4x4(1, 0, 0, -0.5,
                      0, 1, 0, -1,
                      0, 0, 1, 0,
                      0, 0, 0, 1)
     ]
 }

From the code snippet we can see that the Skin only has two lists, a joints and an inverseBindPoses, which differs from the Skeleton approach, as it does not have any hierarchy and just uses existing node's hierarchy.

 Node {
     id: joint0
     Node {
         id: joint1
         eulerRotation.z: 45
     }
 }
