QColorDialog Class
The QColorDialog class provides a dialog widget for specifying colors. More...
| Header: | #include <QColorDialog> |
| CMake: | find_package(Qt6 REQUIRED COMPONENTS Widgets) target_link_libraries(mytarget PRIVATE Qt6::Widgets) |
| qmake: | QT += widgets |
| Inherits: | QDialog |
- List of all members, including inherited members
- QColorDialog is part of Standard Dialogs.
Public Types
| enum | ColorDialogOption { ShowAlphaChannel, NoButtons, NoEyeDropperButton, DontUseNativeDialog } |
| flags | ColorDialogOptions |
Properties
- currentColor : QColor
- options : ColorDialogOptions
Public Functions
| QColorDialog(QWidget *parent = nullptr) | |
| QColorDialog(const QColor &initial, QWidget *parent = nullptr) | |
| virtual | ~QColorDialog() |
| QColor | currentColor() const |
| void | open(QObject *receiver, const char *member) |
| QColorDialog::ColorDialogOptions | options() const |
| QColor | selectedColor() const |
| void | setCurrentColor(const QColor &color) |
| void | setOption(QColorDialog::ColorDialogOption option, bool on = true) |
| void | setOptions(QColorDialog::ColorDialogOptions options) |
| bool | testOption(QColorDialog::ColorDialogOption option) const |
Reimplemented Public Functions
| virtual void | setVisible(bool visible) override |
Signals
| void | colorSelected(const QColor &color) |
| void | currentColorChanged(const QColor &color) |
Static Public Members
| QColor | customColor(int index) |
| int | customCount() |
| QColor | getColor(const QColor &initial = Qt::white, QWidget *parent = nullptr, const QString &title = QString(), QColorDialog::ColorDialogOptions options = ColorDialogOptions()) |
| void | setCustomColor(int index, QColor color) |
| void | setStandardColor(int index, QColor color) |
| QColor | standardColor(int index) |
Reimplemented Protected Functions
| virtual void | changeEvent(QEvent *e) override |
| virtual void | done(int result) override |
Detailed Description

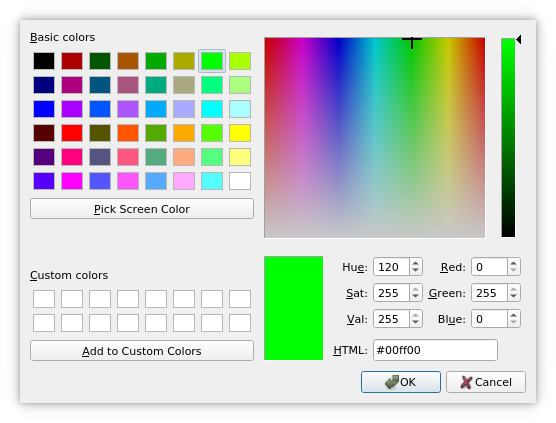

The color dialog's function is to allow users to choose colors. For example, you might use this in a drawing program to allow the user to set the brush color.
The static functions provide modal color dialogs.
The static getColor() function shows the dialog, and allows the user to specify a color. This function can also be used to let users choose a color with a level of transparency: pass the ShowAlphaChannel option as an additional argument.
The user can store customCount() different custom colors. The custom colors are shared by all color dialogs, and remembered during the execution of the program. Use setCustomColor() to set the custom colors, and use customColor() to get them.
When pressing the "Pick Screen Color" button, the cursor changes to a haircross and the colors on the screen are scanned. The user can pick up one by clicking the mouse or the Enter button. Pressing Escape restores the last color selected before entering this mode.
The Standard Dialogs example shows how to use QColorDialog as well as other built-in Qt dialogs.
See also QColor, QFileDialog, QFontDialog, and Standard Dialogs Example.
Member Type Documentation
enum QColorDialog::ColorDialogOption
flags QColorDialog::ColorDialogOptions
This enum specifies various options that affect the look and feel of a color dialog.
| Constant | Value | Description |
|---|---|---|
QColorDialog::ShowAlphaChannel | 0x00000001 | Allow the user to select the alpha component of a color. |
QColorDialog::NoButtons | 0x00000002 | Don't display OK and Cancel buttons. (Useful for "live dialogs".) |
QColorDialog::NoEyeDropperButton | 0x00000008 | Hide the Eye Dropper button. This value was added in Qt 6.6. |
QColorDialog::DontUseNativeDialog | 0x00000004 | Use Qt's standard color dialog instead of the operating system native color dialog. |
The ColorDialogOptions type is a typedef for QFlags<ColorDialogOption>. It stores an OR combination of ColorDialogOption values.
See also options, setOption(), testOption(), and windowModality().
Property Documentation
currentColor : QColor
This property holds the currently selected color in the dialog
Access functions:
| QColor | currentColor() const |
| void | setCurrentColor(const QColor &color) |
Notifier signal:
| void | currentColorChanged(const QColor &color) |
options : ColorDialogOptions
This property holds the various options that affect the look and feel of the dialog
By default, all options are disabled.
Options should be set before showing the dialog. Setting them while the dialog is visible is not guaranteed to have an immediate effect on the dialog (depending on the option and on the platform).
Access functions:
| QColorDialog::ColorDialogOptions | options() const |
| void | setOptions(QColorDialog::ColorDialogOptions options) |
See also setOption() and testOption().
Member Function Documentation
[explicit] QColorDialog::QColorDialog(QWidget *parent = nullptr)
Constructs a color dialog with the given parent.
[explicit] QColorDialog::QColorDialog(const QColor &initial, QWidget *parent = nullptr)
Constructs a color dialog with the given parent and specified initial color.
[virtual noexcept] QColorDialog::~QColorDialog()
Destroys the color dialog.
[override virtual protected] void QColorDialog::changeEvent(QEvent *e)
Reimplements: QWidget::changeEvent(QEvent *event).
[signal] void QColorDialog::colorSelected(const QColor &color)
This signal is emitted just after the user has clicked OK to select a color to use. The chosen color is specified by color.
See also color and currentColorChanged().
[signal] void QColorDialog::currentColorChanged(const QColor &color)
This signal is emitted whenever the current color changes in the dialog. The current color is specified by color.
Note: Notifier signal for property currentColor.
See also color and colorSelected().
[static] QColor QColorDialog::customColor(int index)
Returns the custom color at the given index as a QColor value.
See also setCustomColor().
[static] int QColorDialog::customCount()
Returns the number of custom colors supported by QColorDialog. All color dialogs share the same custom colors.
[override virtual protected] void QColorDialog::done(int result)
Reimplements: QDialog::done(int r).
Closes the dialog and sets its result code to result. If this dialog is shown with exec(), done() causes the local event loop to finish, and exec() to return result.
See also QDialog::done().
[static] QColor QColorDialog::getColor(const QColor &initial = Qt::white, QWidget *parent = nullptr, const QString &title = QString(), QColorDialog::ColorDialogOptions options = ColorDialogOptions())
Pops up a modal color dialog with the given window title (or "Select Color" if none is specified), lets the user choose a color, and returns that color. The color is initially set to initial. The dialog is a child of parent. It returns an invalid (see QColor::isValid()) color if the user cancels the dialog.
The options argument allows you to customize the dialog.
void QColorDialog::open(QObject *receiver, const char *member)
Opens the dialog and connects its colorSelected() signal to the slot specified by receiver and member.
The signal will be disconnected from the slot when the dialog is closed.
QColor QColorDialog::selectedColor() const
Returns the color that the user selected by clicking the OK or equivalent button.
Note: This color is not always the same as the color held by the currentColor property since the user can choose different colors before finally selecting the one to use.
[static] void QColorDialog::setCustomColor(int index, QColor color)
Sets the custom color at index to the QColor color value.
Note: This function does not apply to the Native Color Dialog on the macOS platform. If you still require this function, use the QColorDialog::DontUseNativeDialog option.
See also customColor().
void QColorDialog::setOption(QColorDialog::ColorDialogOption option, bool on = true)
Sets the given option to be enabled if on is true; otherwise, clears the given option.
See also options and testOption().
[static] void QColorDialog::setStandardColor(int index, QColor color)
Sets the standard color at index to the QColor color value.
Note: This function does not apply to the Native Color Dialog on the macOS platform. If you still require this function, use the QColorDialog::DontUseNativeDialog option.
See also standardColor().
[override virtual] void QColorDialog::setVisible(bool visible)
Reimplements: QDialog::setVisible(bool visible).
Changes the visibility of the dialog. If visible is true, the dialog is shown; otherwise, it is hidden.
[static] QColor QColorDialog::standardColor(int index)
Returns the standard color at the given index as a QColor value.
See also setStandardColor().
bool QColorDialog::testOption(QColorDialog::ColorDialogOption option) const
Returns true if the given option is enabled; otherwise, returns false.
