QTableView Class

The QTableView class provides a default model/view implementation of a table view. More...

Header: #include <QTableView>
CMake: find_package(Qt6 REQUIRED COMPONENTS Widgets)
target_link_libraries(mytarget PRIVATE Qt6::Widgets)
qmake: QT += widgets
Inherits: QAbstractItemView
Inherited By:

QTableWidget

Properties

Public Functions

QTableView(QWidget *parent = nullptr)
virtual ~QTableView()
void clearSpans()
int columnAt(int x) const
int columnSpan(int row, int column) const
int columnViewportPosition(int column) const
int columnWidth(int column) const
Qt::PenStyle gridStyle() const
QHeaderView *horizontalHeader() const
bool isColumnHidden(int column) const
bool isCornerButtonEnabled() const
bool isRowHidden(int row) const
bool isSortingEnabled() const
int rowAt(int y) const
int rowHeight(int row) const
int rowSpan(int row, int column) const
int rowViewportPosition(int row) const
void setColumnHidden(int column, bool hide)
void setColumnWidth(int column, int width)
void setCornerButtonEnabled(bool enable)
void setGridStyle(Qt::PenStyle style)
void setHorizontalHeader(QHeaderView *header)
void setRowHeight(int row, int height)
void setRowHidden(int row, bool hide)
void setSortingEnabled(bool enable)
void setSpan(int row, int column, int rowSpanCount, int columnSpanCount)
void setVerticalHeader(QHeaderView *header)
void setWordWrap(bool on)
bool showGrid() const
QHeaderView *verticalHeader() const
bool wordWrap() const

Reimplemented Public Functions

virtual QModelIndex indexAt(const QPoint &pos) const override
virtual void scrollTo(const QModelIndex &index, QAbstractItemView::ScrollHint hint = EnsureVisible) override
virtual void setModel(QAbstractItemModel *model) override
virtual void setRootIndex(const QModelIndex &index) override
virtual void setSelectionModel(QItemSelectionModel *selectionModel) override
virtual QRect visualRect(const QModelIndex &index) const override

Public Slots

void hideColumn(int column)
void hideRow(int row)
void resizeColumnToContents(int column)
void resizeColumnsToContents()
void resizeRowToContents(int row)
void resizeRowsToContents()
void selectColumn(int column)
void selectRow(int row)
void setShowGrid(bool show)
void showColumn(int column)
void showRow(int row)
void sortByColumn(int column, Qt::SortOrder order)

Reimplemented Protected Functions

virtual void currentChanged(const QModelIndex &current, const QModelIndex &previous) override
virtual int horizontalOffset() const override
virtual void initViewItemOption(QStyleOptionViewItem *option) const override
virtual bool isIndexHidden(const QModelIndex &index) const override
virtual QModelIndex moveCursor(QAbstractItemView::CursorAction cursorAction, Qt::KeyboardModifiers modifiers) override
virtual void paintEvent(QPaintEvent *event) override
virtual void scrollContentsBy(int dx, int dy) override
virtual QModelIndexList selectedIndexes() const override
virtual void selectionChanged(const QItemSelection &selected, const QItemSelection &deselected) override
virtual void setSelection(const QRect &rect, QItemSelectionModel::SelectionFlags flags) override
virtual int sizeHintForColumn(int column) const override
virtual int sizeHintForRow(int row) const override
virtual void timerEvent(QTimerEvent *event) override
virtual void updateGeometries() override
virtual int verticalOffset() const override
virtual QSize viewportSizeHint() const override
virtual QRegion visualRegionForSelection(const QItemSelection &selection) const override

Protected Slots

void columnCountChanged(int oldCount, int newCount)
void columnMoved(int column, int oldIndex, int newIndex)
void columnResized(int column, int oldWidth, int newWidth)
void rowCountChanged(int oldCount, int newCount)
void rowMoved(int row, int oldIndex, int newIndex)
void rowResized(int row, int oldHeight, int newHeight)

Detailed Description

A QTableView implements a table view that displays items from a model. This class is used to provide standard tables that were previously provided by the QTable class, but using the more flexible approach provided by Qt's model/view architecture.

The QTableView class is one of the Model/View Classes and is part of Qt's model/view framework.

QTableView implements the interfaces defined by the QAbstractItemView class to allow it to display data provided by models derived from the QAbstractItemModel class.

You can navigate the cells in the table by clicking on a cell with the mouse, or by using the arrow keys. Because QTableView enables tabKeyNavigation by default, you can also hit Tab and Backtab to move from cell to cell.

Visual Appearance

The table has a vertical header that can be obtained using the verticalHeader() function, and a horizontal header that is available through the horizontalHeader() function. The height of each row in the table can be found by using rowHeight(); similarly, the width of columns can be found using columnWidth(). Since both of these are plain widgets, you can hide either of them using their hide() functions. Each header is configured with its highlightSections and sectionsClickable properties set to true.

Rows and columns can be hidden and shown with hideRow(), hideColumn(), showRow(), and showColumn(). They can be selected with selectRow() and selectColumn(). The table will show a grid depending on the showGrid property.

The items shown in a table view, like those in the other item views, are rendered and edited using standard delegates. However, for some tasks it is sometimes useful to be able to insert widgets in a table instead. Widgets are set for particular indexes with the setIndexWidget() function, and later retrieved with indexWidget().

By default, the cells in a table do not expand to fill the available space.

You can make the cells fill the available space by stretching the last header section. Access the relevant header using horizontalHeader() or verticalHeader() and set the header's stretchLastSection property.

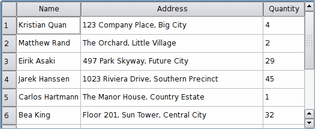

To distribute the available space according to the space requirement of each column or row, call the view's resizeColumnsToContents() or resizeRowsToContents() functions.

Coordinate Systems

For some specialized forms of tables it is useful to be able to convert between row and column indexes and widget coordinates. The rowAt() function provides the y-coordinate within the view of the specified row; the row index can be used to obtain a corresponding y-coordinate with rowViewportPosition(). The columnAt() and columnViewportPosition() functions provide the equivalent conversion operations between x-coordinates and column indexes.

See also QTableWidget, View Classes, QAbstractItemModel, QAbstractItemView, and Table Model Example.

Property Documentation

cornerButtonEnabled : bool

This property holds whether the button in the top-left corner is enabled

If this property is true then button in the top-left corner of the table view is enabled. Clicking on this button will select all the cells in the table view.

This property is true by default.

Access functions:

bool isCornerButtonEnabled() const
void setCornerButtonEnabled(bool enable)

gridStyle : Qt::PenStyle

This property holds the pen style used to draw the grid.

This property holds the style used when drawing the grid (see showGrid).

Access functions:

Qt::PenStyle gridStyle() const
void setGridStyle(Qt::PenStyle style)

showGrid : bool

This property holds whether the grid is shown

If this property is true a grid is drawn for the table; if the property is false, no grid is drawn. The default value is true.

Access functions:

bool showGrid() const
void setShowGrid(bool show)

sortingEnabled : bool

This property holds whether sorting is enabled

If this property is true, sorting is enabled for the table. If this property is false, sorting is not enabled. The default value is false.

Note: . Setting the property to true with setSortingEnabled() immediately triggers a call to sortByColumn() with the current sort section and order.

Access functions:

bool isSortingEnabled() const
void setSortingEnabled(bool enable)

See also sortByColumn().

wordWrap : bool

This property holds the item text word-wrapping policy

If this property is true then the item text is wrapped where necessary at word-breaks; otherwise it is not wrapped at all. This property is true by default.

Note that even of wrapping is enabled, the cell will not be expanded to fit all text. Ellipsis will be inserted according to the current textElideMode.

Access functions:

bool wordWrap() const
void setWordWrap(bool on)

Member Function Documentation

[explicit] QTableView::QTableView(QWidget *parent = nullptr)

Constructs a table view with a parent to represent the data.

See also QAbstractItemModel.

[virtual noexcept] QTableView::~QTableView()

Destroys the table view.

void QTableView::clearSpans()

Removes all row and column spans in the table view.

See also setSpan().

int QTableView::columnAt(int x) const

Returns the column in which the given x-coordinate, x, in contents coordinates is located.

Note: This function returns -1 if the given coordinate is not valid (has no column).

See also rowAt().

[protected slot] void QTableView::columnCountChanged(int oldCount, int newCount)

This slot is called whenever columns are added or deleted. The previous number of columns is specified by oldCount, and the new number of columns is specified by newCount.

[protected slot] void QTableView::columnMoved(int column, int oldIndex, int newIndex)

This slot is called to change the index of the given column in the table view. The old index is specified by oldIndex, and the new index by newIndex.

See also rowMoved().

[protected slot] void QTableView::columnResized(int column, int oldWidth, int newWidth)

This slot is called to change the width of the given column. The old width is specified by oldWidth, and the new width by newWidth.

See also rowResized().

int QTableView::columnSpan(int row, int column) const

Returns the column span of the table element at (row, column). The default is 1.

See also setSpan() and rowSpan().

int QTableView::columnViewportPosition(int column) const

Returns the x-coordinate in contents coordinates of the given column.

int QTableView::columnWidth(int column) const

Returns the width of the given column.

See also setColumnWidth(), resizeColumnToContents(), and rowHeight().

[override virtual protected] void QTableView::currentChanged(const QModelIndex &current, const QModelIndex &previous)

Reimplements: QAbstractItemView::currentChanged(const QModelIndex &current, const QModelIndex &previous).

[slot] void QTableView::hideColumn(int column)

Hide the given column.

See also showColumn() and hideRow().

[slot] void QTableView::hideRow(int row)

Hide the given row.

See also showRow() and hideColumn().

QHeaderView *QTableView::horizontalHeader() const

Returns the table view's horizontal header.

See also setHorizontalHeader(), verticalHeader(), and QAbstractItemModel::headerData().

[override virtual protected] int QTableView::horizontalOffset() const

Reimplements: QAbstractItemView::horizontalOffset() const.

Returns the horizontal offset of the items in the table view.

Note that the table view uses the horizontal header section positions to determine the positions of columns in the view.

See also verticalOffset().

[override virtual] QModelIndex QTableView::indexAt(const QPoint &pos) const

Reimplements: QAbstractItemView::indexAt(const QPoint &point) const.

Returns the index position of the model item corresponding to the table item at position pos in contents coordinates.

[override virtual protected] void QTableView::initViewItemOption(QStyleOptionViewItem *option) const

Reimplements: QAbstractItemView::initViewItemOption(QStyleOptionViewItem *option) const.

bool QTableView::isColumnHidden(int column) const

Returns true if the given column is hidden; otherwise returns false.

See also isRowHidden().

[override virtual protected] bool QTableView::isIndexHidden(const QModelIndex &index) const

Reimplements: QAbstractItemView::isIndexHidden(const QModelIndex &index) const.

bool QTableView::isRowHidden(int row) const

Returns true if the given row is hidden; otherwise returns false.

See also isColumnHidden().

[override virtual protected] QModelIndex QTableView::moveCursor(QAbstractItemView::CursorAction cursorAction, Qt::KeyboardModifiers modifiers)

Reimplements: QAbstractItemView::moveCursor(QAbstractItemView::CursorAction cursorAction, Qt::KeyboardModifiers modifiers).

Moves the cursor in accordance with the given cursorAction, using the information provided by the modifiers.

See also QAbstractItemView::CursorAction.

[override virtual protected] void QTableView::paintEvent(QPaintEvent *event)

Reimplements: QAbstractScrollArea::paintEvent(QPaintEvent *event).

Paints the table on receipt of the given paint event event.

[slot] void QTableView::resizeColumnToContents(int column)

Resizes the given column based on the size hints of the delegate used to render each item in the column.

Note: Only visible columns will be resized. Reimplement sizeHintForColumn() to resize hidden columns as well.

See also resizeColumnsToContents(), sizeHintForColumn(), and QHeaderView::resizeContentsPrecision().

[slot] void QTableView::resizeColumnsToContents()

Resizes all columns based on the size hints of the delegate used to render each item in the columns.

See also resizeColumnToContents(), sizeHintForColumn(), and QHeaderView::resizeContentsPrecision().

[slot] void QTableView::resizeRowToContents(int row)

Resizes the given row based on the size hints of the delegate used to render each item in the row.

See also resizeRowsToContents(), sizeHintForRow(), and QHeaderView::resizeContentsPrecision().

[slot] void QTableView::resizeRowsToContents()

Resizes all rows based on the size hints of the delegate used to render each item in the rows.

See also resizeRowToContents(), sizeHintForRow(), and QHeaderView::resizeContentsPrecision().

int QTableView::rowAt(int y) const

Returns the row in which the given y-coordinate, y, in contents coordinates is located.

Note: This function returns -1 if the given coordinate is not valid (has no row).

See also columnAt().

[protected slot] void QTableView::rowCountChanged(int oldCount, int newCount)

This slot is called whenever rows are added or deleted. The previous number of rows is specified by oldCount, and the new number of rows is specified by newCount.

int QTableView::rowHeight(int row) const

Returns the height of the given row.

See also setRowHeight(), resizeRowToContents(), and columnWidth().

[protected slot] void QTableView::rowMoved(int row, int oldIndex, int newIndex)

This slot is called to change the index of the given row in the table view. The old index is specified by oldIndex, and the new index by newIndex.

See also columnMoved().

[protected slot] void QTableView::rowResized(int row, int oldHeight, int newHeight)

This slot is called to change the height of the given row. The old height is specified by oldHeight, and the new height by newHeight.

See also columnResized().

int QTableView::rowSpan(int row, int column) const

Returns the row span of the table element at (row, column). The default is 1.

See also setSpan() and columnSpan().

int QTableView::rowViewportPosition(int row) const

Returns the y-coordinate in contents coordinates of the given row.

[override virtual protected] void QTableView::scrollContentsBy(int dx, int dy)

Reimplements: QAbstractScrollArea::scrollContentsBy(int dx, int dy).

Scroll the contents of the table view by (dx, dy).

[override virtual] void QTableView::scrollTo(const QModelIndex &index, QAbstractItemView::ScrollHint hint = EnsureVisible)

Reimplements: QAbstractItemView::scrollTo(const QModelIndex &index, QAbstractItemView::ScrollHint hint).

Makes sure that the given index is visible in the table view, scrolling if necessary.

[slot] void QTableView::selectColumn(int column)

Selects the given column in the table view if the current SelectionMode and SelectionBehavior allows columns to be selected.

See also selectRow().

[slot] void QTableView::selectRow(int row)

Selects the given row in the table view if the current SelectionMode and SelectionBehavior allows rows to be selected.

See also selectColumn().

[override virtual protected] QModelIndexList QTableView::selectedIndexes() const

Reimplements: QAbstractItemView::selectedIndexes() const.

[override virtual protected] void QTableView::selectionChanged(const QItemSelection &selected, const QItemSelection &deselected)

Reimplements: QAbstractItemView::selectionChanged(const QItemSelection &selected, const QItemSelection &deselected).

void QTableView::setColumnHidden(int column, bool hide)

If hide is true the given column will be hidden; otherwise it will be shown.

See also isColumnHidden() and setRowHidden().

void QTableView::setColumnWidth(int column, int width)

Sets the width of the given column to be width.

See also columnWidth().

void QTableView::setHorizontalHeader(QHeaderView *header)

Sets the widget to use for the horizontal header to header.

See also horizontalHeader() and setVerticalHeader().

[override virtual] void QTableView::setModel(QAbstractItemModel *model)

Reimplements: QAbstractItemView::setModel(QAbstractItemModel *model).

[override virtual] void QTableView::setRootIndex(const QModelIndex &index)

Reimplements: QAbstractItemView::setRootIndex(const QModelIndex &index).

void QTableView::setRowHeight(int row, int height)

Sets the height of the given row to be height.

See also rowHeight().

void QTableView::setRowHidden(int row, bool hide)

If hide is true row will be hidden, otherwise it will be shown.

See also isRowHidden() and setColumnHidden().

[override virtual protected] void QTableView::setSelection(const QRect &rect, QItemSelectionModel::SelectionFlags flags)

Reimplements: QAbstractItemView::setSelection(const QRect &rect, QItemSelectionModel::SelectionFlags flags).

Selects the items within the given rect and in accordance with the specified selection flags.

[override virtual] void QTableView::setSelectionModel(QItemSelectionModel *selectionModel)

Reimplements: QAbstractItemView::setSelectionModel(QItemSelectionModel *selectionModel).

void QTableView::setSortingEnabled(bool enable)

If enable is true, enables sorting for the table and immediately trigger a call to sortByColumn() with the current sort section and order

Note: Setter function for property sortingEnabled.

See also isSortingEnabled().

void QTableView::setSpan(int row, int column, int rowSpanCount, int columnSpanCount)

Sets the span of the table element at (row, column) to the number of rows and columns specified by (rowSpanCount, columnSpanCount).

See also rowSpan() and columnSpan().

void QTableView::setVerticalHeader(QHeaderView *header)

Sets the widget to use for the vertical header to header.

See also verticalHeader() and setHorizontalHeader().

[slot] void QTableView::showColumn(int column)

Show the given column.

See also hideColumn() and showRow().

[slot] void QTableView::showRow(int row)

Show the given row.

See also hideRow() and showColumn().

[override virtual protected] int QTableView::sizeHintForColumn(int column) const

Reimplements: QAbstractItemView::sizeHintForColumn(int column) const.

Returns the size hint for the given column's width or -1 if there is no model.

If you need to set the width of a given column to a fixed value, call QHeaderView::resizeSection() on the table's horizontal header.

If you reimplement this function in a subclass, note that the value you return will be used when resizeColumnToContents() or QHeaderView::resizeSections() is called. If a larger column width is required by either the horizontal header or the item delegate, the larger width will be used instead.

See also QWidget::sizeHint, horizontalHeader(), and QHeaderView::resizeContentsPrecision().

[override virtual protected] int QTableView::sizeHintForRow(int row) const

Reimplements: QAbstractItemView::sizeHintForRow(int row) const.

Returns the size hint for the given row's height or -1 if there is no model.

If you need to set the height of a given row to a fixed value, call QHeaderView::resizeSection() on the table's vertical header.

If you reimplement this function in a subclass, note that the value you return is only used when resizeRowToContents() is called. In that case, if a larger row height is required by either the vertical header or the item delegate, that width will be used instead.

See also QWidget::sizeHint, verticalHeader(), and QHeaderView::resizeContentsPrecision().

[slot] void QTableView::sortByColumn(int column, Qt::SortOrder order)

Sorts the model by the values in the given column and order.

column may be -1, in which case no sort indicator will be shown and the model will return to its natural, unsorted order. Note that not all models support this and may even crash in this case.

See also sortingEnabled.

[override virtual protected] void QTableView::timerEvent(QTimerEvent *event)

Reimplements: QAbstractItemView::timerEvent(QTimerEvent *event).

[override virtual protected] void QTableView::updateGeometries()

Reimplements: QAbstractItemView::updateGeometries().

QHeaderView *QTableView::verticalHeader() const

Returns the table view's vertical header.

See also setVerticalHeader(), horizontalHeader(), and QAbstractItemModel::headerData().

[override virtual protected] int QTableView::verticalOffset() const

Reimplements: QAbstractItemView::verticalOffset() const.

Returns the vertical offset of the items in the table view.

Note that the table view uses the vertical header section positions to determine the positions of rows in the view.

See also horizontalOffset().

[override virtual protected] QSize QTableView::viewportSizeHint() const

Reimplements: QAbstractItemView::viewportSizeHint() const.

[override virtual] QRect QTableView::visualRect(const QModelIndex &index) const

Reimplements: QAbstractItemView::visualRect(const QModelIndex &index) const.

Returns the rectangle on the viewport occupied by the given index. If the index is hidden in the view it will return a null QRect.

[override virtual protected] QRegion QTableView::visualRegionForSelection(const QItemSelection &selection) const

Reimplements: QAbstractItemView::visualRegionForSelection(const QItemSelection &selection) const.

Returns the rectangle from the viewport of the items in the given selection.

Since 4.7, the returned region only contains rectangles intersecting (or included in) the viewport.

© 2024 The Qt Company Ltd. Documentation contributions included herein are the copyrights of their respective owners.
The documentation provided herein is licensed under the terms of the GNU Free Documentation License version 1.3 as published by the Free Software Foundation.
Qt and respective logos are trademarks of The Qt Company Ltd. in Finland and/or other countries worldwide. All other trademarks are property of their respective owners.
