QTextFrameFormat Class

The QTextFrameFormat class provides formatting information for frames in a QTextDocument. More...

Header:	#include <QTextFrameFormat>
CMake:	find_package(Qt6 REQUIRED COMPONENTS Gui) target_link_libraries(mytarget PRIVATE Qt6::Gui)
qmake:	QT += gui
Inherits:	QTextFormat
Inherited By:	QTextTableFormat

List of all members, including inherited members
QTextFrameFormat is part of Rich Text Processing APIs and Implicitly Shared Classes.

Note: All functions in this class are reentrant.

Public Types

enum	BorderStyle { BorderStyle_None, BorderStyle_Dotted, BorderStyle_Dashed, BorderStyle_Solid, BorderStyle_Double, …, BorderStyle_Outset }
enum	Position { InFlow, FloatLeft, FloatRight }

Public Functions

	QTextFrameFormat()
qreal	border() const
QBrush	borderBrush() const
QTextFrameFormat::BorderStyle	borderStyle() const
qreal	bottomMargin() const
QTextLength	height() const
bool	isValid() const
qreal	leftMargin() const
qreal	margin() const
qreal	padding() const
QTextFormat::PageBreakFlags	pageBreakPolicy() const
QTextFrameFormat::Position	position() const
qreal	rightMargin() const
void	setBorder(qreal width)
void	setBorderBrush(const QBrush &brush)
void	setBorderStyle(QTextFrameFormat::BorderStyle style)
void	setBottomMargin(qreal margin)
void	setHeight(const QTextLength &height)
void	setHeight(qreal height)
void	setLeftMargin(qreal margin)
void	setMargin(qreal margin)
void	setPadding(qreal width)
void	setPageBreakPolicy(QTextFormat::PageBreakFlags policy)
void	setPosition(QTextFrameFormat::Position policy)
void	setRightMargin(qreal margin)
void	setTopMargin(qreal margin)
void	setWidth(const QTextLength &width)
void	setWidth(qreal width)
qreal	topMargin() const
QTextLength	width() const

Detailed Description

A text frame groups together one or more blocks of text, providing a layer of structure larger than the paragraph. The format of a frame specifies how it is rendered and positioned on the screen. It does not directly specify the behavior of the text formatting within, but provides constraints on the layout of its children.

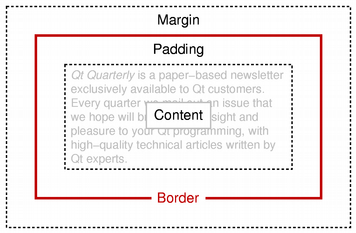

The frame format defines the width() and height() of the frame on the screen. Each frame can have a border() that surrounds its contents with a rectangular box. The border is surrounded by a margin() around the frame, and the contents of the frame are kept separate from the border by the frame's padding(). This scheme is similar to the box model used by Cascading Style Sheets for HTML pages.

The position() of a frame is set using setPosition() and determines how it is located relative to the surrounding text.

The validity of a QTextFrameFormat object can be determined with the isValid() function.

See also QTextFrame and QTextBlockFormat.

Member Type Documentation

enum QTextFrameFormat::BorderStyle

This enum describes different border styles for the text frame.

Constant	Value
`QTextFrameFormat::BorderStyle_None`	`0`
`QTextFrameFormat::BorderStyle_Dotted`	`1`
`QTextFrameFormat::BorderStyle_Dashed`	`2`
`QTextFrameFormat::BorderStyle_Solid`	`3`
`QTextFrameFormat::BorderStyle_Double`	`4`
`QTextFrameFormat::BorderStyle_DotDash`	`5`
`QTextFrameFormat::BorderStyle_DotDotDash`	`6`
`QTextFrameFormat::BorderStyle_Groove`	`7`
`QTextFrameFormat::BorderStyle_Ridge`	`8`
`QTextFrameFormat::BorderStyle_Inset`	`9`
`QTextFrameFormat::BorderStyle_Outset`	`10`

See also borderStyle() and FrameBorderStyle.

enum QTextFrameFormat::Position

This enum describes how a frame is located relative to the surrounding text.

Constant	Value
`QTextFrameFormat::InFlow`	`0`
`QTextFrameFormat::FloatLeft`	`1`
`QTextFrameFormat::FloatRight`	`2`

See also position() and CssFloat.

Member Function Documentation

QTextFrameFormat::QTextFrameFormat()

Constructs a text frame format object with the default properties.

qreal QTextFrameFormat::border() const

Returns the width of the border in pixels.

See also setBorder().

QBrush QTextFrameFormat::borderBrush() const

Returns the brush used for the frame's border.

See also setBorderBrush().

QTextFrameFormat::BorderStyle QTextFrameFormat::borderStyle() const

Returns the style of the frame's border.

See also setBorderStyle().

qreal QTextFrameFormat::bottomMargin() const

Returns the width of the frame's bottom margin in pixels.

See also setBottomMargin().

QTextLength QTextFrameFormat::height() const

Returns the height of the frame's border rectangle.

See also setHeight().

bool QTextFrameFormat::isValid() const

Returns true if the format description is valid; otherwise returns false.

qreal QTextFrameFormat::leftMargin() const

Returns the width of the frame's left margin in pixels.

See also setLeftMargin().

qreal QTextFrameFormat::margin() const

Returns the width of the frame's external margin in pixels.

See also setMargin().

qreal QTextFrameFormat::padding() const

Returns the width of the frame's internal padding in pixels.

See also setPadding().

QTextFormat::PageBreakFlags QTextFrameFormat::pageBreakPolicy() const

Returns the currently set page break policy for the frame/table. The default is QTextFormat::PageBreak_Auto.

See also setPageBreakPolicy().

QTextFrameFormat::Position QTextFrameFormat::position() const

Returns the positioning policy for frames with this frame format.

See also setPosition().

qreal QTextFrameFormat::rightMargin() const

Returns the width of the frame's right margin in pixels.

See also setRightMargin().

void QTextFrameFormat::setBorder(qreal width)

Sets the width (in pixels) of the frame's border.

See also border().

void QTextFrameFormat::setBorderBrush(const QBrush &brush)

Sets the brush used for the frame's border.

See also borderBrush().

void QTextFrameFormat::setBorderStyle(QTextFrameFormat::BorderStyle style)

Sets the style of the frame's border.

See also borderStyle().

void QTextFrameFormat::setBottomMargin(qreal margin)

Sets the frame's bottom margin in pixels.

See also bottomMargin().

void QTextFrameFormat::setHeight(const QTextLength &height)

Sets the frame's height.

See also height().

void QTextFrameFormat::setHeight(qreal height)

This is an overloaded function.

Sets the frame's height.

void QTextFrameFormat::setLeftMargin(qreal margin)

Sets the frame's left margin in pixels.

See also leftMargin().

void QTextFrameFormat::setMargin(qreal margin)

Sets the frame's margin in pixels. This method also sets the left, right, top and bottom margins of the frame to the same value. The individual margins override the general margin.

See also margin().

void QTextFrameFormat::setPadding(qreal width)

Sets the width of the frame's internal padding in pixels.

See also padding().

void QTextFrameFormat::setPageBreakPolicy(QTextFormat::PageBreakFlags policy)

Sets the page break policy for the frame/table to policy.

See also pageBreakPolicy().

void QTextFrameFormat::setPosition(QTextFrameFormat::Position policy)

Sets the policy for positioning frames with this frame format.

See also position().

void QTextFrameFormat::setRightMargin(qreal margin)

Sets the frame's right margin in pixels.

See also rightMargin().

void QTextFrameFormat::setTopMargin(qreal margin)

Sets the frame's top margin in pixels.

See also topMargin().

void QTextFrameFormat::setWidth(const QTextLength &width)

Sets the frame's border rectangle's width.

See also width() and QTextLength.

void QTextFrameFormat::setWidth(qreal width)
