TreeViewDelegate QML Type

A delegate that can be assigned to a TreeView. More...

• List of all members, including inherited members

Properties

• current : bool
• depth : int
• editing : bool (since 6.5)
• expanded : bool
• hasChildren : bool
• indentation : real
• isTreeNode : bool
• leftMargin : real
• rightMargin : real
• selected : bool
• treeView : TreeView

Detailed Description

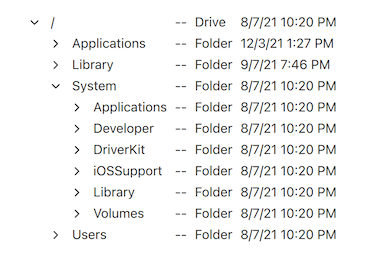

A TreeViewDelegate is a delegate that can be assigned to the delegate property of a TreeView. It renders the tree, as well as the other columns, in the view using the application style.

 TreeView {
     anchors.fill: parent
     delegate: TreeViewDelegate {}
     // The model needs to be a QAbstractItemModel
     // model: yourTreeModel
 }

TreeViewDelegate inherits ItemDelegate, which means that it's composed of three items: a background, a contentItem, and an indicator. TreeViewDelegate takes care of indenting the contentItem and the indicator according their location in the tree. The indicator will only be visible if the delegate item is inside the tree column, and renders a model item with children.

If you change the indicator, it will no longer be indented by default. Instead you need to indent it yourself by setting the x position of the indicator, taking the depth and indentation into account. Below is an example of how to do that:

 TreeViewDelegate {
     indicator: Item {
         x: leftMargin + (depth * indentation)
     }
 }

The position of the contentItem is controlled with padding. This means that you can change the contentItem without dealing with indentation. But it also means that you should avoid changing padding to something else, as that will remove the indentation. The space to the left of the indicator is instead controlled with leftMargin. The space between the indicator and the contentItem is controlled with spacing. And the space to the right of the contentItem is controlled with rightMargin.

Interacting with pointers

TreeViewDelegate inherits ItemDelegate. This means that it will emit signals such as clicked when the user clicks on the delegate. If needed, you could connect to that signal to implement application specific functionality, in addition to the default expand/collapse behavior (and even set pointerNavigationEnabled to false, to disable the default behavior as well).

But the ItemDelegate API does not give you information about the position of the click, or which modifiers are being held. If this is needed, a better approach would be to use pointer handlers, for example:

 TreeView {
     id: treeView
     delegate: TreeViewDelegate {
         TapHandler {
             acceptedButtons: Qt.RightButton
             onTapped: someContextMenu.open()
         }

         TapHandler {
             acceptedModifiers: Qt.ControlModifier
             onTapped: {
                 if (treeView.isExpanded(row))
                     treeView.collapseRecursively(row)
                 else
                     treeView.expandRecursively(row)
             }
         }
     }
 }

Editing nodes in the tree

TreeViewDelegate has a default edit delegate assigned. If TreeView has edit triggers set, and the model has support for editing model items, then the user can activate any of the edit triggers to edit the text of the current tree node.

The default edit delegate will try to use the Qt.EditRole to read and write data to the model. If QAbstractItemModel::data() returns an empty string for this role, then Qt.DisplayRole will be used instead.

You can always assign your own custom edit delegate to TableView.editDelegate if you have needs outside what the default edit delegate offers.

See also TreeView.
