Qt Style Sheets Examples

We will now see a few examples to get started with using Qt Style Sheets.

Style Sheet Usage

Customizing the Foreground and Background Colors

Let's start by setting yellow as the background color of all QLineEdits in an application. This could be achieved like this:

 qApp->setStyleSheet("QLineEdit { background-color: yellow }");

If we want the property to apply only to the QLineEdits that are children (or grandchildren or grand-grandchildren) of a specific dialog, we would rather do this:

 myDialog->setStyleSheet("QLineEdit { background-color: yellow }");

If we want the property to apply only to one specific QLineEdit, we can give it a name using QObject::setObjectName() and use an ID Selector to refer to it:

 myDialog->setStyleSheet("QLineEdit#nameEdit { background-color: yellow }");

Alternatively, we can set the background-color property directly on the QLineEdit, omitting the selector:

 nameEdit->setStyleSheet("background-color: yellow");

To ensure a good contrast, we should also specify a suitable color for the text:

 nameEdit->setStyleSheet("color: blue; background-color: yellow");

It might be a good idea to change the colors used for selected text as well:

 nameEdit->setStyleSheet("color: blue;"
                         "background-color: yellow;"
                         "selection-color: yellow;"
                         "selection-background-color: blue;");

Customizing Using Dynamic Properties

There are many situations where we need to present a form that has mandatory fields. To indicate to the user that the field is mandatory, one effective (albeit esthetically dubious) solution is to use yellow as the background color for those fields. It turns out this is very easy to implement using Qt Style Sheets. First, we would use the following application-wide style sheet:

 *[mandatoryField="true"] { background-color: yellow }

This means that every widget whose mandatoryField Qt property is set to true would have a yellow background.

Then, for each mandatory field widget, we would simply create a mandatoryField property on the fly and set it to true. For example:

 QLineEdit *nameEdit = new QLineEdit(this);
 nameEdit->setProperty("mandatoryField", true);

 QLineEdit *emailEdit = new QLineEdit(this);
 emailEdit->setProperty("mandatoryField", true);

 QSpinBox *ageSpinBox = new QSpinBox(this);
 ageSpinBox->setProperty("mandatoryField", true);

Customizing a QPushButton Using the Box Model

This time, we will show how to create a red QPushButton. This QPushButton would presumably be connected to a very destructive piece of code.

First, we are tempted to use this style sheet:

 QPushButton#evilButton { background-color: red }

However, the result is a boring, flat button with no borders:

A flat red button

What happened is this:

We have made a request that cannot be satisfied using the native styles alone (e.g., the Windows Vista theme engine doesn't let us specify the background color of a button).
Therefore, the button is rendered using style sheets.
We haven't specified any values for border-width and border-style, so by default we obtain a 0-pixel wide border of style none.

Let's improve the situation by specifying a border:

 QPushButton#evilButton {
     background-color: red;
     border-style: outset;
     border-width: 2px;
     border-color: beige;
 }

A red button with a beige border

Things look already a lot better. But the button looks a bit cramped. Let's specify some spacing between the border and the text using the padding. Additionally, we will enforce a minimum width, round the corners, and specify a larger font to make the button look nicer:

 QPushButton#evilButton {
     background-color: red;
     border-style: outset;
     border-width: 2px;
     border-radius: 10px;
     border-color: beige;
     font: bold 14px;
     min-width: 10em;
     padding: 6px;
 }

A red button with a round beige border and big, bold text

The only issue remaining is that the button doesn't react when we press it. We can fix this by specifying a slightly different background color and use a different border style.

 QPushButton#evilButton {
     background-color: red;
     border-style: outset;
     border-width: 2px;
     border-radius: 10px;
     border-color: beige;
     font: bold 14px;
     min-width: 10em;
     padding: 6px;
 }
 QPushButton#evilButton:pressed {
     background-color: rgb(224, 0, 0);
     border-style: inset;
 }

Subcontrols give access to the sub-elements of a widget. For example, a QPushButton associated with a menu (using QPushButton::setMenu()) has a menu indicator. Let's customize the menu indicator for the red push button:

 QPushButton#evilButton::menu-indicator {
     image: url(myindicator.png);
 }

By default, the menu indicator is located at the bottom-right corner of the padding rectangle. We can change this by specifying subcontrol-position and subcontrol-origin to anchor the indicator differently. We can also use top and left to move the indicator by a few pixels. For example:

 QPushButton::menu-indicator {
     image: url(myindicator.png);
     subcontrol-position: right center;
     subcontrol-origin: padding;
     left: -2px;
 }

This positions the myindicator.png to the center right of the QPushButton's padding rectangle (see subcontrol-origin for more information).

Complex Selector Example

Since red seems to be our favorite color, let's make the text in QLineEdit red by setting the following application-wide stylesheet:

 QLineEdit { color: red }

However, we would like to give a visual indication that a QLineEdit is read-only by making it appear gray:

 QLineEdit { color: red }
 QLineEdit[readOnly="true"] { color: gray }

At some point, our design team comes with the requirement that all QLineEdits in the registration form (with the object name registrationDialog) to be brown:

 QLineEdit { color: red }
 QLineEdit[readOnly="true"] { color: gray }
 #registrationDialog QLineEdit { color: brown }

A few UI design meetings later, we decide that all our QDialogs should have brown colored QLineEdits:

 QLineEdit { color: red }
 QLineEdit[readOnly="true"] { color: gray }
 QDialog QLineEdit { color: brown }

Quiz: What happens if we have a read-only QLineEdit in a QDialog? [Hint: The Conflict Resolution section above explains what happens in cases like this.]

Customizing Specific Widgets

This section provides examples to customize specific widgets using Style Sheets.

Customizing QAbstractScrollArea

The background of any QAbstractScrollArea (Item views, QTextEdit and QTextBrowser) can be set using the background properties. For example, to set a background-image that scrolls with the scroll bar:

 QTextEdit, QListView {
     background-color: white;
     background-image: url(draft.png);
     background-attachment: scroll;
 }

If the background-image is to be fixed with the viewport:

 QTextEdit, QListView {
     background-color: white;
     background-image: url(draft.png);
     background-attachment: fixed;
 }

Customizing QCheckBox

Styling of a QCheckBox is almost identical to styling a QRadioButton. The main difference is that a tristate QCheckBox has an indeterminate state.

 QCheckBox {
     spacing: 5px;
 }

 QCheckBox::indicator {
     width: 13px;
     height: 13px;
 }

 QCheckBox::indicator:unchecked {
     image: url(:/images/checkbox_unchecked.png);
 }

 QCheckBox::indicator:unchecked:hover {
     image: url(:/images/checkbox_unchecked_hover.png);
 }

 QCheckBox::indicator:unchecked:pressed {
     image: url(:/images/checkbox_unchecked_pressed.png);
 }

 QCheckBox::indicator:checked {
     image: url(:/images/checkbox_checked.png);
 }

 QCheckBox::indicator:checked:hover {
     image: url(:/images/checkbox_checked_hover.png);
 }

 QCheckBox::indicator:checked:pressed {
     image: url(:/images/checkbox_checked_pressed.png);
 }

 QCheckBox::indicator:indeterminate:hover {
     image: url(:/images/checkbox_indeterminate_hover.png);
 }

 QCheckBox::indicator:indeterminate:pressed {
     image: url(:/images/checkbox_indeterminate_pressed.png);
 }

Customizing QComboBox

We will look at an example where the drop down button of a QComboBox appears "merged" with the combo box frame.

 QComboBox {
     border: 1px solid gray;
     border-radius: 3px;
     padding: 1px 18px 1px 3px;
     min-width: 6em;
 }

 QComboBox:editable {
     background: white;
 }

 QComboBox:!editable, QComboBox::drop-down:editable {
      background: qlineargradient(x1: 0, y1: 0, x2: 0, y2: 1,
                                  stop: 0 #E1E1E1, stop: 0.4 #DDDDDD,
                                  stop: 0.5 #D8D8D8, stop: 1.0 #D3D3D3);
 }

 /* QComboBox gets the "on" state when the popup is open */
 QComboBox:!editable:on, QComboBox::drop-down:editable:on {
     background: qlineargradient(x1: 0, y1: 0, x2: 0, y2: 1,
                                 stop: 0 #D3D3D3, stop: 0.4 #D8D8D8,
                                 stop: 0.5 #DDDDDD, stop: 1.0 #E1E1E1);
 }

 QComboBox:on { /* shift the text when the popup opens */
     padding-top: 3px;
     padding-left: 4px;
 }

 QComboBox::drop-down {
     subcontrol-origin: padding;
     subcontrol-position: top right;
     width: 15px;

     border-left-width: 1px;
     border-left-color: darkgray;
     border-left-style: solid; /* just a single line */
     border-top-right-radius: 3px; /* same radius as the QComboBox */
     border-bottom-right-radius: 3px;
 }

 QComboBox::down-arrow {
     image: url(/usr/share/icons/crystalsvg/16x16/actions/1downarrow.png);
 }

 QComboBox::down-arrow:on { /* shift the arrow when popup is open */
     top: 1px;
     left: 1px;
 }

The pop-up of the QComboBox is a QAbstractItemView and is styled using the descendant selector:

 QComboBox QAbstractItemView {
     border: 2px solid darkgray;
     selection-background-color: lightgray;
 }

Customizing QDockWidget

The title bar and the buttons of a QDockWidget can be customized as follows:

 QDockWidget {
     border: 1px solid lightgray;
     titlebar-close-icon: url(close.png);
     titlebar-normal-icon: url(undock.png);
 }

 QDockWidget::title {
     text-align: left; /* align the text to the left */
     background: lightgray;
     padding-left: 5px;
 }

 QDockWidget::close-button, QDockWidget::float-button {
     border: 1px solid transparent;
     background: darkgray;
     padding: 0px;
 }

 QDockWidget::close-button:hover, QDockWidget::float-button:hover {
     background: gray;
 }

 QDockWidget::close-button:pressed, QDockWidget::float-button:pressed {
     padding: 1px -1px -1px 1px;
 }

If one desires to move the dock widget buttons to the left, the following style sheet can be used:

 QDockWidget {
     border: 1px solid lightgray;
     titlebar-close-icon: url(close.png);
     titlebar-normal-icon: url(float.png);
 }

 QDockWidget::title {
     text-align: left;
     background: lightgray;
     padding-left: 35px;
 }

 QDockWidget::close-button, QDockWidget::float-button {
     background: darkgray;
     padding: 0px;
     icon-size: 14px; /* maximum icon size */
 }

 QDockWidget::close-button:hover, QDockWidget::float-button:hover {
     background: gray;
 }

 QDockWidget::close-button:pressed, QDockWidget::float-button:pressed {
     padding: 1px -1px -1px 1px;
 }

 QDockWidget::close-button {
     subcontrol-position: top left;
     subcontrol-origin: margin;
     position: absolute;
     top: 0px; left: 0px; bottom: 0px;
     width: 14px;
 }

 QDockWidget::float-button {
     subcontrol-position: top left;
     subcontrol-origin: margin;
     position: absolute;
     top: 0px; left: 16px; bottom: 0px;
     width: 14px;
 }

Note: To customize the separator (resize handle) of a QDockWidget, use QMainWindow::separator.

Customizing QFrame

A QFrame is styled using the The Box Model.

 QFrame, QLabel, QToolTip {
     border: 2px solid green;
     border-radius: 4px;
     padding: 2px;
     background-image: url(images/welcome.png);
 }

Customizing QGroupBox

Let us look at an example that moves the QGroupBox's title to the center.

 QGroupBox {
     background-color: qlineargradient(x1: 0, y1: 0, x2: 0, y2: 1,
                                       stop: 0 #E0E0E0, stop: 1 #FFFFFF);
     border: 2px solid gray;
     border-radius: 5px;
     margin-top: 1ex; /* leave space at the top for the title */
 }

 QGroupBox::title {
     subcontrol-origin: margin;
     subcontrol-position: top center; /* position at the top center */
     padding: 0 3px;
     background-color: qlineargradient(x1: 0, y1: 0, x2: 0, y2: 1,
                                       stop: 0 #FF0ECE, stop: 1 #FFFFFF);
 }

For a checkable QGroupBox, use the {#indicator-sub}{::indicator} subcontrol and style it exactly like a QCheckBox (i.e)

 QGroupBox::indicator {
     width: 13px;
     height: 13px;
 }

 QGroupBox::indicator:unchecked {
     image: url(:/images/checkbox_unchecked.png);
 }

 /* proceed with styling just like QCheckBox */

Customizing QHeaderView

QHeaderView is customized as follows:

 QHeaderView::section {
     background-color: qlineargradient(x1:0, y1:0, x2:0, y2:1,
                                       stop:0 #616161, stop: 0.5 #505050,
                                       stop: 0.6 #434343, stop:1 #656565);
     color: white;
     padding-left: 4px;
     border: 1px solid #6c6c6c;
 }

 QHeaderView::section:checked
 {
     background-color: red;
 }

 /* style the sort indicator */
 QHeaderView::down-arrow {
     image: url(down_arrow.png);
 }

 QHeaderView::up-arrow {
     image: url(up_arrow.png);
 }

Customizing QLineEdit

The frame of a QLineEdit is styled using the The Box Model. To create a line edit with rounded corners, we can set:

 QLineEdit {
     border: 2px solid gray;
     border-radius: 10px;
     padding: 0 8px;
     background: yellow;
     selection-background-color: darkgray;
 }

The password character of line edits that have QLineEdit::Password echo mode can be set using:

 QLineEdit[echoMode="2"] {
     lineedit-password-character: 9679;
 }

The background of a read only QLineEdit can be modified as below:

 QLineEdit:read-only {
     background: lightblue;
 }

Customizing QListView

The background color of alternating rows can be customized using the following style sheet:

 QListView {
     alternate-background-color: yellow;
 }

To provide a special background when you hover over items, we can use the ::item subcontrol. For example,

 QListView {
     show-decoration-selected: 1; /* make the selection span the entire width of the view */
 }

 QListView::item:alternate {
     background: #EEEEEE;
 }

 QListView::item:selected {
     border: 1px solid #6a6ea9;
 }

 QListView::item:selected:!active {
     background: qlineargradient(x1: 0, y1: 0, x2: 0, y2: 1,
                                 stop: 0 #ABAFE5, stop: 1 #8588B2);
 }

 QListView::item:selected:active {
     background: qlineargradient(x1: 0, y1: 0, x2: 0, y2: 1,
                                 stop: 0 #6a6ea9, stop: 1 #888dd9);
 }

 QListView::item:hover {
     background: qlineargradient(x1: 0, y1: 0, x2: 0, y2: 1,
                                 stop: 0 #FAFBFE, stop: 1 #DCDEF1);
 }

Customizing QMainWindow

The separator of a QMainWindow can be styled as follows:

 QMainWindow::separator {
     background: yellow;
     width: 10px; /* when vertical */
     height: 10px; /* when horizontal */
 }

 QMainWindow::separator:hover {
     background: red;
 }

Customizing QMenu

Individual items of a QMenu are styled using the 'item' subcontrol as follows:

 QMenu {
     background-color: #ABABAB; /* sets background of the menu */
     border: 1px solid black;
 }

 QMenu::item {
     /* sets background of menu item. set this to something non-transparent
         if you want menu color and menu item color to be different */
     background-color: transparent;
 }

 QMenu::item:selected { /* when user selects item using mouse or keyboard */
     background-color: #654321;
 }

For a more advanced customization, use a style sheet as follows:

 QMenu {
     background-color: white;
     margin: 2px; /* some spacing around the menu */
 }

 QMenu::item {
     padding: 2px 25px 2px 20px;
     border: 1px solid transparent; /* reserve space for selection border */
 }

 QMenu::item:selected {
     border-color: darkblue;
     background: rgba(100, 100, 100, 150);
 }

 QMenu::icon:checked { /* appearance of a 'checked' icon */
     background: gray;
     border: 1px inset gray;
     position: absolute;
     top: 1px;
     right: 1px;
     bottom: 1px;
     left: 1px;
 }

 QMenu::separator {
     height: 2px;
     background: lightblue;
     margin-left: 10px;
     margin-right: 5px;
 }

 QMenu::indicator {
     width: 13px;
     height: 13px;
 }

 /* non-exclusive indicator = check box style indicator (see QActionGroup::setExclusive) */
 QMenu::indicator:non-exclusive:unchecked {
     image: url(:/images/checkbox_unchecked.png);
 }

 QMenu::indicator:non-exclusive:unchecked:selected {
     image: url(:/images/checkbox_unchecked_hover.png);
 }

 QMenu::indicator:non-exclusive:checked {
     image: url(:/images/checkbox_checked.png);
 }

 QMenu::indicator:non-exclusive:checked:selected {
     image: url(:/images/checkbox_checked_hover.png);
 }

 /* exclusive indicator = radio button style indicator (see QActionGroup::setExclusive) */
 QMenu::indicator:exclusive:unchecked {
     image: url(:/images/radiobutton_unchecked.png);
 }

 QMenu::indicator:exclusive:unchecked:selected {
     image: url(:/images/radiobutton_unchecked_hover.png);
 }

 QMenu::indicator:exclusive:checked {
     image: url(:/images/radiobutton_checked.png);
 }

 QMenu::indicator:exclusive:checked:selected {
     image: url(:/images/radiobutton_checked_hover.png);
 }

Customizing QMenuBar

QMenuBar is styled as follows:

 QMenuBar {
     background-color: qlineargradient(x1:0, y1:0, x2:0, y2:1,
                                       stop:0 lightgray, stop:1 darkgray);
     spacing: 3px; /* spacing between menu bar items */
 }

 QMenuBar::item {
     padding: 1px 4px;
     background: transparent;
     border-radius: 4px;
 }

 QMenuBar::item:selected { /* when selected using mouse or keyboard */
     background: #a8a8a8;
 }

 QMenuBar::item:pressed {
     background: #888888;
 }

Customizing QProgressBar

The QProgressBar's border, chunk, and text-align can be customized using style sheets. However, if one property or sub-control is customized, all the other properties or sub-controls must be customized as well.

For example, we change the border to grey and the chunk to cerulean.

 QProgressBar {
     border: 2px solid grey;
     border-radius: 5px;
 }

 QProgressBar::chunk {
     background-color: #05B8CC;
     width: 20px;
 }

This leaves the text-align, which we customize by positioning the text in the center of the progress bar.

 QProgressBar {
     border: 2px solid grey;
     border-radius: 5px;
     text-align: center;
 }

A margin can be included to obtain more visible chunks.

In the screenshot above, we use a margin of 0.5 pixels.

 QProgressBar::chunk {
     background-color: #CD96CD;
     width: 10px;
     margin: 0.5px;
 }

Customizing QPushButton

A QPushButton is styled as follows:

 QPushButton {
     border: 2px solid #8f8f91;
     border-radius: 6px;
     background-color: qlineargradient(x1: 0, y1: 0, x2: 0, y2: 1,
                                       stop: 0 #f6f7fa, stop: 1 #dadbde);
     min-width: 80px;
 }

 QPushButton:pressed {
     background-color: qlineargradient(x1: 0, y1: 0, x2: 0, y2: 1,
                                       stop: 0 #dadbde, stop: 1 #f6f7fa);
 }

 QPushButton:flat {
     border: none; /* no border for a flat push button */
 }

 QPushButton:default {
     border-color: navy; /* make the default button prominent */
 }

For a QPushButton with a menu, use the ::menu-indicator subcontrol.

 QPushButton:open { /* when the button has its menu open */
     background-color: qlineargradient(x1: 0, y1: 0, x2: 0, y2: 1,
                                       stop: 0 #dadbde, stop: 1 #f6f7fa);
 }

 QPushButton::menu-indicator {
     image: url(menu_indicator.png);
     subcontrol-origin: padding;
     subcontrol-position: bottom right;
 }

 QPushButton::menu-indicator:pressed, QPushButton::menu-indicator:open {
     position: relative;
     top: 2px; left: 2px; /* shift the arrow by 2 px */
 }

Checkable QPushButton have the :checked pseudo state set.

Customizing QRadioButton

The indicator of a QRadioButton can be changed using:

 QRadioButton::indicator {
     width: 13px;
     height: 13px;
 }

 QRadioButton::indicator::unchecked {
     image: url(:/images/radiobutton_unchecked.png);
 }

 QRadioButton::indicator:unchecked:hover {
     image: url(:/images/radiobutton_unchecked_hover.png);
 }

 QRadioButton::indicator:unchecked:pressed {
     image: url(:/images/radiobutton_unchecked_pressed.png);
 }

 QRadioButton::indicator::checked {
     image: url(:/images/radiobutton_checked.png);
 }

 QRadioButton::indicator:checked:hover {
     image: url(:/images/radiobutton_checked_hover.png);
 }

 QRadioButton::indicator:checked:pressed {
     image: url(:/images/radiobutton_checked_pressed.png);
 }

Customizing QScrollBar

The QScrollBar can be styled using its subcontrols like handle, add-line, sub-line, and so on. Note that if one property or sub-control is customized, all the other properties or sub-controls must be customized as well.

The scroll bar above has been styled in aquamarine with a solid grey border.

 QScrollBar:horizontal {
     border: 2px solid grey;
     background: #32CC99;
     height: 15px;
     margin: 0px 20px 0 20px;
 }
 QScrollBar::handle:horizontal {
     background: white;
     min-width: 20px;
 }
 QScrollBar::add-line:horizontal {
     border: 2px solid grey;
     background: #32CC99;
     width: 20px;
     subcontrol-position: right;
     subcontrol-origin: margin;
 }

 QScrollBar::sub-line:horizontal {
     border: 2px solid grey;
     background: #32CC99;
     width: 20px;
     subcontrol-position: left;
     subcontrol-origin: margin;
 }

The left-arrow and right-arrow have a solid grey border with a white background. As an alternative, you could also embed the image of an arrow.

 QScrollBar::left-arrow:horizontal, QScrollBar::right-arrow:horizontal {
     border: 2px solid grey;
     width: 3px;
     height: 3px;
     background: white;
 }

 QScrollBar::add-page:horizontal, QScrollBar::sub-page:horizontal {
     background: none;
 }

If you want the scroll buttons of the scroll bar to be placed together (instead of the edges) like on macOS, you can use the following stylesheet:

 QScrollBar:horizontal {
     border: 2px solid green;
     background: cyan;
     height: 15px;
     margin: 0px 40px 0 0px;
 }

 QScrollBar::handle:horizontal {
     background: gray;
     min-width: 20px;
 }

 QScrollBar::add-line:horizontal {
     background: blue;
     width: 16px;
     subcontrol-position: right;
     subcontrol-origin: margin;
     border: 2px solid black;
 }

 QScrollBar::sub-line:horizontal {
     background: magenta;
     width: 16px;
     subcontrol-position: top right;
     subcontrol-origin: margin;
     border: 2px solid black;
     position: absolute;
     right: 20px;
 }

 QScrollBar::left-arrow:horizontal, QScrollBar::right-arrow:horizontal {
     width: 3px;
     height: 3px;
     background: pink;
 }

 QScrollBar::add-page:horizontal, QScrollBar::sub-page:horizontal {
     background: none;
 }

The scroll bar using the above stylesheet looks like this:

To customize a vertical scroll bar use a style sheet similar to the following:

  QScrollBar:vertical {
      border: 2px solid grey;
      background: #32CC99;
      width: 15px;
      margin: 22px 0 22px 0;
  }
  QScrollBar::handle:vertical {
      background: white;
      min-height: 20px;
  }
  QScrollBar::add-line:vertical {
      border: 2px solid grey;
      background: #32CC99;
      height: 20px;
      subcontrol-position: bottom;
      subcontrol-origin: margin;
  }

  QScrollBar::sub-line:vertical {
      border: 2px solid grey;
      background: #32CC99;
      height: 20px;
      subcontrol-position: top;
      subcontrol-origin: margin;
  }
  QScrollBar::up-arrow:vertical, QScrollBar::down-arrow:vertical {
      border: 2px solid grey;
      width: 3px;
      height: 3px;
      background: white;
  }

  QScrollBar::add-page:vertical, QScrollBar::sub-page:vertical {
      background: none;
  }

Customizing QSizeGrip

QSizeGrip is usually styled by just setting an image.

 QSizeGrip {
     image: url(:/images/sizegrip.png);
     width: 16px;
     height: 16px;
 }

Customizing QSlider

You can style horizontal slider as below:

 QSlider::groove:horizontal {
     border: 1px solid #999999;
     height: 8px; /* the groove expands to the size of the slider by default. by giving it a height, it has a fixed size */
     background: qlineargradient(x1:0, y1:0, x2:0, y2:1, stop:0 #B1B1B1, stop:1 #c4c4c4);
     margin: 2px 0;
 }

 QSlider::handle:horizontal {
     background: qlineargradient(x1:0, y1:0, x2:1, y2:1, stop:0 #b4b4b4, stop:1 #8f8f8f);
     border: 1px solid #5c5c5c;
     width: 18px;
     margin: -2px 0; /* handle is placed by default on the contents rect of the groove. Expand outside the groove */
     border-radius: 3px;
 }

If you want to change the color of the slider parts before and after the handle, you can use the add-page and sub-page subcontrols. For example, for a vertical slider:

 QSlider::groove:vertical {
     background: red;
     position: absolute; /* absolutely position 4px from the left and right of the widget. setting margins on the widget should work too... */
     left: 4px; right: 4px;
 }

 QSlider::handle:vertical {
     height: 10px;
     background: green;
     margin: 0 -4px; /* expand outside the groove */
 }

 QSlider::add-page:vertical {
     background: white;
 }

 QSlider::sub-page:vertical {
     background: pink;
 }

Customizing QSpinBox

QSpinBox can be completely customized as below (the style sheet has commentary inline):

 QSpinBox {
     padding-right: 15px; /* make room for the arrows */
     border-image: url(:/images/frame.png) 4;
     border-width: 3;
 }

 QSpinBox::up-button {
     subcontrol-origin: border;
     subcontrol-position: top right; /* position at the top right corner */

     width: 16px; /* 16 + 2*1px border-width = 15px padding + 3px parent border */
     border-image: url(:/images/spinup.png) 1;
     border-width: 1px;
 }

 QSpinBox::up-button:hover {
     border-image: url(:/images/spinup_hover.png) 1;
 }

 QSpinBox::up-button:pressed {
     border-image: url(:/images/spinup_pressed.png) 1;
 }

 QSpinBox::up-arrow {
     image: url(:/images/up_arrow.png);
     width: 7px;
     height: 7px;
 }

 QSpinBox::up-arrow:disabled, QSpinBox::up-arrow:off { /* off state when value is max */
    image: url(:/images/up_arrow_disabled.png);
 }

 QSpinBox::down-button {
     subcontrol-origin: border;
     subcontrol-position: bottom right; /* position at bottom right corner */

     width: 16px;
     border-image: url(:/images/spindown.png) 1;
     border-width: 1px;
     border-top-width: 0;
 }

 QSpinBox::down-button:hover {
     border-image: url(:/images/spindown_hover.png) 1;
 }

 QSpinBox::down-button:pressed {
     border-image: url(:/images/spindown_pressed.png) 1;
 }

 QSpinBox::down-arrow {
     image: url(:/images/down_arrow.png);
     width: 7px;
     height: 7px;
 }

 QSpinBox::down-arrow:disabled,
 QSpinBox::down-arrow:off { /* off state when value in min */
    image: url(:/images/down_arrow_disabled.png);
 }

Customizing QSplitter

A QSplitter derives from a QFrame and hence can be styled like a QFrame. The grip or the handle is customized using the ::handle subcontrol.

 QSplitter::handle {
     image: url(images/splitter.png);
 }

 QSplitter::handle:horizontal {
     width: 2px;
 }

 QSplitter::handle:vertical {
     height: 2px;
 }

 QSplitter::handle:pressed {
     url(images/splitter_pressed.png);
 }

Customizing QStatusBar

We can provide a background for the status bar and a border for items inside the status bar as follows:

 QStatusBar {
     background: brown;
 }

 QStatusBar::item {
     border: 1px solid red;
     border-radius: 3px;
 }

Note that widgets that have been added to the QStatusBar can be styled using the descendant declaration (i.e)

 QStatusBar QLabel {
     border: 3px solid white;
 }

Customizing QTabWidget and QTabBar

For the screenshot above, we need a stylesheet as follows:

 QTabWidget::pane { /* The tab widget frame */
     border-top: 2px solid #C2C7CB;
 }

 QTabWidget::tab-bar {
     left: 5px; /* move to the right by 5px */
 }

 /* Style the tab using the tab sub-control. Note that
     it reads QTabBar _not_ QTabWidget */
 QTabBar::tab {
     background: qlineargradient(x1: 0, y1: 0, x2: 0, y2: 1,
                                 stop: 0 #E1E1E1, stop: 0.4 #DDDDDD,
                                 stop: 0.5 #D8D8D8, stop: 1.0 #D3D3D3);
     border: 2px solid #C4C4C3;
     border-bottom-color: #C2C7CB; /* same as the pane color */
     border-top-left-radius: 4px;
     border-top-right-radius: 4px;
     min-width: 8ex;
     padding: 2px;
 }

 QTabBar::tab:selected, QTabBar::tab:hover {
     background: qlineargradient(x1: 0, y1: 0, x2: 0, y2: 1,
                                 stop: 0 #fafafa, stop: 0.4 #f4f4f4,
                                 stop: 0.5 #e7e7e7, stop: 1.0 #fafafa);
 }

 QTabBar::tab:selected {
     border-color: #9B9B9B;
     border-bottom-color: #C2C7CB; /* same as pane color */
 }

 QTabBar::tab:!selected {
     margin-top: 2px; /* make non-selected tabs look smaller */
 }

Often we require the tabs to overlap to look like below:

For a tab widget that looks like above, we make use of negative margins. Negative values draw the element closer to its neighbors than it would be by default. The resulting stylesheet looks like this:

 QTabWidget::pane { /* The tab widget frame */
     border-top: 2px solid #C2C7CB;
 }

 QTabWidget::tab-bar {
     left: 5px; /* move to the right by 5px */
 }

 /* Style the tab using the tab sub-control. Note that
     it reads QTabBar _not_ QTabWidget */
 QTabBar::tab {
     background: qlineargradient(x1: 0, y1: 0, x2: 0, y2: 1,
                                 stop: 0 #E1E1E1, stop: 0.4 #DDDDDD,
                                 stop: 0.5 #D8D8D8, stop: 1.0 #D3D3D3);
     border: 2px solid #C4C4C3;
     border-bottom-color: #C2C7CB; /* same as the pane color */
     border-top-left-radius: 4px;
     border-top-right-radius: 4px;
     min-width: 8ex;
     padding: 2px;
 }

 QTabBar::tab:selected, QTabBar::tab:hover {
     background: qlineargradient(x1: 0, y1: 0, x2: 0, y2: 1,
                                 stop: 0 #fafafa, stop: 0.4 #f4f4f4,
                                 stop: 0.5 #e7e7e7, stop: 1.0 #fafafa);
 }

 QTabBar::tab:selected {
     border-color: #9B9B9B;
     border-bottom-color: #C2C7CB; /* same as pane color */
 }

 QTabBar::tab:!selected {
     margin-top: 2px; /* make non-selected tabs look smaller */
 }

 /* make use of negative margins for overlapping tabs */
 QTabBar::tab:selected {
     /* expand/overlap to the left and right by 4px */
     margin-left: -4px;
     margin-right: -4px;
 }

 QTabBar::tab:first:selected {
     margin-left: 0; /* the first selected tab has nothing to overlap with on the left */
 }

 QTabBar::tab:last:selected {
     margin-right: 0; /* the last selected tab has nothing to overlap with on the right */
 }

 QTabBar::tab:only-one {
     margin: 0; /* if there is only one tab, we don't want overlapping margins */
 }

To move the tab bar to the center (as below), we require the following stylesheet:

 QTabWidget::pane { /* The tab widget frame */
     border-top: 2px solid #C2C7CB;
     position: absolute;
     top: -0.5em;
 }

 QTabWidget::tab-bar {
     alignment: center;
 }

 /* Style the tab using the tab sub-control. Note that
     it reads QTabBar _not_ QTabWidget */
 QTabBar::tab {
     background: qlineargradient(x1: 0, y1: 0, x2: 0, y2: 1,
                                 stop: 0 #E1E1E1, stop: 0.4 #DDDDDD,
                                 stop: 0.5 #D8D8D8, stop: 1.0 #D3D3D3);
     border: 2px solid #C4C4C3;
     border-bottom-color: #C2C7CB; /* same as the pane color */
     border-top-left-radius: 4px;
     border-top-right-radius: 4px;
     min-width: 8ex;
     padding: 2px;
 }

 QTabBar::tab:selected, QTabBar::tab:hover {
     background: qlineargradient(x1: 0, y1: 0, x2: 0, y2: 1,
                                 stop: 0 #fafafa, stop: 0.4 #f4f4f4,
                                 stop: 0.5 #e7e7e7, stop: 1.0 #fafafa);
 }

 QTabBar::tab:selected {
     border-color: #9B9B9B;
     border-bottom-color: #C2C7CB; /* same as pane color */
 }

The tear indicator and the scroll buttons can be further customized as follows:

 QTabBar::tear {
     image: url(tear_indicator.png);
 }

 QTabBar::scroller { /* the width of the scroll buttons */
     width: 20px;
 }

 QTabBar QToolButton { /* the scroll buttons are tool buttons */
     border-image: url(scrollbutton.png) 2;
     border-width: 2px;
 }

 QTabBar QToolButton::right-arrow { /* the arrow mark in the tool buttons */
     image: url(rightarrow.png);
 }

 QTabBar QToolButton::left-arrow {
     image: url(leftarrow.png);
 }

Since Qt 4.6 the close button can be customized as follow:

 QTabBar::close-button {
     image: url(close.png)
     subcontrol-position: left;
 }
 QTabBar::close-button:hover {
     image: url(close-hover.png)
 }

Customizing QTableView

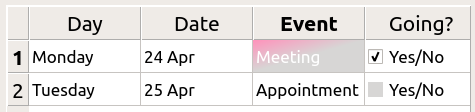

Suppose we'd like our selected item in QTableView to have bubblegum pink fade to white as its background.

This is possible with the selection-background-color property and the syntax required is:

 QTableView {
     selection-background-color: qlineargradient(x1: 0, y1: 0, x2: 0.5, y2: 0.5,
                                 stop: 0 #FF92BB, stop: 1 white);
 }

The corner widget can be customized using the following style sheet

 QTableView QTableCornerButton::section {
     background: red;
     border: 2px outset red;
 }

The QTableView's checkbox indicator can also be customized. In the following snippet the indicator background-color in unchecked state is customized:

 QTableView::indicator:unchecked {
     background-color: #d7d6d5
 }

Customizing QToolBar

The background and the handle of a QToolBar is customized as below:

 QToolBar {
     background: red;
     spacing: 3px; /* spacing between items in the tool bar */
 }

 QToolBar::handle {
     image: url(handle.png);
 }

Customizing QToolBox

The tabs of the QToolBox are customized using the 'tab' subcontrol.

 QToolBox::tab {
     background: qlineargradient(x1: 0, y1: 0, x2: 0, y2: 1,
                                 stop: 0 #E1E1E1, stop: 0.4 #DDDDDD,
                                 stop: 0.5 #D8D8D8, stop: 1.0 #D3D3D3);
     border-radius: 5px;
     color: darkgray;
 }

 QToolBox::tab:selected { /* italicize selected tabs */
     font: italic;
     color: white;
 }

Customizing QToolButton

There are three types of QToolButtons.

The QToolButton has no menu. In this case, the QToolButton is styled exactly like QPushButton. See Customizing QPushButton for an example.
The QToolButton has a menu and has the QToolButton::popupMode set to QToolButton::DelayedPopup or QToolButton::InstantPopup. In this case, the QToolButton is styled exactly like a QPushButton with a menu. See Customizing QPushButton for an example of the usage of the menu-indicator pseudo state.
The QToolButton has its QToolButton::popupMode set to QToolButton::MenuButtonPopup. In this case, we style it as follows:

 QToolButton { /* all types of tool button */
     border: 2px solid #8f8f91;
     border-radius: 6px;
     background-color: qlineargradient(x1: 0, y1: 0, x2: 0, y2: 1,
                                       stop: 0 #f6f7fa, stop: 1 #dadbde);
 }

 QToolButton[popupMode="1"] { /* only for MenuButtonPopup */
     padding-right: 20px; /* make way for the popup button */
 }

 QToolButton:pressed {
     background-color: qlineargradient(x1: 0, y1: 0, x2: 0, y2: 1,
                                       stop: 0 #dadbde, stop: 1 #f6f7fa);
 }

 /* the subcontrols below are used only in the MenuButtonPopup mode */
 QToolButton::menu-button {
     border: 2px solid gray;
     border-top-right-radius: 6px;
     border-bottom-right-radius: 6px;
     /* 16px width + 4px for border = 20px allocated above */
     width: 16px;
 }

 QToolButton::menu-arrow {
     image: url(downarrow.png);
 }

 QToolButton::menu-arrow:open {
     top: 1px; left: 1px; /* shift it a bit */
 }

Customizing QToolTip

QToolTip is customized exactly like a QLabel. In addition, for platforms that support it, the opacity property may be set to adjust the opacity.

For example,

 QToolTip {
     border: 2px solid darkkhaki;
     padding: 5px;
     border-radius: 3px;
     opacity: 200;
 }

Customizing QTreeView

The background color of alternating rows can be customized using the following style sheet:

 QTreeView {
     alternate-background-color: yellow;
 }

To provide a special background when you hover over items, we can use the ::item subcontrol. For example,

 QTreeView {
     show-decoration-selected: 1;
 }

 QTreeView::item {
      border: 1px solid #d9d9d9;
     border-top-color: transparent;
     border-bottom-color: transparent;
 }

 QTreeView::item:hover {
     background: qlineargradient(x1: 0, y1: 0, x2: 0, y2: 1, stop: 0 #e7effd, stop: 1 #cbdaf1);
     border: 1px solid #bfcde4;
 }

 QTreeView::item:selected {
     border: 1px solid #567dbc;
 }

 QTreeView::item:selected:active{
     background: qlineargradient(x1: 0, y1: 0, x2: 0, y2: 1, stop: 0 #6ea1f1, stop: 1 #567dbc);
 }

 QTreeView::item:selected:!active {
     background: qlineargradient(x1: 0, y1: 0, x2: 0, y2: 1, stop: 0 #6b9be8, stop: 1 #577fbf);
 }

The branches of a QTreeView are styled using the ::branch subcontrol. The following stylesheet color codes the various states when drawing a branch.

 QTreeView::branch {
         background: palette(base);
 }

 QTreeView::branch:has-siblings:!adjoins-item {
         background: cyan;
 }

 QTreeView::branch:has-siblings:adjoins-item {
         background: red;
 }

 QTreeView::branch:!has-children:!has-siblings:adjoins-item {
         background: blue;
 }

 QTreeView::branch:closed:has-children:has-siblings {
         background: pink;
 }

 QTreeView::branch:has-children:!has-siblings:closed {
         background: gray;
 }

 QTreeView::branch:open:has-children:has-siblings {
         background: magenta;
 }

 QTreeView::branch:open:has-children:!has-siblings {
         background: green;
 }

Colorful, though it is, a more useful example can be made using the following images:


vline.png	branch-more.png	branch-end.png	branch-closed.png	branch-open.png

 QTreeView::branch:has-siblings:!adjoins-item {
     border-image: url(vline.png) 0;
 }

 QTreeView::branch:has-siblings:adjoins-item {
     border-image: url(branch-more.png) 0;
 }

 QTreeView::branch:!has-children:!has-siblings:adjoins-item {
     border-image: url(branch-end.png) 0;
 }

 QTreeView::branch:has-children:!has-siblings:closed,
 QTreeView::branch:closed:has-children:has-siblings {
         border-image: none;
         image: url(branch-closed.png);
 }

 QTreeView::branch:open:has-children:!has-siblings,
 QTreeView::branch:open:has-children:has-siblings  {
         border-image: none;
         image: url(branch-open.png);
 }

The resulting tree view looks like this:

Common Mistakes

This section lists some common mistakes when using stylesheets.

QPushButton and images

When styling a QPushButton, it is often desirable to use an image as the button graphic. It is common to try the background-image property, but this has a number of drawbacks: For instance, the background will often appear hidden behind the button decoration, because it is not considered a background. In addition, if the button is resized, the entire background will be stretched or tiled, which does not always look good.

It is better to use the border-image property, as it will always display the image, regardless of the background (you can combine it with a background if it has alpha values in it), and it has special settings to deal with button resizing.

Consider the following snippet:

         QPushButton {
             color: grey;
             border-image: url(/home/kamlie/code/button.png) 3 10 3 10;
             border-top: 3px transparent;
             border-bottom: 3px transparent;
             border-right: 10px transparent;
             border-left: 10px transparent;
         }

This will produce a button looking like this:

The numbers after the url gives the top, right, bottom and left number of pixels, respectively. These numbers correspond to the border and should not stretch when the size changes. Whenever you resize the button, the middle part of the image will stretch in both directions, while the pixels specified in the stylesheet will not. This makes the borders of the button look more natural, like this:

With borders

Without borders

See also Supported HTML Subset and QStyle.

Qt Style Sheets Reference

Contents

Qt Style Sheets Examples

Style Sheet Usage

Customizing the Foreground and Background Colors

Customizing Using Dynamic Properties

Customizing a QPushButton Using the Box Model

Customizing the QPushButton's Menu Indicator Sub-Control

Complex Selector Example

Customizing Specific Widgets

Customizing QAbstractScrollArea

Customizing QCheckBox

Customizing QComboBox

Customizing QDockWidget

Customizing QFrame

Customizing QGroupBox

Customizing QHeaderView

Customizing QLineEdit

Customizing QListView

Customizing QMainWindow

Customizing QMenu

Customizing QMenuBar

Customizing QProgressBar

Customizing QPushButton

Customizing QRadioButton

Customizing QScrollBar

Customizing QSizeGrip

Customizing QSlider

Customizing QSpinBox

Customizing QSplitter

Customizing QStatusBar

Customizing QTabWidget and QTabBar

Customizing QTableView

Customizing QToolBar

Customizing QToolBox

Customizing QToolButton

Customizing QToolTip

Customizing QTreeView

Common Mistakes

QPushButton and images
